20821 - Toro 48cm Recycler Walk-Behind Mower (SN: 079000001 - 079999999) (1997) HOUSING ASSEMBLY Parts Diagram

48cm Recycler Walk-Behind Mower

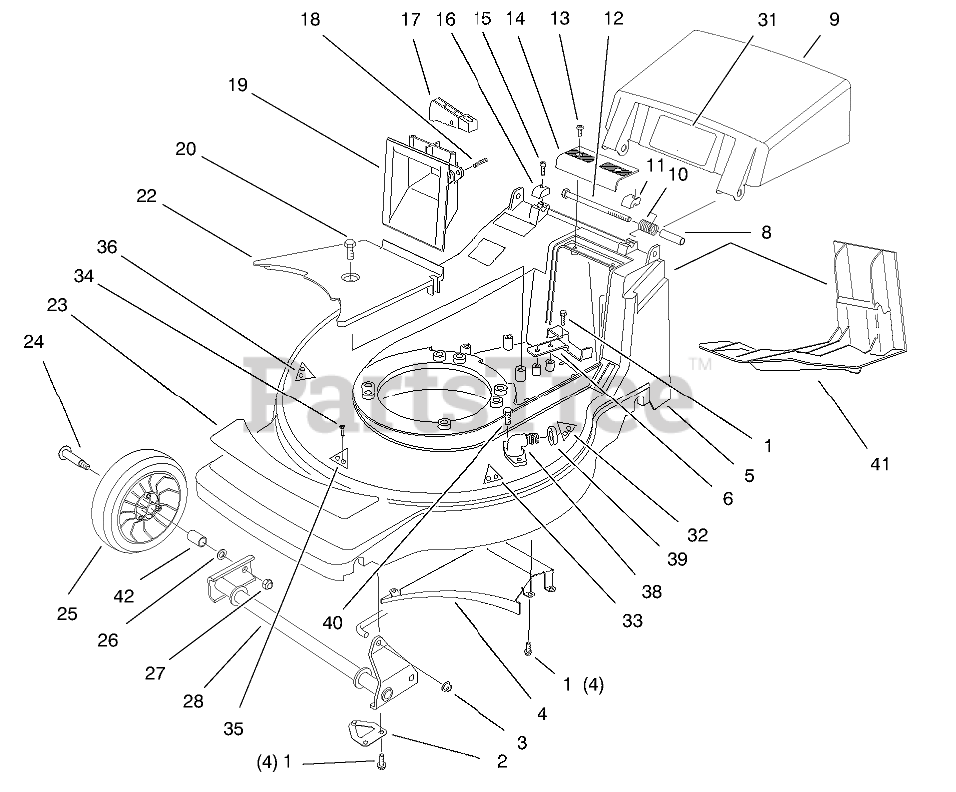

HOUSING ASSEMBLY Parts Diagram

  • Title
1

Toro Part# 32144-4

SCREW-HWH
Usually ships in 1 day

$

$1.11

0

2

Toro Part# 71-8830

SHAFT RETAINER ASM
Usually ships in 5 to 8 days

$

$5.79

0

3
Usually ships in 1 day

$

$0.82

0

4

Toro Part# 71-7990

Ramp-Discharge
(Superseded to 71-7990-03)
Usually ships same day

Not available

$

$

5

Toro Part# 95-6134

Housing Assembly (Incl. Ref.# 23, 32-40)
Usually ships in 5 to 8 days

$

$657.13

0

6

Toro Part# 71-7890

REAR BELT GUIDE
Usually ships same day

Not available

$

$

8

Toro Part# 71-8580

SPACER-DOOR
Usually ships in 5 to 8 days

$

$1.81

0

9

Toro Part# 71-9800

Door Discharge
Usually ships same day

Currently unavailable

$

$

10

Toro Part# 71-9840

SPRING-DOOR
Usually ships in 5 to 8 days

$

$9.94

0

11

Toro Part# 71-7900

CAP-HINGE BOLT, LH
Usually ships in 5 to 8 days

$

$3.90

0

12
Usually ships in 5 to 8 days

$

$2.56

0

13

Toro Part# 32144-97

SCREW-PPH, PLASTITE
Usually ships in 1 day

$

$0.57

0

14

Toro Part# 71-7860

GRIP-UPPER
Usually ships same day

Not available

$

$

15

Toro Part# 65-5210

SCREW-HSH
Usually ships in 5 to 8 days

$

$3.47

0

16

Toro Part# 71-7910

CAP-HINGE BOLT, RH
Usually ships in 5 to 8 days

$

$3.90

0

17

Toro Part# 71-7930

TRIGGER - HOC
Usually ships in 5 to 8 days

$

$8.01

0

18

Toro Part# 3284-5

PIN-SPIRAL
Usually ships same day

Not available

$

$

19

Toro Part# 71-7870

GRIP - LOWER
Usually ships same day

Not available

$

$

20

Toro Part# 32144-70

SCREW-HWHTF
Usually ships in 1 day

$

$1.81

0

22

Toro Part# 71-7920

BELT COVER
Usually ships same day

Not available

$

$

23

Toro Part# 92-7863

DECAL - DECK
Usually ships same day

Not available

$

$

24

Toro Part# 27-6230

BOLT-WHEEL
Usually ships in 1 day

$

$6.59

0

25

Toro Part# 46-1113

7 " WHEEL/TIRE ASM
Usually ships same day

Not available

$

$

26
Usually ships in 1 day

$

$1.38

0

27
Usually ships in 1 day

$

$2.90

0

28

Toro Part# 71-7820

FRONT PIVOT WA
Usually ships in 5 to 8 days

$

$164.04

0

31

Toro Part# 93-4105

DECAL-DANGER
(Superseded to 112-8759)
Usually ships in 5 to 8 days

$

$11.71

0

32
Usually ships in 5 to 8 days

$

$24.26

0

33
Usually ships in 5 to 8 days

$

$32.52

0

34
Usually ships in 1 day

$

$0.82

0

35
Usually ships in 5 to 8 days

$

$24.26

0

36
Usually ships same day

Not available

$

$

38

Toro Part# 95-2747

FITTING-WASHOUT
(Superseded to 133-9289)
Usually ships in 1 day

$

$4.79

0

39
Usually ships in 1 day

$

$2.15

0

40

Toro Part# 46-6811

SCREW-HWH
Usually ships in 1 day

$

$2.23

0

41

Toro Part# 71-9990

DISCHARGE PLUG
Usually ships same day

Not available

$

$

42
Usually ships in 1 day

$

$2.23

0
