20825 - Toro Walk-Behind Mower, Electric (SN: 001000001 - 001999999) (1981)

Walk-Behind Mower, Electric

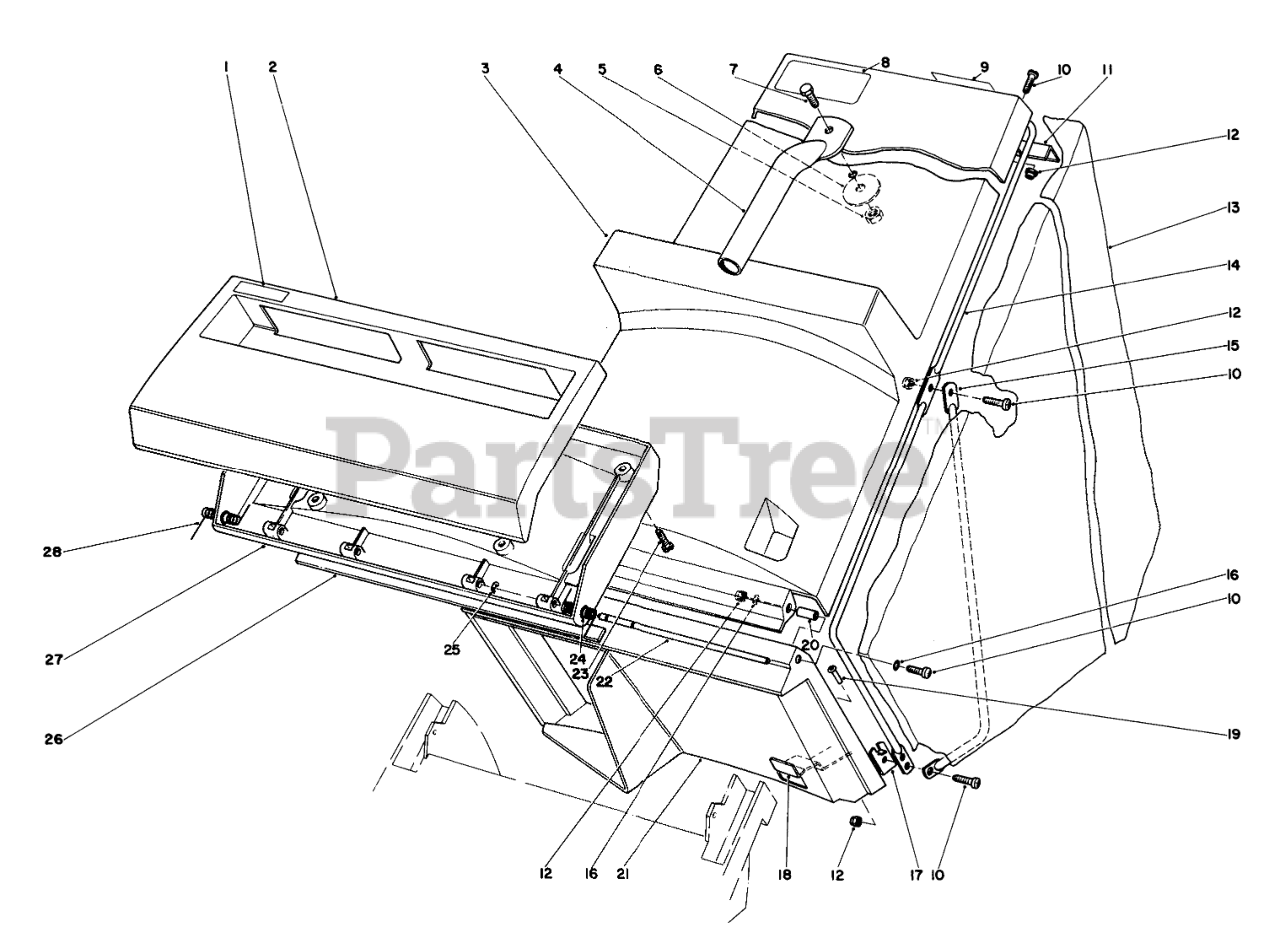

20825 - Toro Walk-Behind Mower, Electric (SN: 001000001 - 001999999) (1981) > Parts Diagrams (5) > GRASS BAG ASSEMBLY

  • Title
46-1530

1

Decal-Danger

Part# 46-1530

OEM Warranty Repair Part for Toro

Not available

46-0970

2

Door Half-Outside

Part# 46-0970

OEM Warranty Repair Part for Toro

Not available

46-0240

3

HOUSING-GRASS CATCHER

Part# 46-0240

OEM Warranty Repair Part for Toro

Not available

46-0210

4

Handle-Grass Catcher

Part# 46-0210

OEM Warranty Repair Part for Toro

Not available

46-0400

5

M6 X 1 LOCKNUT

Part# 46-0400

OEM Warranty Repair Part for Toro

Not available

3256-55

6

WASHER-FLAT

Part# 3256-55

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $3.34

46-0050

7

M6 X 1 HEX HD CAPSCRW

Part# 46-0050

OEM Warranty Repair Part for Toro

Not available

460800

8

Decal-Logo

Part# 460800

OEM Warranty Repair Part for Toro

Currently unavailable

46-0720

9

Decal-Waming

Part# 46-0720

OEM Warranty Repair Part for Toro

Not available

46-0670

10

SCREW-PPH

Part# 46-0670

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $1.39

46-1120

11

Hinge-Bracket

Part# 46-1120

OEM Warranty Repair Part for Toro

Not available

46-0430

12

NUT-LOCK

Part# 46-0430

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $0.59

46-0510

13

BAG ASM

Part# 46-0510

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $178.02

46-0170

14

Bag Support-Upper

Part# 46-0170

OEM Warranty Repair Part for Toro

Not available

46-0180

15

Bag Support-Lower

Part# 46-0180

OEM Warranty Repair Part for Toro

Not available

3256-53

16

WASHER-FLAT

Part# 3256-53

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $2.26

46-0220

17

Bag Support-Front

Part# 46-0220

OEM Warranty Repair Part for Toro

Not available

46-1690

18

DOOR LATCH

Part# 46-1690

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $19.43

3290-365

19

Rivet

Part# 3290-365

OEM Warranty Repair Part for Toro

Currently unavailable

46-0480

20

Spacer

Part# 46-0480

OEM Warranty Repair Part for Toro

Not available

46-0420

21

DOOR GRASS CATCHER

Part# 46-0420

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $71.35

46-0990

22

Pin-Door Hinge

Part# 46-0990

OEM Warranty Repair Part for Toro

Not available

32144-52

23

SCREW-PPH

Part# 32144-52

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $1.67

46-1010

24

LH TORSION SPRING

Part# 46-1010

OEM Warranty Repair Part for Toro

Not available

32151-67

25

EXT RET E-RING

Part# 32151-67

OEM Warranty Repair Part for Toro

Not available

46-0680

26

DOOR SEAL

Part# 46-0680

OEM Warranty Repair Part for Toro

Not available

46-0980

27

DOOR HALF

Part# 46-0980

OEM Warranty Repair Part for Toro

Not available

46-1020

28

TORSION SPRING RH

Part# 46-1020

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $34.53
