20825 - Toro Walk-Behind Mower, Electric (SN: 001000001 - 001999999) (1981)

Walk-Behind Mower, Electric

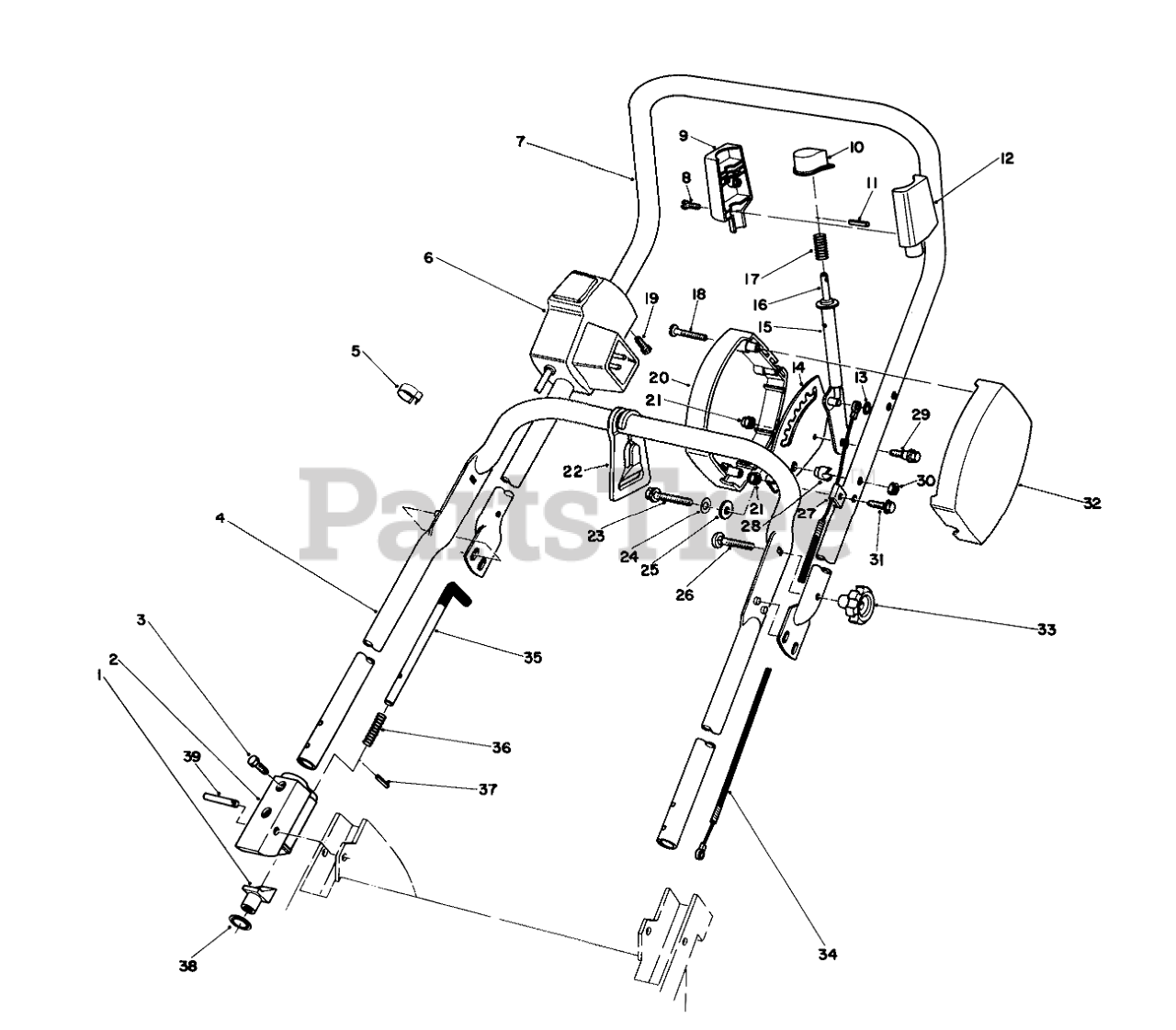

20825 - Toro Walk-Behind Mower, Electric (SN: 001000001 - 001999999) (1981) > Parts Diagrams (5) > HANDLE ASSEMBLY

  • Title
46-1180

1

Bushing-Insulated

Part# 46-1180

OEM Warranty Repair Part for Toro

Not available

46-0460

2

Block-Handle Mounting

Part# 46-0460

OEM Warranty Repair Part for Toro

Not available

32144-53

3

SCREW-SHWH, THREAD FORMING

Part# 32144-53

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.34

46-1340

4

Lower Handle

Part# 46-1340

OEM Warranty Repair Part for Toro

Not available

218-525

5

Clip

Part# 218-525

OEM Warranty Repair Part for Toro

Not available

46-0820

6

Switch On-Off

Part# 46-0820

OEM Warranty Repair Part for Toro

Not available

46-0340

7

Upper Handle

Part# 46-0340

OEM Warranty Repair Part for Toro

Not available

32144-50

8

Screw-Pan Head

Part# 32144-50

OEM Warranty Repair Part for Toro

Not available

46-1070

9

Grip-Right Hand

Part# 46-1070

OEM Warranty Repair Part for Toro

Not available

46-1060

10

Button-Height of Cut

Part# 46-1060

OEM Warranty Repair Part for Toro

Not available

32121-50

11

PIN-SPRING

Part# 32121-50

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.36

46-1080

12

Grip-Left Hand

Part# 46-1080

OEM Warranty Repair Part for Toro

Not available

32112-5

13

PUSH NUT

Part# 32112-5

OEM Warranty Repair Part for Toro

Not available

46-0590

14

Bracket-Detent

Part# 46-0590

OEM Warranty Repair Part for Toro

Not available

46-1480

15

Handle-Height fo Cut

Part# 46-1480

OEM Warranty Repair Part for Toro

Not available

46-0920

16

Rod-Detent

Part# 46-0920

OEM Warranty Repair Part for Toro

Not available

46-0740

17

COMPRESSION SPRING O

Part# 46-0740

OEM Warranty Repair Part for Toro

Not available

32144-51

18

8 X1.25 SELF TAP SCRW

Part# 32144-51

OEM Warranty Repair Part for Toro

Not available

32144-52

19

SCREW-PPH

Part# 32144-52

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $1.67

46-0610

20

Cover-Control R.H.

Part# 46-0610

OEM Warranty Repair Part for Toro

Not available

46-0400

21

M6 X 1 LOCKNUT

Part# 46-0400

OEM Warranty Repair Part for Toro

Not available

46-0950

22

Retainer-Cord

Part# 46-0950

OEM Warranty Repair Part for Toro

Not available

46-0030

23

Capscrew

Part# 46-0030

OEM Warranty Repair Part for Toro

Not available

3256-23

24

WASHER-PLAIN

Part# 3256-23

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.67

46-0700

25

Washer-Insulator

Part# 46-0700

OEM Warranty Repair Part for Toro

Not available

3230-21

26

SCREW-CARR

Part# 3230-21

OEM Warranty Repair Part for Toro

Not available

46-1270

27

Clamp-Cable

Part# 46-1270

OEM Warranty Repair Part for Toro

Not available

46-1100

28

Isolator-Control

Part# 46-1100

OEM Warranty Repair Part for Toro

Not available

46-0760

29

Shoulder Screw

Part# 46-0760

OEM Warranty Repair Part for Toro

Not available

46-0330

30

NUT-LOCK

Part# 46-0330

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $2.64

46-0051

31

Screw-Cap Hex. Hd.

Part# 46-0051

OEM Warranty Repair Part for Toro

Not available

46-0620

32

Cover-Control L.H.

Part# 46-0620

OEM Warranty Repair Part for Toro

Not available

194050

33

Horn

Part# 194050

OEM Warranty Repair Part for Toro

Currently unavailable

46-0581

34

UPPER CABLE

Part# 46-0581

OEM Warranty Repair Part for Toro

Not available

46-0940

35

Rod-Latch

Part# 46-0940

OEM Warranty Repair Part for Toro

Not available

46-0560

36

COMPRESSION SPRING

Part# 46-0560

OEM Warranty Repair Part for Toro

Not available

32121-107

37

PIN-ROLL, SLOTTED

Part# 32121-107

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $1.83

321124

38

Speed Nut-Push On

Part# 321124

OEM Warranty Repair Part for Toro

Currently unavailable

46-0470

39

Pin-Handle Mounting

Part# 46-0470

OEM Warranty Repair Part for Toro

Not available
