20825 - Toro Walk-Behind Mower, Electric (SN: 001000001 - 001999999) (1981)

Walk-Behind Mower, Electric

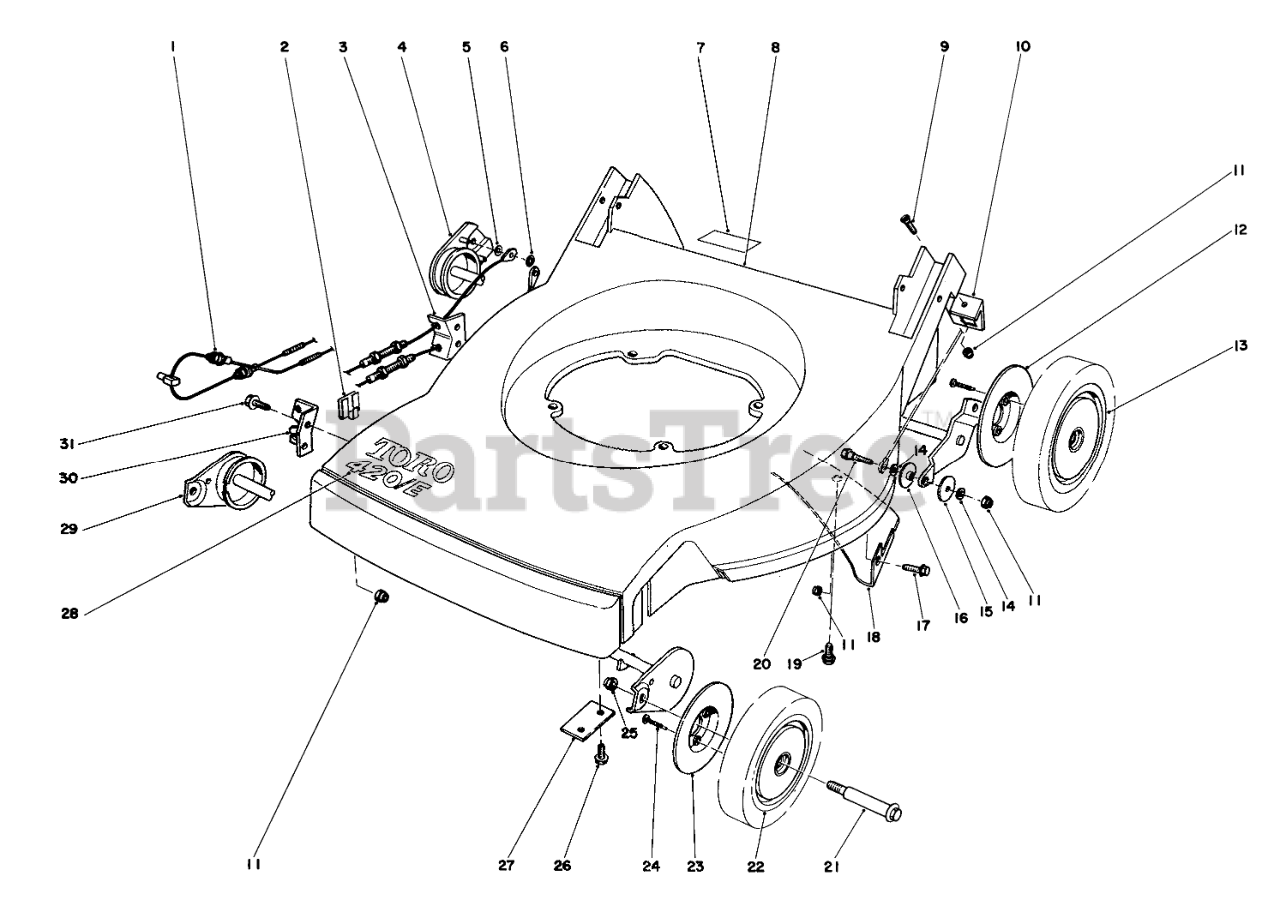

20825 - Toro Walk-Behind Mower, Electric (SN: 001000001 - 001999999) (1981) > Parts Diagrams (5) > HOUSING ASSEMBLY

  • Title
46-1510

1

HOC CABLE

Part# 46-1510

OEM Warranty Repair Part for Toro

Currently unavailable

3290-431

2

Clip-Speed

Part# 3290-431

OEM Warranty Repair Part for Toro

Not available

46-0350

3

Bracket-Rear Conduit

Part# 46-0350

OEM Warranty Repair Part for Toro

Not available

46-1410

4

REAR AXLE WA

Part# 46-1410

OEM Warranty Repair Part for Toro

Not available

3256-1

5

WASHER-FLAT

Part# 3256-1

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.78

32112-5

6

PUSH NUT

Part# 32112-5

OEM Warranty Repair Part for Toro

Not available

46-1620

7

Decal Danger

Part# 46-1620

OEM Warranty Repair Part for Toro

Not available

46-0011

8

Housing-42 cm

Part# 46-0011

OEM Warranty Repair Part for Toro

Not available

46-0060

9

Screw-Flat Head Machine

Part# 46-0060

OEM Warranty Repair Part for Toro

Not available

46-0600

10

CONTROL CABLE BRKT

Part# 46-0600

OEM Warranty Repair Part for Toro

Not available

46-0400

11

M6 X 1 LOCKNUT

Part# 46-0400

OEM Warranty Repair Part for Toro

Not available

46-1900

12

Wheel Cover Inner

Part# 46-1900

OEM Warranty Repair Part for Toro

Not available

11-1019

13

Wheel and Tire Assembly 8"

Part# 11-1019 (Superseded to 46-1140)

OEM Warranty Repair Part for Toro

Not available

3256-16

14

WASHER-FLAT

Part# 3256-16

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.48

46-1670

15

Washer-Special

Part# 46-1670

OEM Warranty Repair Part for Toro

Not available

46-1680

16

Bushing-Special

Part# 46-1680

OEM Warranty Repair Part for Toro

Not available

46-0052

17

Capscrew-Hex Washer Head

Part# 46-0052

OEM Warranty Repair Part for Toro

Currently unavailable

46-1580

18

Shield-Deck

Part# 46-1580

OEM Warranty Repair Part for Toro

Not available

32144-12

19

Screw

Part# 32144-12

OEM Warranty Repair Part for Toro

Not available

46-1590

20

Shoulder Screw-Cable

Part# 46-1590

OEM Warranty Repair Part for Toro

Not available

46-0690

21

Wheel Bolt

Part# 46-0690

OEM Warranty Repair Part for Toro

Not available

11-1009

22

Wheel and Tire Assembly 7"

Part# 11-1009

OEM Warranty Repair Part for Toro

Not available

46-1901

23

Wheel Cover Inner

Part# 46-1901

OEM Warranty Repair Part for Toro

Currently unavailable

27-6260

24

SCREW-DRIVE

Part# 27-6260

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.11

46-0320

25

USE 33025-00

Part# 46-0320

OEM Warranty Repair Part for Toro

Not available

46-0790

26

THO FORM SCREW M6 X 1

Part# 46-0790

OEM Warranty Repair Part for Toro

Not available

46-0270

27

Plate-Axle Mounting

Part# 46-0270

OEM Warranty Repair Part for Toro

Not available

46-1030

28

Decal-Logo

Part# 46-1030

OEM Warranty Repair Part for Toro

Not available

46-1440

29

Axle-Front

Part# 46-1440

OEM Warranty Repair Part for Toro

Not available

46-0360

30

Bracket-Front Conduit

Part# 46-0360

OEM Warranty Repair Part for Toro

Not available

46-0050

31

M6 X 1 HEX HD CAPSCRW

Part# 46-0050

OEM Warranty Repair Part for Toro

Not available
