20825 - Toro Walk-Behind Mower, Electric (SN: 001000001 - 001999999) (1981)

Walk-Behind Mower, Electric

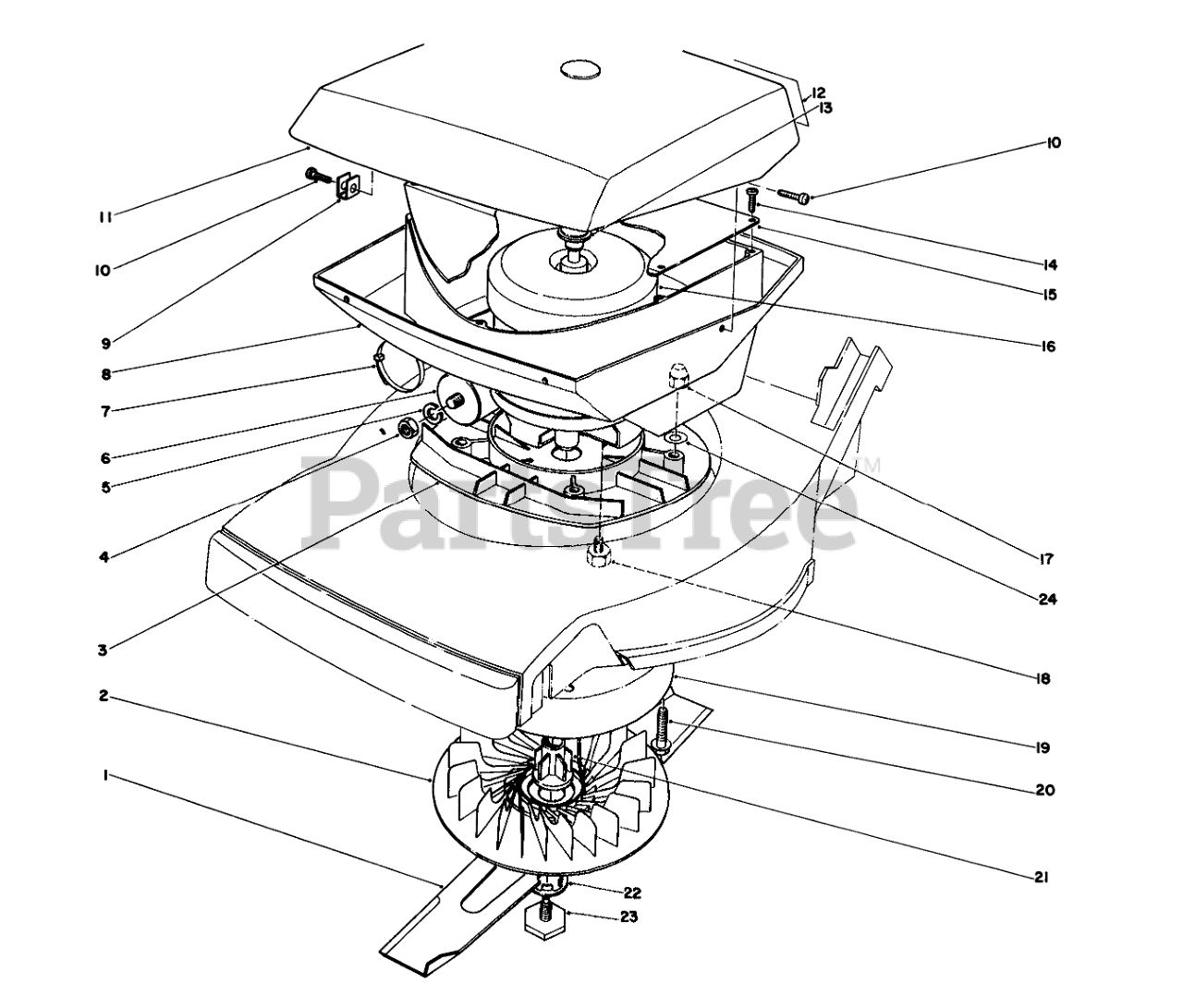

20825 - Toro Walk-Behind Mower, Electric (SN: 001000001 - 001999999) (1981) > Parts Diagrams (5) > MOTOR AND SHROUD ASSEMBLY

  • Title
46-0080

1

42 CM BLADE

Part# 46-0080

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $50.98

46-1550

2

Fan

Part# 46-1550

OEM Warranty Repair Part for Toro

Not available

46-0780

3

Plate-Motor Mount

Part# 46-0780

OEM Warranty Repair Part for Toro

Not available

4

Nut-12MM

Part#

Not available

3252-2

5

10-24 X 1/2 FIL HD MS

Part# 3252-2

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.27

218-527

6

Capacitor

Part# 218-527

OEM Warranty Repair Part for Toro

Not available

3290-378

7

TIE-CABLE

Part# 3290-378

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.71

46-0290

8

Shroud-Lower Electric

Part# 46-0290

OEM Warranty Repair Part for Toro

Not available

218-519

9

Clip-"U" Type

Part# 218-519

OEM Warranty Repair Part for Toro

Not available

46-0670

10

SCREW-PPH

Part# 46-0670

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $1.39

46-1520

11

Shroud Assembly-Upper Electric

Part# 46-1520

OEM Warranty Repair Part for Toro

Not available

46-1710

12

Decal-Warning

Part# 46-1710

OEM Warranty Repair Part for Toro

Not available

46-1790

Decal-Warning (English)

Part# 46-1790

Note: Not illustrated

OEM Warranty Repair Part for Toro

Not available

46-1760

Decal-Warning (Dutch)

Part# 46-1760

Note: Not illustrated

OEM Warranty Repair Part for Toro

Not available

46-1770

Decal-Warning (French)

Part# 46-1770

Note: Not illustrated

OEM Warranty Repair Part for Toro

Not available

46-1780

GERMAN WARNING DECAL

Part# 46-1780

OEM Warranty Repair Part for Toro

Not available

46-1290

13

Rotation Indicator

Part# 46-1290

OEM Warranty Repair Part for Toro

Not available

32144-52

14

SCREW-PPH

Part# 32144-52

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $1.67

46-1220

15

Plate-Air Baffle

Part# 46-1220

OEM Warranty Repair Part for Toro

Not available

46-0750

16

Motor (Incl. Ref. #4-7)

Part# 46-0750

OEM Warranty Repair Part for Toro

Not available

46-1630

17

INSULATED NUT

Part# 46-1630

OEM Warranty Repair Part for Toro

Not available

46-0770

18

Screw-Insulated

Part# 46-0770

OEM Warranty Repair Part for Toro

Not available

46-1560

19

Fan Shroud

Part# 46-1560

OEM Warranty Repair Part for Toro

Not available

46-0040

20

Capscrew-Hex Washer Head

Part# 46-0040

OEM Warranty Repair Part for Toro

Not available

46-1240

21

Hub-Blade

Part# 46-1240

OEM Warranty Repair Part for Toro

Not available

46-1230

22

Retainer-Plate

Part# 46-1230

OEM Warranty Repair Part for Toro

Not available

46-0840

23

Screw-Blade

Part# 46-0840

OEM Warranty Repair Part for Toro

Not available

46-1940

24

Shim

Part# 46-1940

OEM Warranty Repair Part for Toro

Not available

46-0880

Wrench-Blade Screw

Part# 46-0880

Note: Not illustrated

OEM Warranty Repair Part for Toro

Not available

11-0919

Loose Parts

Part# 11-0919

Note: Not illustrated

OEM Warranty Repair Part for Toro

Currently unavailable
