20827 - Toro 48cm Recycler Walk-Behind Mower (SN: 200000001 - 200999999) (2000) ENGINE BRIGGS & STRATTON MODEL 123607-0153-E1 Parts Diagram

48cm Recycler Walk-Behind Mower

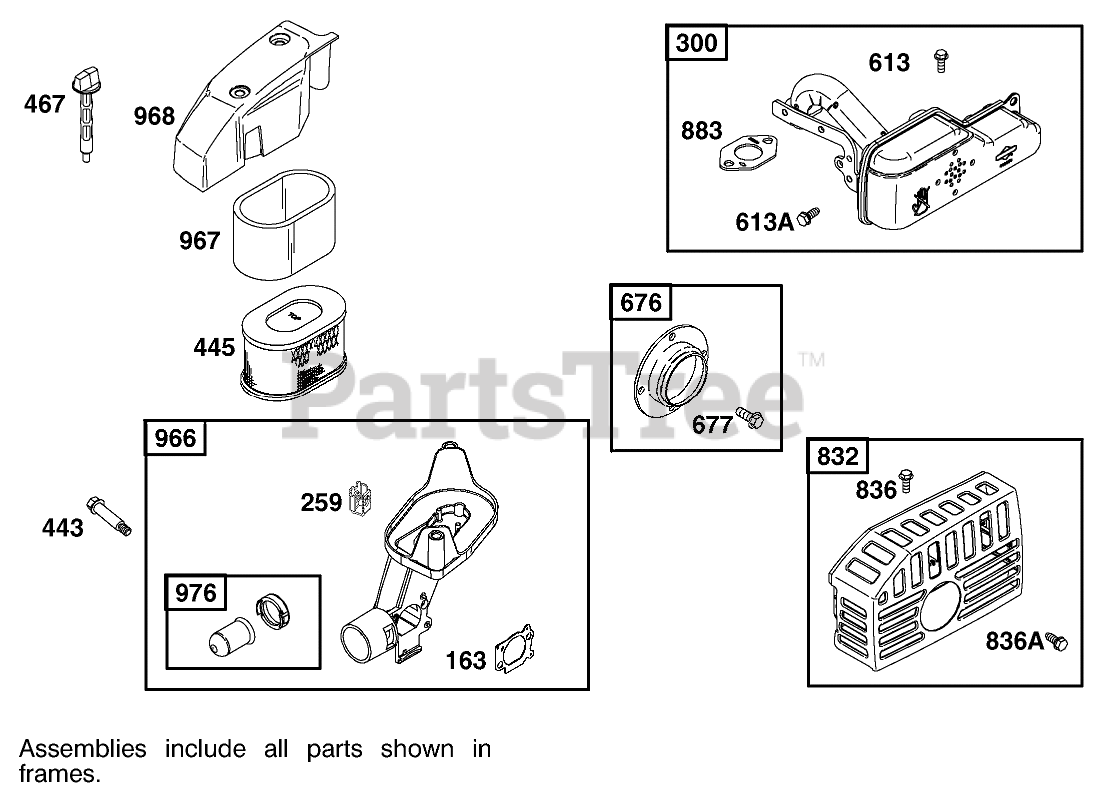

ENGINE BRIGGS & STRATTON MODEL 123607-0153-E1 Parts Diagram

  • Title

467

Toro 100-9108

KNOB-AIR CLEANER
(Superseded to 98-9208)

$

$

Not available

677

Toro 100-9148

SCREW

$

$

Not available

836

Toro 94-1674

SCREW-HH
(Superseded to 99-0999)

$8.99

$

Usually ships in 3-6 days

0

968

Toro 98-9207

COVER-CLEANER, AIR

$

$

Not available

445

Toro 98-9212

ELEMENT-FILTER, AIR

$38.99

$

In Stock, only 2 left!

0

883

Toro 99-0947

GASKET-EXHAUST

Note: Included in Valve Gasket Set-See Ref. 1095

$

$

Not available

883

Toro 99-0947

GASKET-EXHAUST

Note: Included in Engine Gasket Set-See Ref. 358

$

$

Not available

163

Toro 99-0976

GASKET-CLEANER, AIR

Note: Included in Carburetor Gasket Set-See Ref. 977

$4.49

$

In Stock, Qty 17

0

163

Toro 99-0976

GASKET-CLEANER, AIR

Note: Included in Valve Gasket Set-See Ref. 1095

$4.49

$

In Stock, Qty 17

0

163

Toro 99-0976

GASKET-CLEANER, AIR

Note: Included in Engine Gasket Set-See Ref. 358

$4.49

$

In Stock, Qty 17

0

966

Toro 99-0979

BASE-CLEANER, AIR

$

$

Not available

613

Toro 99-1047

SCREW-HH

$

$

Not available

836A

Toro 99-0999

SCREW-HH

$8.99

$

Usually ships in 3-6 days

0

300

Toro 99-0995

MUFFLER-EXHAUST

$

$

Not available

259

Toro 99-0984

GROMMET

$

$

Not available

967

Toro 99-0989

WRAP-FOAM, PRE-FILTER

$5.49

$

In Stock, Qty 20+

0

676

Toro 99-1044

DEFLECTOR-MUFFLER

$

$

Not available

832

Toro 98-9206

GUARD-MUFFLER

$154.99

$

Usually ships in 3-6 days

0

613A

Toro 99-0941

SCREW-HH

$

$

Not available

443

Toro 99-0990

SCREW-HEX

$

$

Not available

976

Toro 99-0991

PRIMER

$4.49

$

In Stock, Qty 20+

0
