20828 - Toro 48cm Recycler Walk-Behind Mower (SN: 210000001 - 210001000) (2001) Cylinder Assembly Parts Diagram

48cm Recycler Walk-Behind Mower

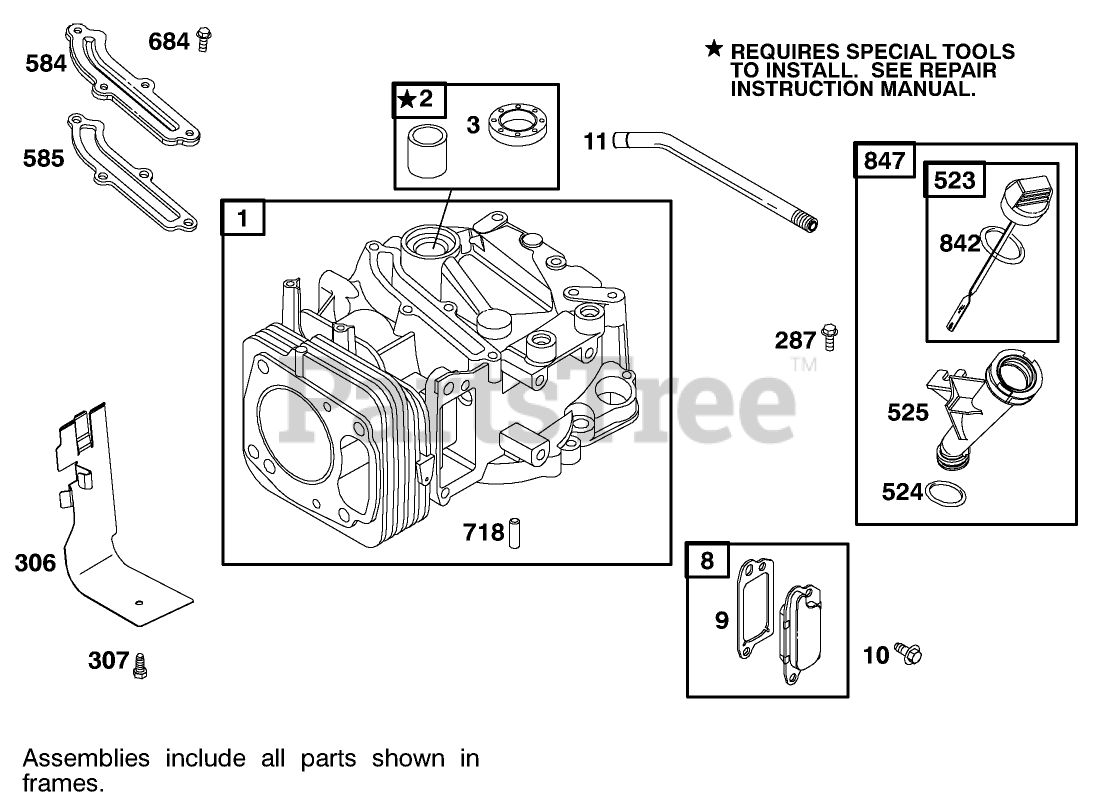

Cylinder Assembly Parts Diagram

  • Title

1

Toro 99-0900

CYLINDER ASM

$700.99

$

Usually ships in 3-6 days

0

2

Toro 99-0911

BUSHING

$

$

Not available

3

Toro 77-9060

DISCONTINUED

Note: Included in Engine Gasket Set-See Ref. 358

$

$

Not available

8

Toro 77-9260

BREATHER ASM

$

$

Not available

9

Toro 99-0913

GASKET-BREATHER

Note: Included in Engine Gasket Set-See Ref. 358

$5.49

$

Usually ships in 3-6 days

0

10

Toro 99-0914

SCREW-HH

$

$

Not available

11

Toro 99-0915

DISCONTINUED

$

$

Not available

523

Toro 100-9146

DISCONTINUED
(Superseded to 77-7260)

$

$

Not available

306

Toro 99-0919

SHIELD-CYLINDER

$

$

Not available

842

Toro 77-7270

O-RING

Note: Included in Engine Gasket Set-See Ref. 358

$12.99

$

Usually ships in 3-6 days

0

524

Toro 77-7300

O-RING

Note: Included in Engine Gasket Set-See Ref. 358

$5.49

$

In Stock, Qty 20+

0

307

Toro 99-0920

SCREW-HH

$

$

Not available

585

Toro 77-7410

See Supercession: 99-0923
(Superseded to 99-0923)

Note: Included in Engine Gasket Set-See Ref. 358

$15.99

$

Usually ships in 3-6 days

0

525

Toro 99-0906

DISCONTINUED

$

$

Not available

718

Toro 77-7600

DISCONTINUED

$

$

Not available

584

Toro 99-0922

COVER-BREA PASSAGE

$

$

Not available

847

Toro 98-9209

DIPSTICK TUBE ASM

$55.99

$

Usually ships in 3-6 days

0

684

Toro 99-0920

SCREW-HH

$

$

Not available

287

Toro 99-0927

SCREW-HH

$8.49

$

Usually ships in 3-6 days

0
