20829 - Toro 48cm Recycler Walk-Behind Mower (SN: 210000001 - 210999999) (2001) CYLINDER ASSEMBLY Parts Diagram

48cm Recycler Walk-Behind Mower

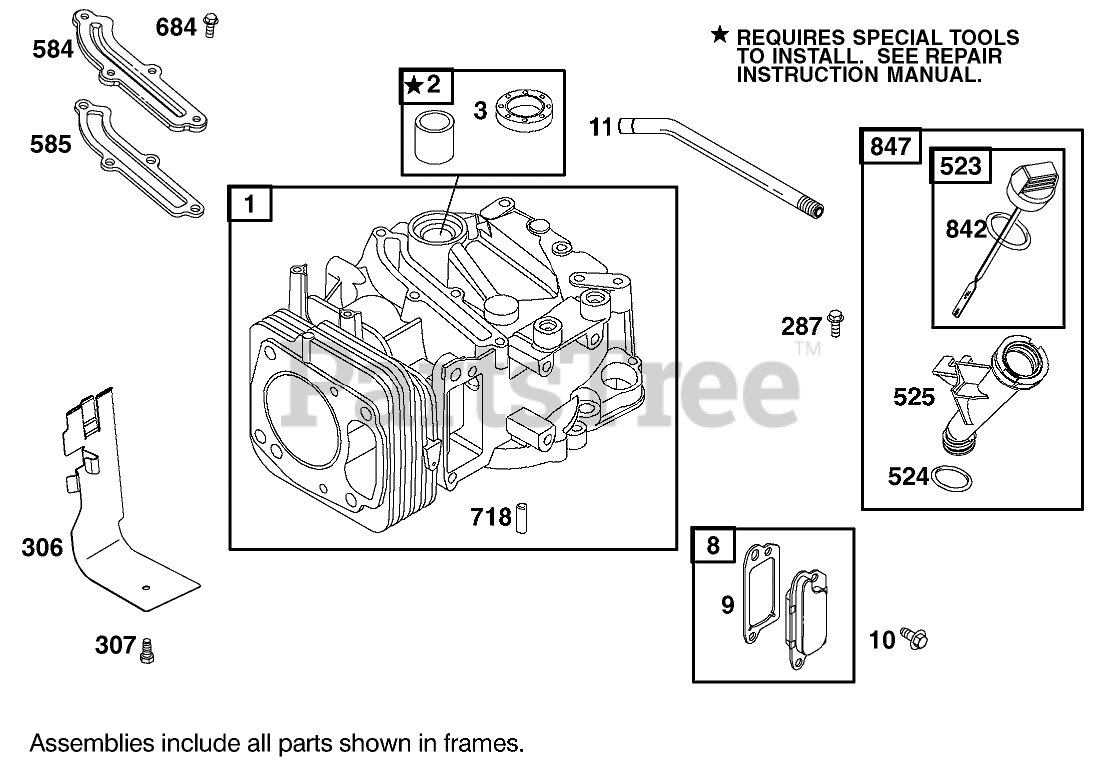

CYLINDER ASSEMBLY Parts Diagram

  • Title
1

Toro Part# 99-0900

CYLINDER ASM
Usually ships in 5 to 8 days

$

$438.97

0

2
Usually ships same day

Not available

$

$

3

Toro Part# 77-9060

SEAL - OIL

Note: Included in Engine Gasket Set-See Ref. 358

Usually ships same day

Not available

$

$

8

Toro Part# 77-9260

BREATHER ASM
Usually ships same day

Not available

$

$

9

Toro Part# 99-0913

GASKET-BREATHER

Note: Included in Engine Gasket Set-See Ref. 358

Usually ships in 5 to 8 days

$

$2.78

0

10
Usually ships same day

Not available

$

$

11

Toro Part# 99-0915

TUBE-BREATHER
Usually ships same day

Not available

$

$

523

Toro Part# 100-9146

Dipstick
(Superseded to 77-7260)
Usually ships same day

Not available

$

$

306

Toro Part# 99-0917

GOVERNOR LEVER ASM
Usually ships same day

Not available

$

$

842

Toro Part# 77-7270

O-RING

Note: Included in Engine Gasket Set-See Ref. 358

Usually ships in 5 to 8 days

$

$7.01

0

524

Toro Part# 77-7300

O-RING

Note: Included in Engine Gasket Set-See Ref. 358

Usually ships in 1 day

$

$3.79

0

307
Usually ships same day

Not available

$

$

585

Toro Part# 77-7410

GASKET-BREATHER
(Superseded to 99-0923)

Note: Included in Engine Gasket Set-See Ref. 358

Usually ships in 5 to 8 days

$

$9.23

0

525

Toro Part# 99-0906

TUBE-FILTER, OIL
Usually ships same day

Not available

$

$

718

Toro Part# 77-7600

DOWEL - SLEEVE
Usually ships same day

Not available

$

$

584

Toro Part# 99-0922

BAFFLE-CYLINDER
Usually ships in 5 to 8 days

$

$7.44

0

847

Toro Part# 98-9209

DIPSTICK TUBE ASM
Usually ships in 5 to 8 days

$

$34.07

0

684
Usually ships same day

Not available

$

$

287
Usually ships in 5 to 8 days

$

$5.47

0
