20829 - Toro 48cm Recycler Walk-Behind Mower (SN: 210000001 - 210999999) (2001) GEARCASE AND DRIVE ASSEMBLY Parts Diagram

48cm Recycler Walk-Behind Mower

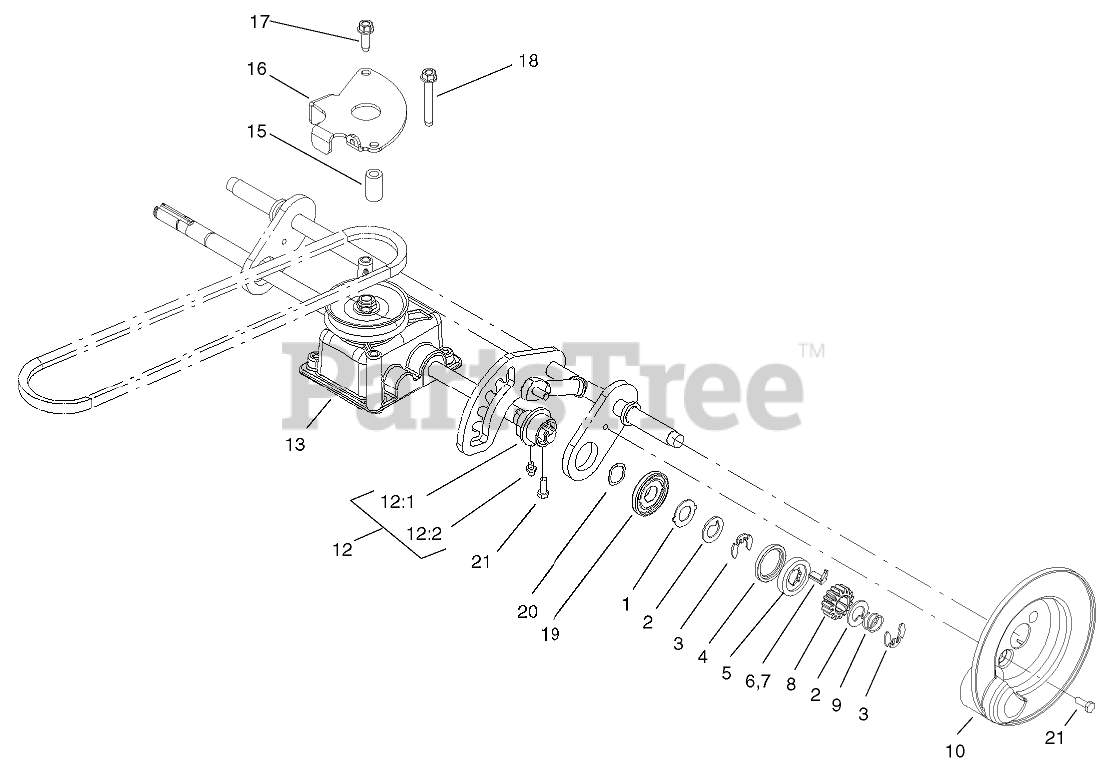

GEARCASE AND DRIVE ASSEMBLY Parts Diagram

  • Title
1

Toro Part# 65-4730

WASHER-ARM, PIVOT
Usually ships in 1 day

$

$2.23

0

2

Toro Part# 65-4740

WASHER-THRUST, KEYED
Usually ships in 1 day

$

$2.23

0

3

Toro Part# 65-2720

RING-CLIP, LOCKING
Usually ships in 1 day

$

$1.11

0

4

Toro Part# 65-4710

RING-FRICTION
Usually ships in 1 day

$

$2.23

0

5

Toro Part# 65-4760

WASHER-CLUTCH
Usually ships in 1 day

$

$1.33

0

6

Toro Part# 66-6040

KEY-ROCKING, RH
Usually ships same day

Not available

$

$

7

Toro Part# 66-6050

KEY-ROCKING, LH
(Superseded to 139-6644)
Usually ships in 1 day

$

$5.76

0

8

Toro Part# 65-4750

GEAR-PINION
Usually ships in 1 day

$

$10.05

0

9

Toro Part# 65-4720

SPRING-COMPRESSION
Usually ships in 1 day

$

$1.11

0

10

Toro Part# 100-1513

COVER-GEAR
Usually ships in 5 to 8 days

$

$17.52

0

12

Toro Part# 100-9118

BUSHING ASM
Usually ships in 5 to 8 days

$

$15.16

0

12:1
Usually ships same day

Not available

$

$

12:2

Toro Part# 302-56

FITTING-GREASE
Usually ships in 1 day

$

$3.27

0

13

Toro Part# 104-7593

GEAR CASE ASM
Usually ships same day

Not available

$

$

15

Toro Part# 614673

BUSHING-PLATE, ACTUATOR
Usually ships in 1 day

$

$9.49

0

16

Toro Part# 100-1524-03

GUIDE-TRANSMISSION
Usually ships in 5 to 8 days

$

$7.97

0

17

Toro Part# 49-2040

SCREW-HWHTF
Usually ships in 1 day

$

$1.67

0

18

Toro Part# 92-1616

SCREW-HWHTF
Usually ships in 1 day

$

$2.50

0

19

Toro Part# 100-1511

RETAINER-RING
Usually ships in 5 to 8 days

$

$4.29

0

20

Toro Part# 100-1515

WASHER-WAVE
Usually ships in 5 to 8 days

$

$8.84

0

21

Toro Part# 32144-1

SCREW-TAPTITE
Usually ships in 1 day

$

$2.23

0
