20830 - Toro Walk-Behind Mower (SN: 001000001 - 001999999) (1981) CARBURETOR ASSEMBLY 92508-1071-01 (MODEL 20815) CARBURETOR ASSEMBLY 92508-1080-01 (MODEL 20830) Parts Diagram

Walk-Behind Mower

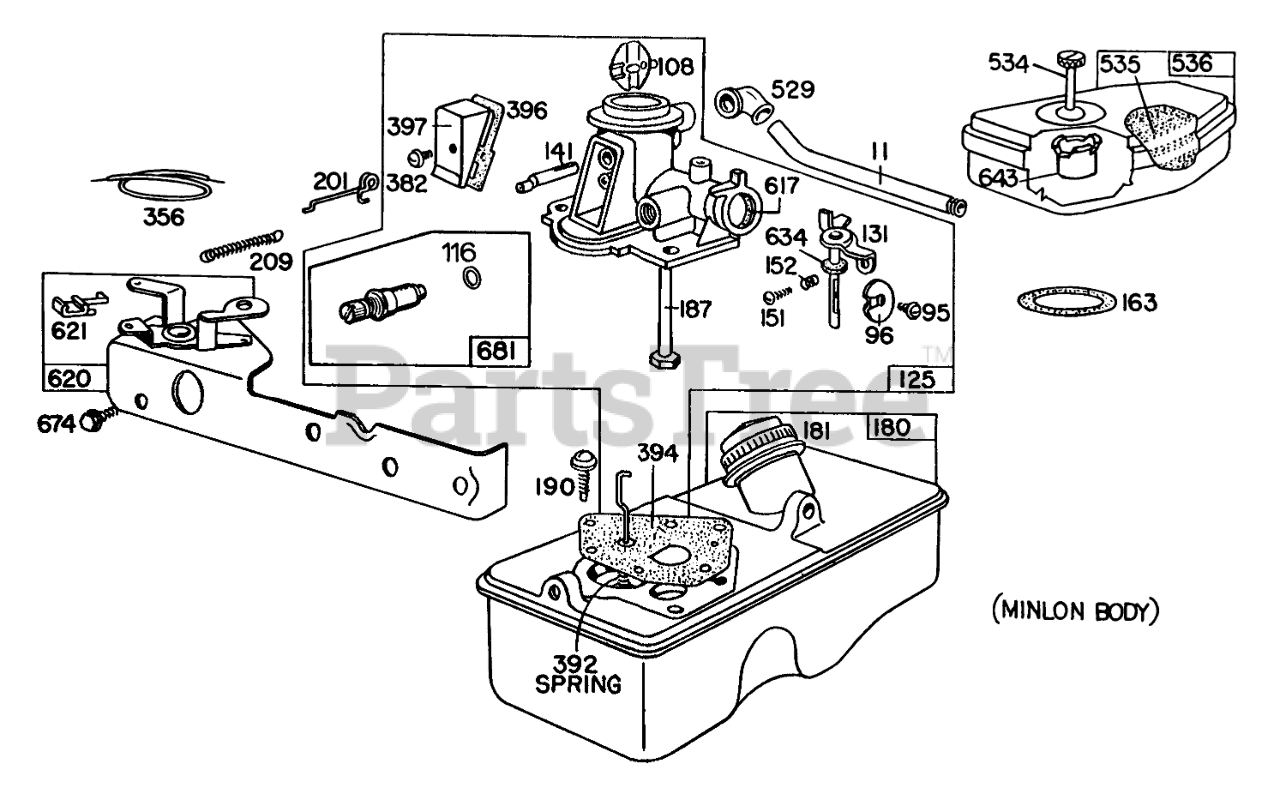

CARBURETOR ASSEMBLY 92508-1071-01 (MODEL 20815) CARBURETOR ASSEMBLY 92508-1080-01 (MODEL 20830) Parts Diagram

  • Title

11

Briggs & Stratton 230802

Tube Breather

$9.49

$

Usually ships in 2-12 days

0

95

Briggs & Stratton 93499

Screw
(Superseded to 691437)

$3.99

$

In Stock, only 2 left!

0

96

Briggs & Stratton 211203

Valve Throttle

$8.49

$

Usually ships in 2-12 days

0

108

Briggs & Stratton 280178

Valve-Choke

$6.49

$

Usually ships in 2-12 days

0

116

Toro 28023

O-Ring

$

$

Currently unavailable

125

Briggs & Stratton 393112

Carburetor Assembly (Minlon Body)
(Superseded to 394596)

$57.99

$

Usually ships in 2-12 days

0

131

Briggs & Stratton 393003

Shaft and Lever-Throttle (Minlon Carb.)
(Superseded to 394588)

$15.99

$

Usually ships in 2-12 days

0

141

Briggs & Stratton 68908

Shaft-Choke

$14.99

$

Usually ships in 2-12 days

0

151

Briggs & Stratton 93524

Screw-Rd. Hd

$3.99

$

Usually ships in 2-12 days

0

152

Briggs & Stratton 260746

Spring-Throttle Adj
(Superseded to 691783)

$7.99

$

In Stock, only 1 left!

0

163

Briggs & Stratton 271139

Gasket-Air Cleaner
(Superseded to 271139S)

$3.99

$

In Stock, Qty 13

0

180

Briggs & Stratton 393113

Tank Assembly-Fuel
(Superseded to 495912)

$

$

Not available

181

Briggs & Stratton 298425

Cap-Fuel Tank
(Superseded to 493982S)

$4.99

$

In Stock, Qty 5

0

187

Toro 383001

Pipe-Fuel (Minlon Body)

$

$

Currently unavailable

190

Briggs & Stratton 93440

Screw-Fuel Tank
(Superseded to 692200)

$

$

Not available

201

Briggs & Stratton 261027

Link-Governor

$5.99

$

Usually ships in 2-12 days

0

209

Briggs & Stratton 260875

Spring-Governor for Engine 92508-1071-01

$6.99

$

In Stock, only 1 left!

0

Briggs & Stratton 261060

Spring-Governor

Note: Not illustrated

$4.49

$

Usually ships in 2-12 days

0

356

Briggs & Stratton 298479

Wire-Ground
(Superseded to 398808)

$11.99

$

In Stock, only 1 left!

0

382

Briggs & Stratton 93864

Screw-Choke Link Cover

$3.99

$

Usually ships in 2-12 days

0

392

Briggs & Stratton 261016

Spring-Diaphragm

$6.49

$

Usually ships in 2-12 days

0

394

Briggs & Stratton 299637

Diaphragm-Carburetor

$27.99

$

Usually ships in 2-12 days

0

396

Briggs & Stratton 270571

Gasket-Choke Link Cover

$6.99

$

In Stock, only 2 left!

0

397

Toro 211687

Cover-Choke Link

$

$

Currently unavailable

529

Briggs & Stratton 67838

Grommet
(Superseded to 692189)

$4.49

$

In Stock, Qty 20+

0

534

Briggs & Stratton 93865

Screw-Air Cleaner
(Superseded to 691417)

$5.99

$

In Stock, Qty 8

0

535

Briggs & Stratton 270579

Element Air Cleaner
(Superseded to 270579S)

$5.99

$

In Stock, Qty 8

0

536

Briggs & Stratton 390055

Cleaner Assembly-Air

$16.99

$

Usually ships in 2-12 days

0

617

Briggs & Stratton 270344

Seal-O Ring
(Superseded to 270344S)

$3.49

$

In Stock, Qty 20+

0

620

Briggs & Stratton 299974

Plate Carburetor Control

$38.99

$

Usually ships in 2-12 days

0

621

Briggs & Stratton 297472

Switch-Stop
(Superseded to 297472S)

$

$

Not available

634

Briggs & Stratton 270167

Washer (Felt)

$4.99

$

In Stock, Qty 16

0

643

Briggs & Stratton 222991

Cup-Air Cleaner
(Superseded to 280374)

$7.49

$

In Stock, only 1 left!

0

674

Briggs & Stratton 93559

Screw
(Superseded to 690810)

$3.49

$

In Stock, Qty 5

0

681

Briggs & Stratton 393451

Needle Valve Kit
(Superseded to 395508)

$8.99

$

Usually ships in 2-12 days

0
