20833 - Toro 48cm Recycler Walk-Behind Mower (SN: 220000001 - 220999999) (2002) Engine and Blade Assembly Parts Diagram

48cm Recycler Walk-Behind Mower

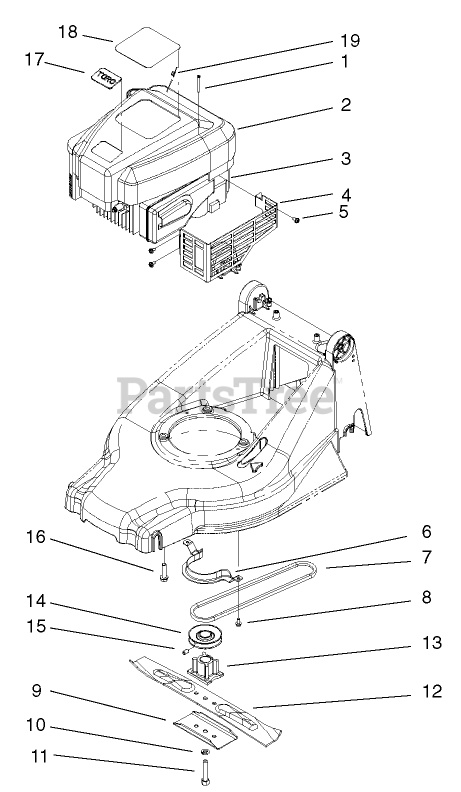

Engine and Blade Assembly Parts Diagram

  • Title

1

Toro 32144-121

See Supercession: 32144-88
(Superseded to 32144-88)

$1.99

$

In Stock, only 2 left!

0

2

Toro 93-0243

SHROUD-ENGINE

$64.99

$

Usually ships in 3-6 days

0

3

Loose Parts Package

Note: Not serviced separately

$

$

Not available

4

Toro 104-7577-03

SHIELD-MUFFLER

$28.99

$

In Stock, only 2 left!

0

5

Toro 104-2065

SCREW-HWH

$0.99

$

In Stock, Qty 20+

0

6

Toro 100-1523-03

GUIDE-BELT, ENGINE

$20.99

$

Usually ships in 3-6 days

0

7

Toro 93-0232

V-BELT

$15.99

$

In Stock, only 2 left!

0

8

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

9

Toro 80-0510-03

STIFFENER-BLADE

$18.99

$

In Stock, Qty 5

0

10

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 2 left!

0

11

Toro 100-4368

BOLT-BLADE

$21.99

$

Usually ships in 3-6 days

0

12

Toro 71-9260-03

BLADE-48 CM

$

$

Not available

13

Toro 104-7554

RETAINER-BLADE

$

$

Not available

14

Toro 100-1102

PULLEY ASM

$125.99

$

Usually ships in 3-6 days

0

15

Toro 104-0214

See Supercession: 105-8875
(Superseded to 105-8875)

$12.99

$

Usually ships in 3-6 days

0

16

Toro 32144-102

SCREW-HWH

$3.99

$

In Stock, Qty 5

0

17

Toro 92-2289

See Supercession: 98-3206
(Superseded to 98-3206)

$2.49

$

In Stock, only 2 left!

0

18

Toro 100-5952

DECAL-ENGINE

$

$

Not available

19

Toro 2210-316

STOP-ROPE

$8.49

$

Usually ships in 3-6 days

0
