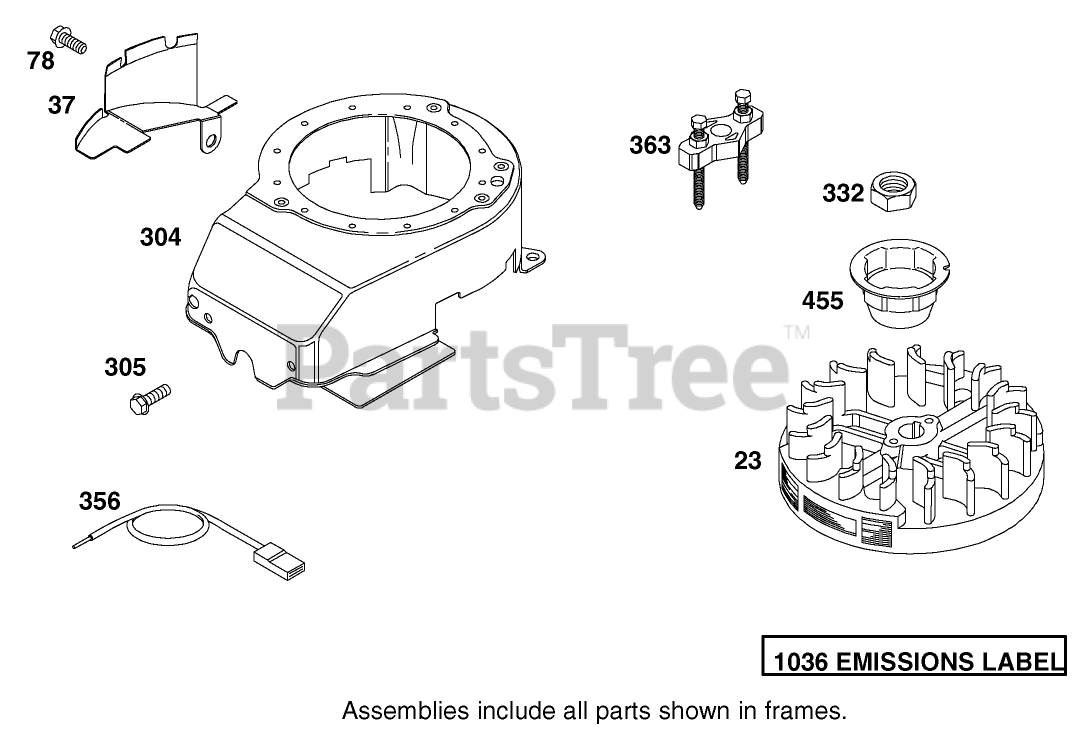

20833 - Toro 48cm Recycler Walk-Behind Mower (SN: 220000001 - 220999999) (2002) Flywheel and Blower Housing Assembly Briggs and Stratton Model 12F802-1770-B1 Parts Diagram

48cm Recycler Walk-Behind Mower

Flywheel and Blower Housing Assembly Briggs and Stratton Model 12F802-1770-B1 Parts Diagram

  • Title
23

Toro 692315

Flywheel

$

$

Currently unavailable

37

Toro 694086

Guard-Flywheel

$

$

Currently unavailable

78

Toro 691108

Screw

$

$

Currently unavailable

304

Toro 493293

Housing-Blower

$

$

Currently unavailable

305

Toro 691108

Screw

$

$

Currently unavailable

332

Toro 690877

Screw

$

$

Currently unavailable

356

Toro 692390

Wire-Stop

$

$

Currently unavailable

363

Toro 19069

Puller-Flywheel

$

$

Currently unavailable

455

Toro 691219

Cup-Flywheel

$

$

Currently unavailable

1036

Toro 695111

Label-Emissions

$

$

Currently unavailable
