20833 - Toro 48cm Recycler Walk-Behind Mower (SN: 220000001 - 220999999) (2002) Starter Assembly Briggs and Stratton Model 12F802-1770-B1 Parts Diagram

48cm Recycler Walk-Behind Mower

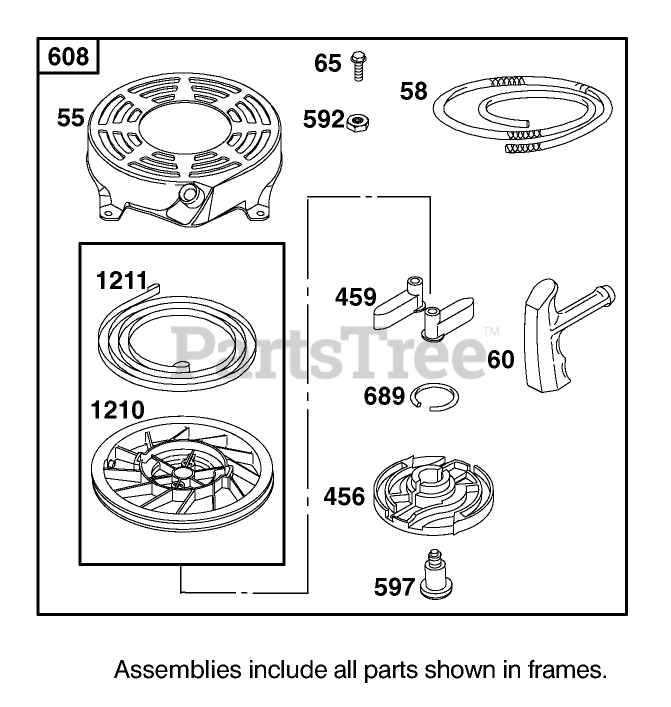

Starter Assembly Briggs and Stratton Model 12F802-1770-B1 Parts Diagram

  • Title
55

Toro 691421

Housing-Starter, Rewind

$

$

Currently unavailable

58

Toro 280399

Rope?Starter (Cut to Required Length)

$

$

Currently unavailable

60

Toro 281434

Grip-Rope, Starter

$

$

Currently unavailable

65

Toro 690837

Screw

$

$

Currently unavailable

456

Toro 692299

Plate-Friction, Pawl

$

$

Currently unavailable

459

Toro 281505

Ratchet-Pawl

$

$

Currently unavailable

592

$

$

Currently unavailable

597

Toro 691696

Screw

$

$

Currently unavailable

608

Toro 497680

Starter-Rewind

$

$

Currently unavailable

689

Toro 691855

Spring-Friction

$

$

Currently unavailable

1210

Toro 498144

Pulley and Spring ASM

$

$

Currently unavailable

1211

Toro 498144

Pulley and Spring ASM

$

$

Currently unavailable
