20838 - Toro 48cm Super Recycler Walk-Behind Mower (SN: 400000000 - 401699999) HOUSING ASSEMBLY Parts Diagram

48cm Super Recycler Walk-Behind Mower

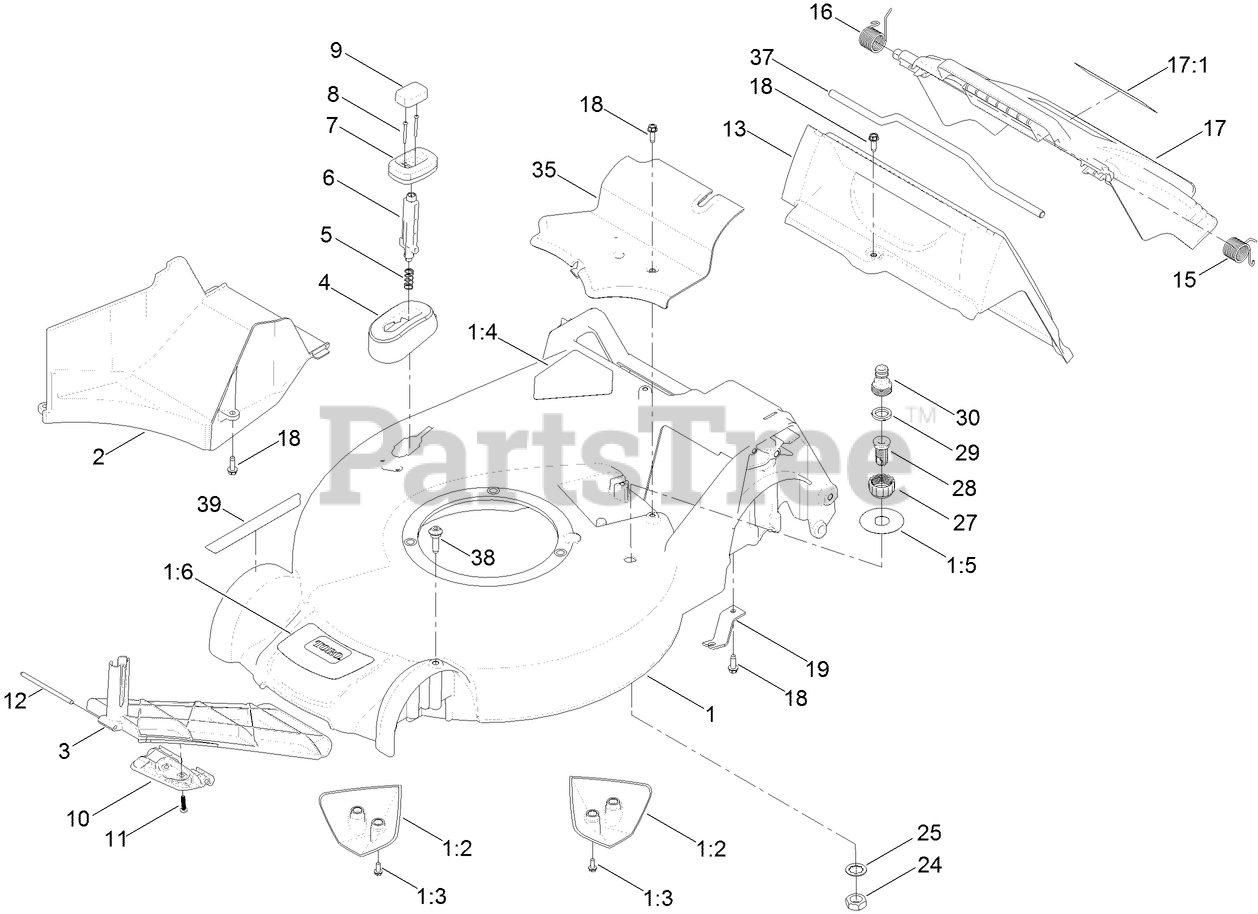

HOUSING ASSEMBLY Parts Diagram

  • Title
1

Toro Part# 117-4093

HOUSING ASM
Usually ships in 5 to 8 days

$

$200.57

0

1:2

Toro Part# 99-6485

KICKER-FRONT
Usually ships in 5 to 8 days

$

$13.86

0

1:3

Toro Part# 32144-1

SCREW-TAPTITE
Usually ships in 1 day

$

$2.23

0

1:4

Toro Part# 112-8760

DECAL-DANGER
Usually ships in 1 day

$

$7.82

0

1:5

Toro Part# 112-8867

DECAL-PORT, WASHOUT
Usually ships in 1 day

$

$4.45

0

1:6

Toro Part# 120-3908

DECAL-DECK, SUPER RECYCLER
Usually ships in 5 to 8 days

$

$6.51

0

2

Toro Part# 117-4063

RAMP-DISCHARGE
Usually ships in 5 to 8 days

$

$22.18

0

3

Toro Part# 117-4064

DOOR-RECYCLE
Usually ships in 5 to 8 days

$

$13.34

0

4

Toro Part# 117-4065

COVER-DOOR, RECYCLE
Usually ships in 5 to 8 days

$

$6.63

0

5

Toro Part# 117-1031

SPRING-COMPRESSION
Usually ships in 5 to 8 days

$

$2.23

0

6

Toro Part# 110-7129

LATCH-RECYCLE
Usually ships same day

Currently unavailable

$

$

7

Toro Part# 110-7136

HOUSING-KNOB
Usually ships same day

Currently unavailable

$

$

8

Toro Part# 110-7143

SCREW-TORX, PAN HEAD
Usually ships same day

Currently unavailable

$

$

9

Toro Part# 119-2254

KNOB-RECYCLE
Usually ships in 5 to 8 days

$

$2.26

0

10

Toro Part# 119-2262

HINGE-DOOR, RECYCLE
Usually ships in 5 to 8 days

$

$7.85

0

11

Toro Part# 108-7476

SCREW-PLASTITE
Usually ships in 1 day

$

$0.75

0

12
Usually ships in 5 to 8 days

$

$4.07

0

Usually ships in 5 to 8 days

$

$30.90

0

15

Toro Part# 115-2859

SPRING-TORSION
Usually ships in 1 day

$

$4.10

0

16

Toro Part# 114-7924

SPRING-TORSION
Usually ships in 1 day

$

$2.73

0

17

Toro Part# 117-4085

REAR DOOR ASM
Usually ships in 5 to 8 days

$

$37.97

0

17:1

Toro Part# 131-4514

DECAL-WARNING
Usually ships in 1 day

$

$1.52

0

18

Toro Part# 49-2040

SCREW-HWHTF
Usually ships in 1 day

$

$1.67

0

19

Toro Part# 117-9385

BRACKET-CABLE, TRACTION
(Superseded to 138-3230)
Usually ships in 5 to 8 days

$

$7.60

0

24
Usually ships in 1 day

$

$5.74

0

25

Toro Part# 3254-5

WASHER-TOOTH, INTERNAL
Usually ships in 1 day

$

$0.49

0

27

Toro Part# 112-6401

COUPLING-HOSE, WASHOUT PORT
Usually ships in 1 day

$

$1.97

0

28

Toro Part# 112-6400

PORT-WASHOUT
Usually ships in 5 to 8 days

$

$3.78

0

29

Toro Part# 112-6438

WASHER-SEAL, WASHOUT PORT
Usually ships in 1 day

$

$1.24

0

30

Toro Part# 112-6437

ADAPTER-CONNECT, QUICK
Usually ships in 5 to 8 days

$

$9.64

0

35

Toro Part# 117-4062

COVER-BELT
Usually ships in 5 to 8 days

$

$13.34

0

37

Toro Part# 117-9378

ROD-DEFLECTOR
Usually ships in 5 to 8 days

$

$28.97

0

38

Toro Part# 119-2267

SCREW-SHOULDER, BHTF
Usually ships in 1 day

$

$3.12

0

39
Usually ships in 5 to 8 days

$

$5.14

0
