20838 - Toro 48cm Super Recycler Walk-Behind Mower (SN: 410000000 - 999999999) Electrical Assembly Parts Diagram

48cm Super Recycler Walk-Behind Mower

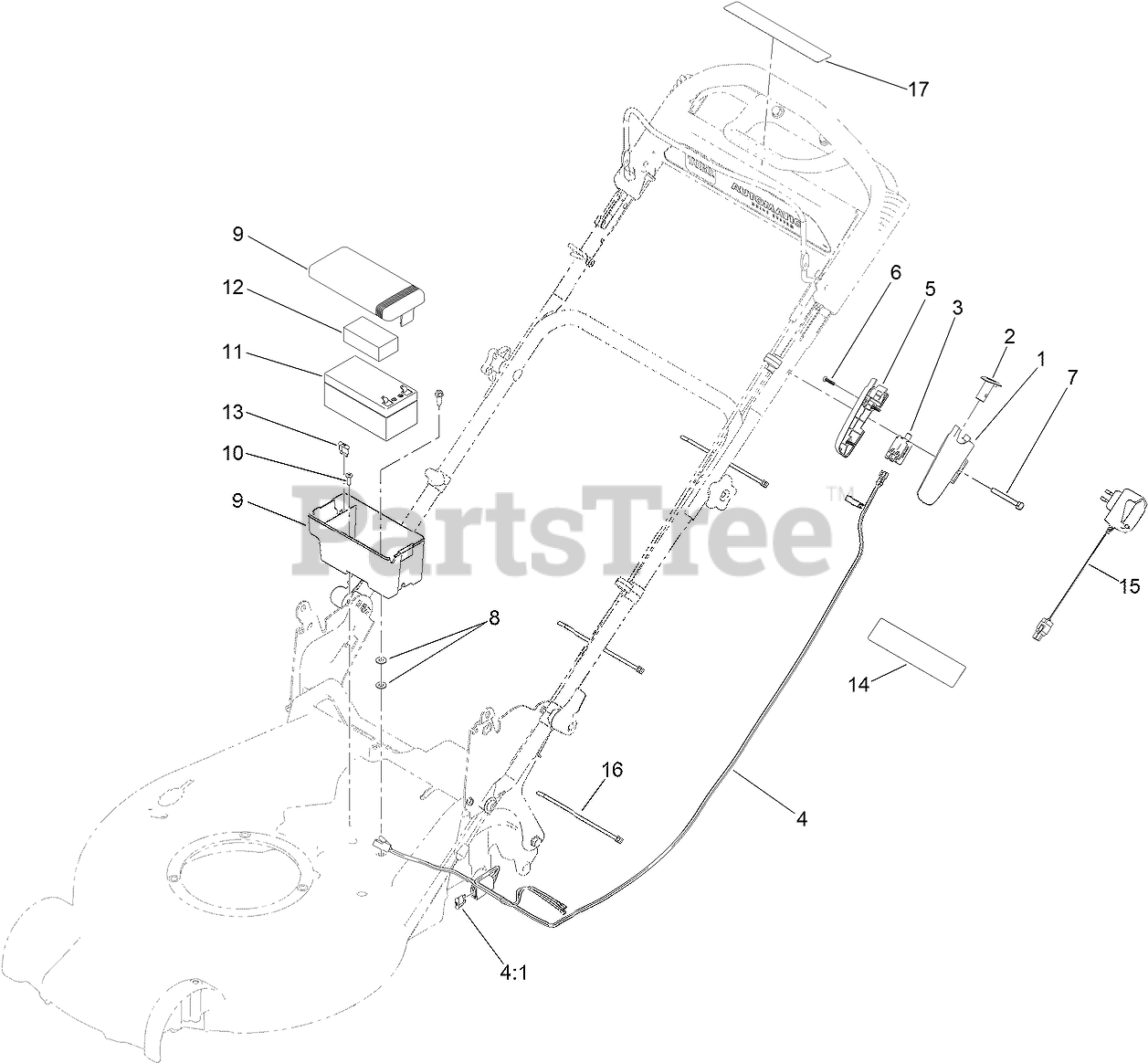

Electrical Assembly Parts Diagram

  • Title

1

Toro 133-8160

HOUSING-SWITCH, LH

$2.49

$

In Stock, Qty 5

0

2

Toro 125-2470

BUTTON-SWITCH

$2.49

$

In Stock, Qty 10

0

3

Toro 121-9173

SWITCH-PUSH BUTTON

$25.99

$

In Stock, only 2 left!

0

4

Toro 125-5025

HARNESS-WIRE

$92.99

$

Usually ships in 3-6 days

0

4:1

Toro 99-6124

FUSE-40 AMP

$5.49

$

In Stock, Qty 16

0

5

Toro 133-8161

HOUSING-SWITCH, RH

$2.49

$

In Stock, only 3 left!

0

6

Toro 94-4496

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

7

Toro 321-50

SCREW-HH

$1.99

$

In Stock, Qty 20+

0

8

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

9

Toro 108-4844

BATTERY BOX ASM

$25.99

$

Usually ships in 3-6 days

0

10

Toro 32144-32

SCREW

$2.99

$

Usually ships in 3-6 days

0

11

Toro 106-8397

BATTERY-WET

$79.99

$

In Stock, Qty 9

0

12

Toro 107-3774

FOAM-BATTERY, TOP

$5.49

$

In Stock, Qty 19

0

13

Toro 99-6124

FUSE-40 AMP

$5.49

$

In Stock, Qty 16

0

14

Toro 104-7953

DECAL-WARNING

$10.99

$

Usually ships in 3-6 days

0

15

Toro 120-3947

See Supercession: 136-9127
(Superseded to 137-9153)

$56.99

$

Usually ships in 3-6 days

0

16

Toro 614249

TIE-CABLE

$1.49

$

In Stock, Qty 20+

0

17

Toro 133-1900

DECAL-BUTTON, PUSH

$5.99

$

In Stock, only 1 left!

0
