2084 (144-733-100) - Cub Cadet Super Garden Tractor (SN: 836000 - 864500) Battery Tray & Bulkhead Parts Diagram

Super Garden Tractor

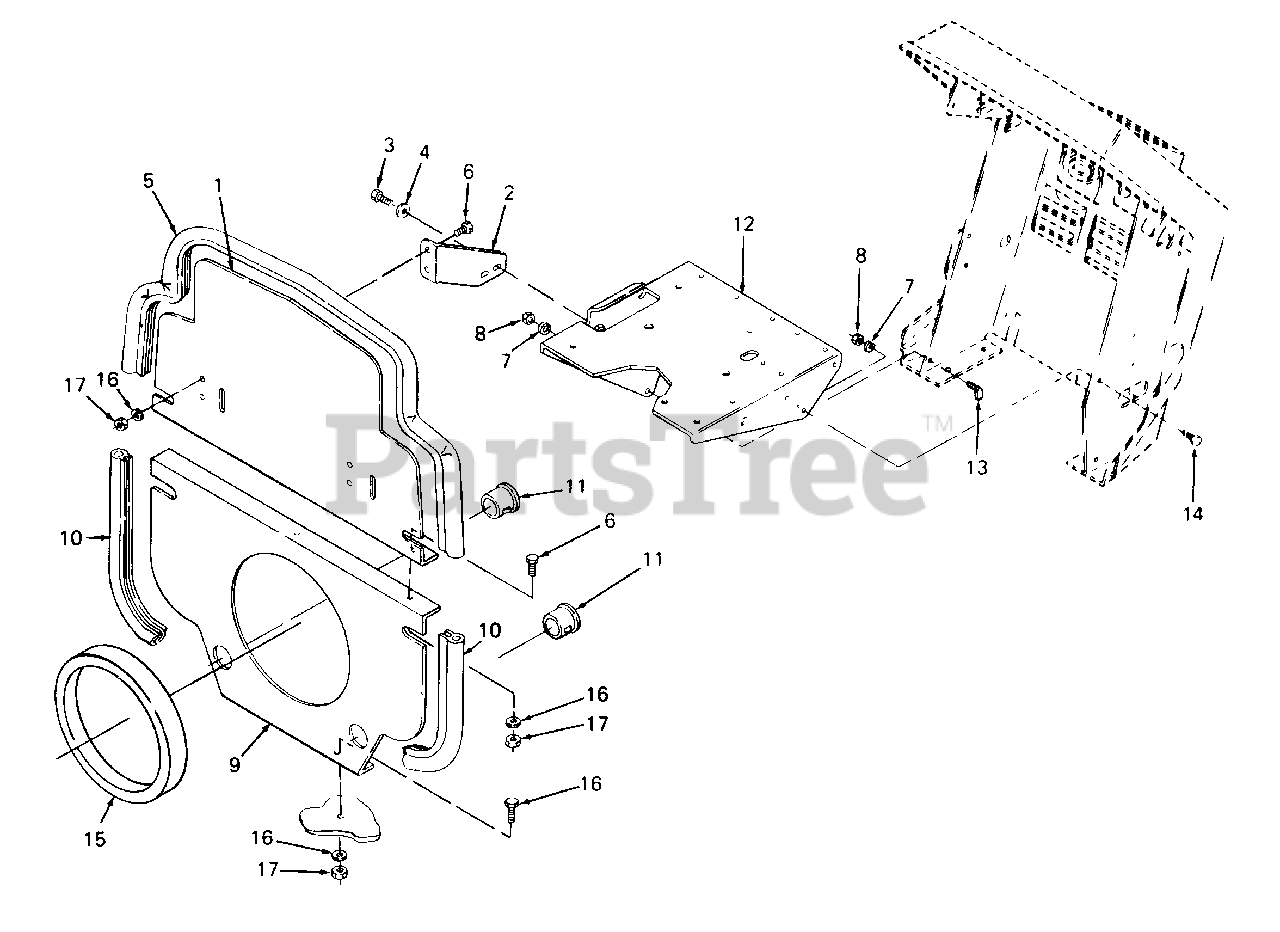

Battery Tray & Bulkhead Parts Diagram

  • Title

1

Cub Cadet 703-2144

Bulkhead, Upper

Variations

703-2144-0637

Cub Cadet 703-2144-0637

BULKHEAD-UPPER - POWDER BLACK (0637)

$

$

Not available

$

$

2

Cub Cadet 703-2142

Bracket, Bulkhead

$

$

Not available

3

Cub Cadet 710-3039

Screw, Hex Cap, 5/16-18 X .50 Lg GR5

$

$

Not available

4

Cub Cadet 736-0242

Washer, Bell, .345 X .88 X .060 Thk

$4.99

$

In Stock, Qty 20+

0

5

Seal, Bulkhead, 36" Lg

Note: (Order Part No. 723-3004, 56" Lg, & cut to fit)

$

$

Not available

6

Cub Cadet 710-3013

Screw, Hex Cap, 1/4-20 X .50 Lg GR5

$4.99

$

In Stock, Qty 7

0

7

Cub Cadet 736-0329

Washer, Lock, 1/4
(Superseded to 936-0329)

$4.99

$

In Stock, Qty 12

0

8

Cub Cadet 712-3006

Nut, Hex, 1/4-20 GR5

$4.99

$

In Stock, Qty 9

0

9

Cub Cadet 703-2143

Bulkhead, Lower

$

$

Not available

10

Seal, Bulkhead, 10" Lg

Note: (Order Part No. 723-3060, 17" Lg, & cut to fit)

$

$

Not available

11

Cub Cadet 723-3042

Bushing, Snap, 7/8 ID

$4.49

$

In Stock, only 1 left!

0

12

Cub Cadet 703-1827

Tray Assy, Battery

$

$

Not available

13

Cub Cadet 710-3012

Bolt, J-Type, 1/4-20

$

$

Not available

14

Cub Cadet 710-0751

Screw, Hex Cap, 1/4-20 X .62 Lg GR5

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 723-3062

Ring, Foam Sealing

$

$

Not available

16

Cub Cadet 736-0270

Washer, Bell, .265 X .75 X .062 Thk

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 712-3051

Nut, Hex Top Lock, 1/4-20

$

$

Not available
