20906 B - Toro 48cm Rear Bagging Walk-Behind Mower (SN: 020000001 - 029999999) (1992) Engine Assembly (model No. 20901b) Parts Diagram

48cm Rear Bagging Walk-Behind Mower

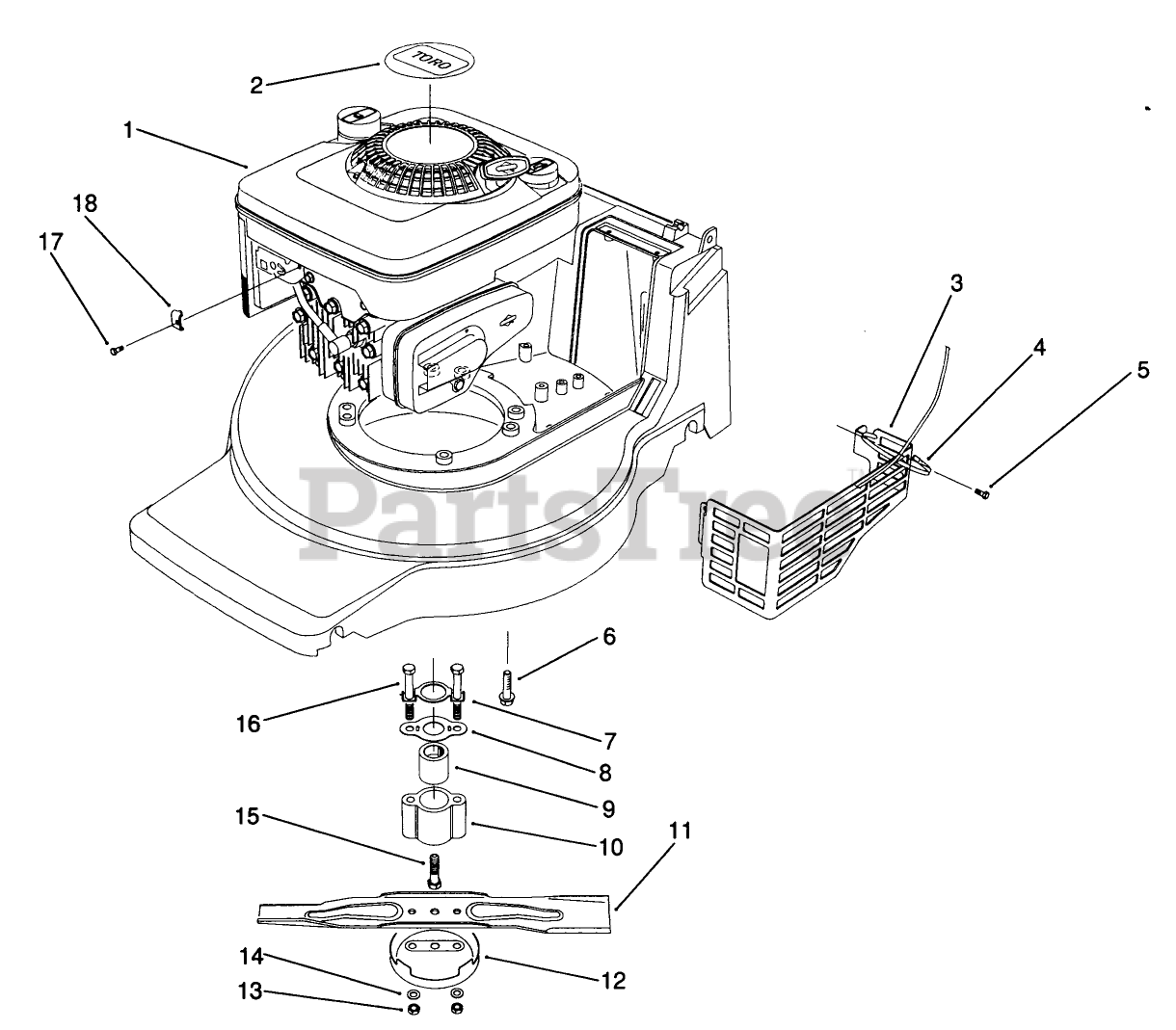

Engine Assembly (model No. 20901b) Parts Diagram

  • Title

1

Quantum

$

$

Not available

2

Toro 71-8460

DISCONTINUED

$

$

Not available

3

Toro 82-8550

See Supercession: 104-7577-03
(Superseded to 104-7577-03)

$28.99

$

In Stock, only 2 left!

0

4

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 9

0

5

Toro 32144-73

See Supercession: 104-2065
(Superseded to 104-2065)

$0.99

$

In Stock, Qty 20+

0

6

Toro 11-0581

3/8-16 X 2 CAPSCREW

$

$

Not available

7

Toro 71-9220

BLADE RETAINER BRKT

$6.99

$

Usually ships in 3-6 days

0

8

Toro 71-8840

SPRING FRICTION

$

$

Not available

9

Toro 71-8780

HUB

$

$

Not available

10

Toro 71-8790

DISCONTINUED

$

$

Not available

11

Toro 71-8210

See Supercession: 71-8210-03
(Superseded to 71-8210-03)

$

$

Not available

12

Toro 42-0910

See Supercession: 80-2770
(Superseded to 80-2770)

$18.99

$

In Stock, only 2 left!

0

13

Toro 52-3620

See Supercession: 32153-11
(Superseded to 32153-11)

$4.99

$

In Stock, Qty 7

0

14

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 10

0

15

Toro 71-8950

SCREW - CRANKSHAFT

$10.99

$

Usually ships in 3-6 days

0

16

Toro 71-8940

SCREW - BLADE

$8.49

$

Usually ships in 3-6 days

0

17

Toro 2210-313

See Supercession: 86-7990
(Superseded to 86-7990)

$3.99

$

Usually ships in 3-6 days

0

18

Toro 2210-249

CLAMP-CASING

$

$

Not available
