20921 B - Toro 48cm Rear Bagging Walk-Behind Mower (SN: 020000001 - 029999999) (1992) ENGINE ASSEMBLY Parts Diagram

48cm Rear Bagging Walk-Behind Mower

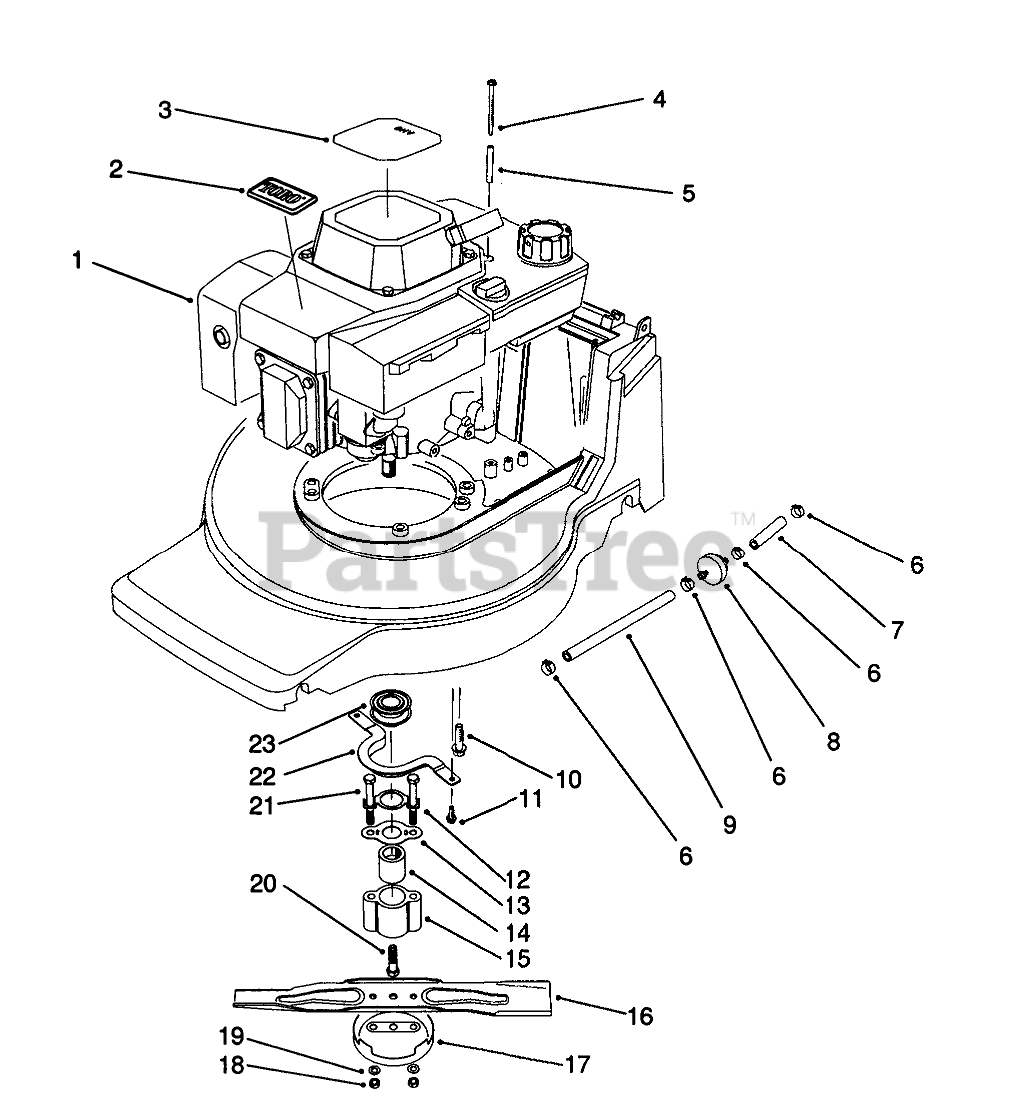

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 77-2810

Engine-OHV
(Superseded to 72-4144)

$

$

Not available

2

Toro 46-8290

TORO LOGO PLT
(Superseded to 98-3206)

$1.99

$

In Stock, only 2 left!

0

3

Toro 57-3120

DECAL-HV INT'L

$

$

Not available

4

Toro 56-6610

THRD FORMING SCREW

$4.99

$

Usually ships in 3-6 days

0

5

Toro 57-3830

TUBULAR SPACER

$4.99

$

Usually ships in 3-6 days

0

6

Toro 2412-95

CLAMP-FUEL LINE

$1.49

$

In Stock, Qty 14

0

7

Toro 51-3211

LINE-GAS

$6.49

$

In Stock, Qty 6

0

8

Toro 56-6360

FILTER-FUEL

$6.99

$

In Stock, Qty 20+

0

9

Toro 51-3214

HOSE-FUEL

$5.49

$

In Stock, only 4 left!

0

10

Toro 11-0590

SCREW-HWHTF
(Superseded to 32144-102)

$3.49

$

In Stock, Qty 5

0

11

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

12

Toro 71-9220

BLADE RETAINER BRKT

$5.49

$

Usually ships in 3-6 days

0

13

Toro 71-8840

SPRING FRICTION

$6.99

$

Usually ships in 3-6 days

0

14

Toro 71-8780

HUB

$36.99

$

Usually ships in 3-6 days

0

15

Toro 71-8790

RETAINER

$

$

Not available

16

Toro 71-8210

Blade-48cm
(Superseded to 71-8210-03)

$79.99

$

Usually ships in 3-6 days

0

17

Toro 80-2770

CUP-SCALP, ANTI

$15.99

$

In Stock, only 2 left!

0

18

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

19

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 20+

0

20

Toro 71-8950

SCREW - CRANKSHAFT

$8.99

$

Usually ships in 3-6 days

0

21

Toro 71-8940

SCREW - BLADE

$6.99

$

Usually ships in 3-6 days

0

22

Toro 71-7960

Guide-Belt
(Superseded to 71-7960-03)

$

$

Not available

23

Toro 62-7550

PULLEY-DRIVE, ZONE START

$

$

Not available

Toro 75-9850

OIL DRAIN TUBE

Note: Not illustrated

$

$

Not available
