20922 B - Toro 48cm Rear Bagging Walk-Behind Mower (SN: 039000001 - 039999999) (1993) ENGINE ASSEMBLY Parts Diagram

48cm Rear Bagging Walk-Behind Mower

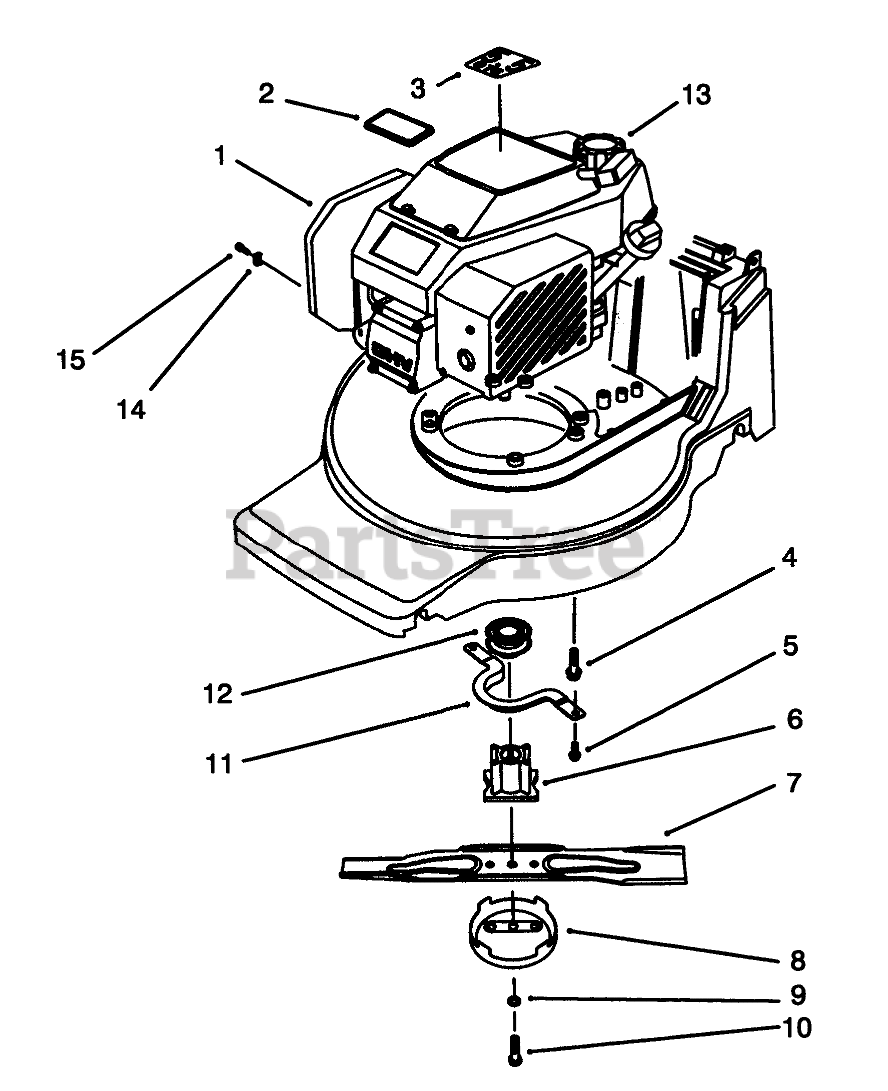

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 92-6528

ENG ASM-GTS 150 NC

$

$

Not available

2

Toro 92-2289

PLATE-LOGO
(Superseded to 98-3206)

$1.99

$

In Stock, only 2 left!

0

3

Toro 80-4800

DECAL - ENGINE

$

$

Not available

4

Toro 32144-102

SCREW-HWH

$3.49

$

In Stock, Qty 5

0

5

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

6

Toro 71-7940

BLADE RETAINER - 25 MM

$

$

Not available

7

Toro 71-8210

Blade-48cm
(Superseded to 71-8210-03)

$79.99

$

Usually ships in 3-6 days

0

8

Toro 80-2770

CUP-SCALP, ANTI

$15.99

$

In Stock, only 2 left!

0

9

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, Qty 5

0

10

Toro 26-0672

BOLT-BLADE

$6.99

$

Usually ships in 3-6 days

0

11

Toro 71-7960

Guide-Belt
(Superseded to 71-7960-03)

$

$

Not available

12

Toro 62-7550

PULLEY-DRIVE, ZONE START

$

$

Not available

13

Toro 55-3570

GAS CAP ASM

$14.99

$

In Stock, Qty 20+

0

14

Toro 2210-249

CLAMP-CASING

$3.49

$

Usually ships in 3-6 days

0

15

Toro 86-7990

CLAMP SCREW F/W ENGINE

$3.49

$

Usually ships in 3-6 days

0
