20928 BC - Toro 48cm Rear Bagging Walk-Behind Mower (SN: 049000001 - 049999999) (1994) Handle Assembly Parts Diagram

48cm Rear Bagging Walk-Behind Mower

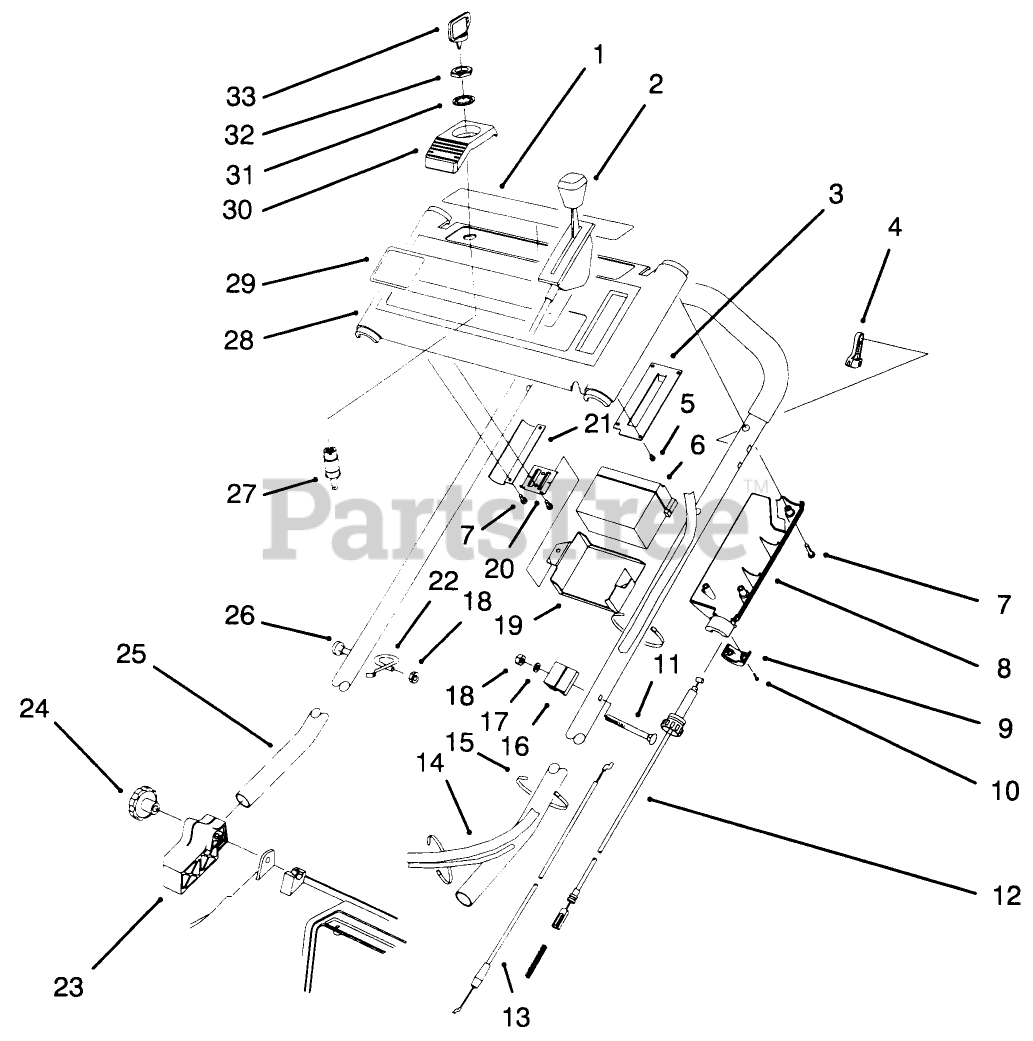

Handle Assembly Parts Diagram

  • Title

1

Toro 93-1399

DISCONTINUED
(Superseded to 93-6651)

$

$

Not available

2

Toro 93-1115

CONTROL - THROTTLE

$

$

Not available

3

Toro 71-8040

DISCONTINUED

$

$

Not available

4

Toro 46-5520

LEVER-TRACTION

$

$

Not available

5

Toro 32144-98

#6-19X.25 PLASK FORM SC

$

$

Not available

6

Toro 55-7520

BATTERY ASSEMBLY,WET

$176.99

$

Usually ships in 3-6 days

0

7

Toro 32144-97

SCREW-PPH, PLASTITE

$0.99

$

In Stock, only 3 left!

0

8

Toro 93-0339

COVER-THROTTLE, LEVER

$

$

Not available

9

Toro 71-7630

LOWER THROTTLE CAP

$

$

Not available

10

Toro 32144-99

DISCONTINUED

$

$

Not available

11

Toro 46-6432

SCREW-HANDLE

$15.99

$

Usually ships in 3-6 days

0

12

Toro 93-1119

CABLE - TRACTION

$

$

Not available

13

Toro 93-1116

CABLE - BRAKE

$74.99

$

Usually ships in 3-6 days

0

14

Toro 80-4791

See Supercession: 80-4794
(Superseded to 80-4794)

$

$

Not available

15

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 9

0

16

Toro 46-6980

SUPPORT-CABLE

$18.99

$

In Stock, only 2 left!

0

17

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 15

0

18

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

19

Toro 55-8180

See Supercession: 55-8180-03
(Superseded to 55-8180-03)

$43.99

$

Usually ships in 3-6 days

0

20

Toro 71-8280

BATTERY BRACKET

$15.99

$

Usually ships in 3-6 days

0

21

Toro 71-8130

DISCONTINUED
(Superseded to 71-8130-03)

$

$

Not available

22

Toro 46-8081

GUIDE-ROPE

$26.99

$

Usually ships in 3-6 days

0

23

Toro 71-8100

MOUNT-HANDLE, RH

$

$

Not available

Toro 71-8090

MOUNT-HANDLE, LH

Note: Not illustrated

$

$

Not available

24

Toro 19-4050

KNOB

$18.99

$

Usually ships in 3-6 days

0

25

Toro 71-9023

HANDLE (DIPPED)

$253.99

$

Usually ships in 3-6 days

0

26

Toro 46-6435

See Supercession: 321-13
(Superseded to 321-13)

$4.99

$

In Stock, Qty 6

0

27

Toro 46-5780

STARTER SWITCH ASM

$31.99

$

In Stock, only 2 left!

0

28

Toro 16-8299

DISCONTINUED

$

$

Not available

29

Toro 71-9864

DISCONTINUED

$

$

Not available

30

Toro 71-8200

IGNITION SWITCH BRACKET

$12.99

$

Usually ships in 3-6 days

0

31

Toro 3254-5

WASHER-LOCK

$1.49

$

In Stock, Qty 8

0

32

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 9

0

33

Toro 63-8360

KEY-IGNITION

$6.49

$

In Stock, Qty 20+

0
