2094 - Jonsered Chainsaw (1991-06) CLUTCH OIL PUMP Parts Diagram

Chainsaw

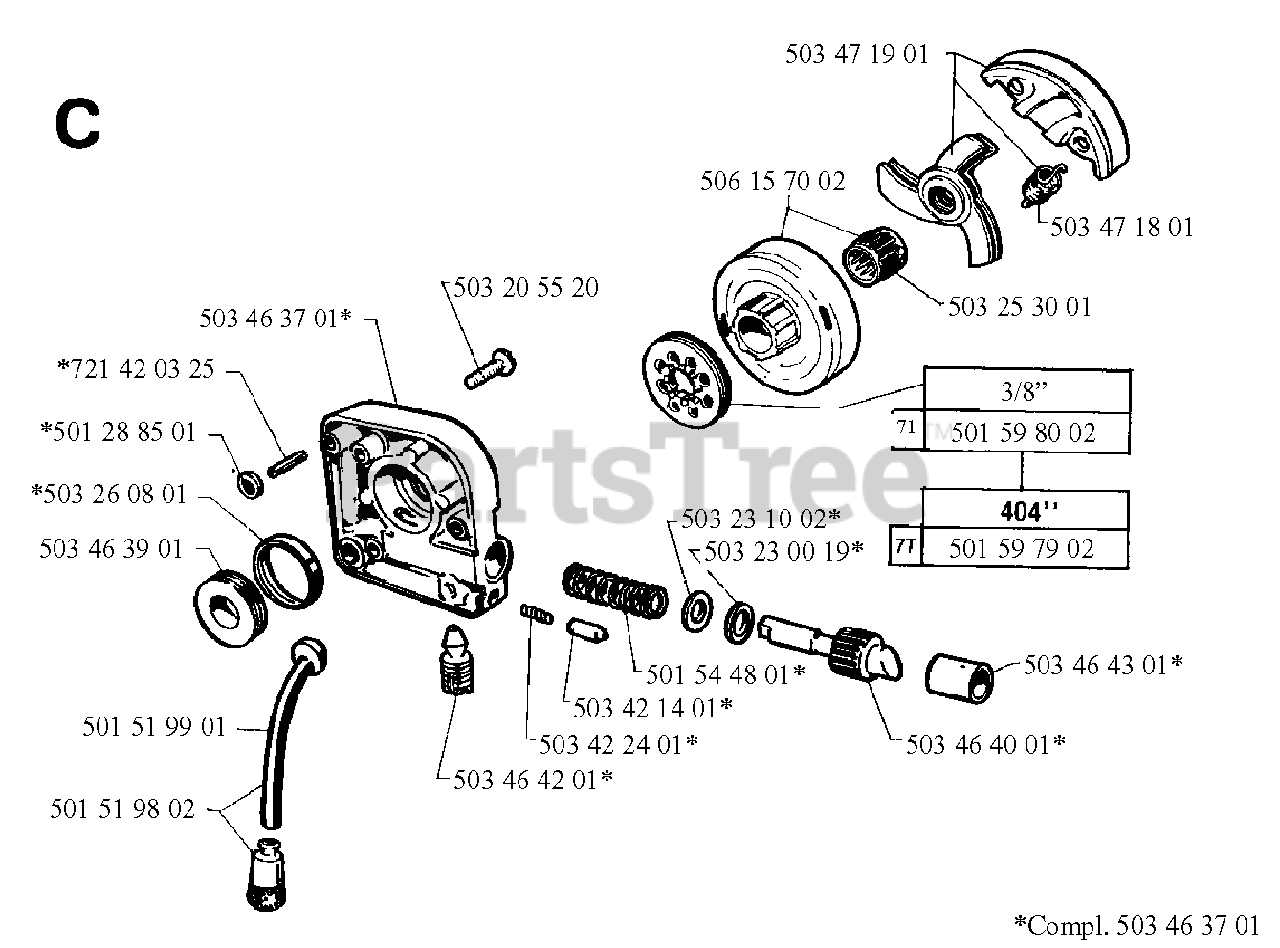

CLUTCH OIL PUMP Parts Diagram

  • Title

503463701

Jonsered 503463701

OILPUMP

$

$

Not available

721420325

Jonsered 721420325

SPRING PIN 3X6

$

$

Not available

501288501

Jonsered 501288501

X-RING

$8.99

$

In Stock, only 1 left!

0

503260801

Jonsered 503260801

SEALING RING

$

$

Not available

503463901

Jonsered 503463901

WORMWHEEL

$

$

Not available

501519901

Jonsered 501519901

OIL HOSE

$17.99

$

In Stock, Qty 6

0

501519802

Jonsered 501519802

HOSE

$

$

Not available

503464201

Jonsered 503464201

SCREW

$34.99

$

Usually ships in 3-10 days

0

503422401

Jonsered 503422401

SPRING

$5.99

$

Usually ships in 3-10 days

0

503421401

Jonsered 503421401

PIN

$7.49

$

Usually ships in 3-10 days

0

501544801

Jonsered 501544801

SPRING

$5.99

$

Usually ships in 3-10 days

0

503230019

Jonsered 503230019

WASHER 6.6X11

$4.99

$

Usually ships in 3-10 days

0

503231002

Jonsered 503231002

WASHER 6.6X11

$4.99

$

Usually ships in 3-10 days

0

503205520

Jonsered 503205520

SCREW

$

$

Not available

503471901

Jonsered 503471901

CLUTCH CPL
(Superseded to 503701501)

$93.46

$

Usually ships in 3-10 days

0

506157002

Jonsered 506157002

CLUTCH DRUM

$

$

Not available

503464001

Jonsered 503464001

PUMP PISTON

$22.99

$

Usually ships in 3-10 days

0

503463701

Jonsered 503463701

OILPUMP

$

$

Not available

503464301

Jonsered 503464301

CAP

$6.99

$

Usually ships in 3-10 days

0

501597902

Jonsered 501597902

22270 RIMSPROCKET
(Superseded to 507429957)

Note: 404 7T

$

$

Not available

501598002

Jonsered 501598002

68210 RIMSPROCKET
(Superseded to 640200215)

Note: 3 /8 71

$8.49

$

In Stock, Qty 20+

0

503253001

Jonsered 503253001

SUPPORT BUSHING

$22.99

$

In Stock, only 1 left!

0

503471801

Jonsered 503471801

SPRING

$8.99

$

In Stock, Qty 9

0
