20945 - Toro 46cm Walk-Behind Mower (SN: 322000001 - 322999999) (2022) Handle Bar and Controls Assembly Parts Diagram

46cm Walk-Behind Mower

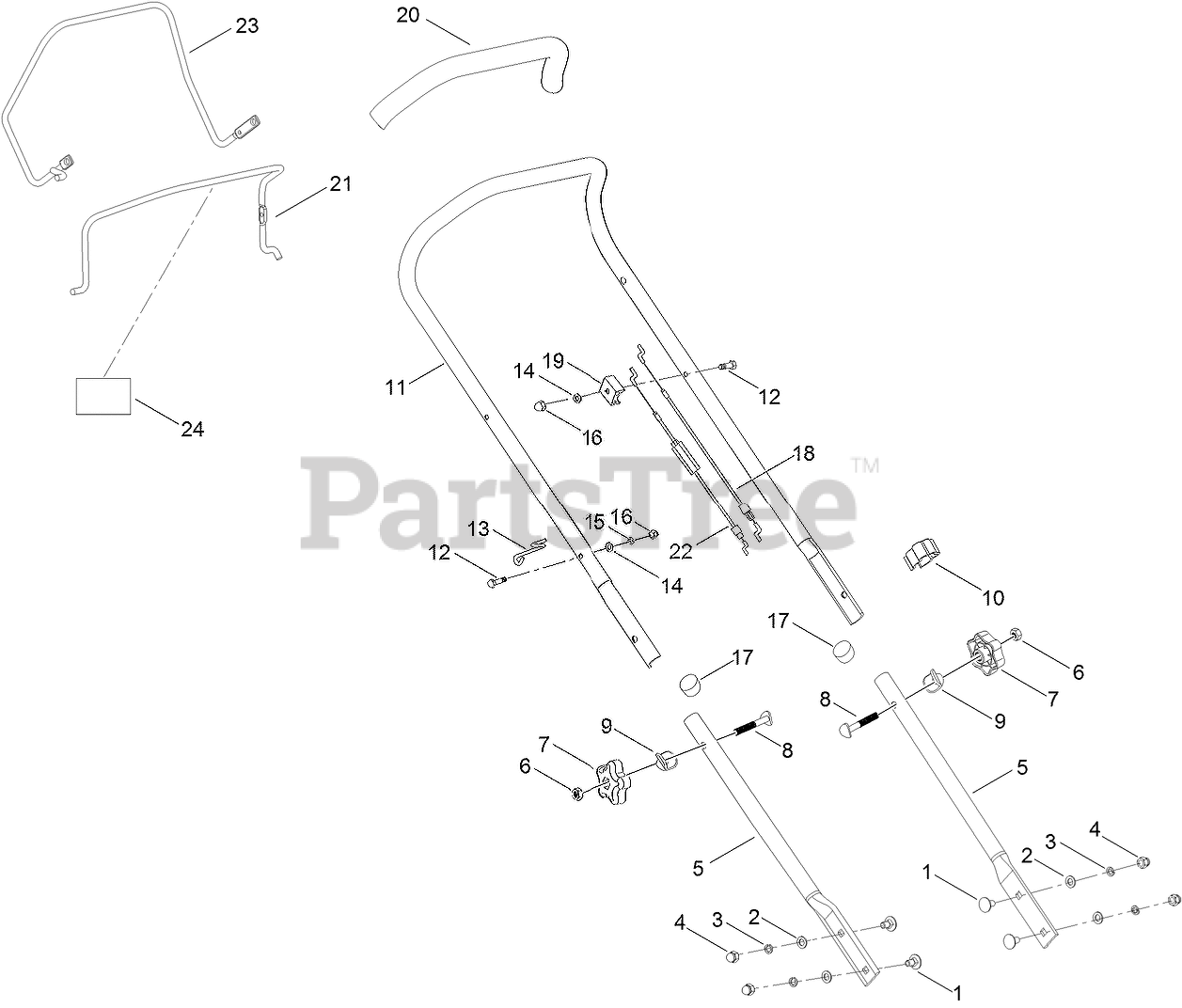

Handle Bar and Controls Assembly Parts Diagram

  • Title
1

$

$

Currently unavailable

2

Toro 09475

WASHER

$

$

Currently unavailable

3

Toro 03469

WASHER-SPRING

$

$

Not available

4

Toro 134-0222

NUT-LID

$

$

Currently unavailable

5

Toro 134-0223

HANDLEBAR-LOWER

$

$

Currently unavailable

6

Toro 134-0224

NUT-HEX

$

$

Currently unavailable

7

Toro 134-0225

KNOB-ROTARY

$

$

Currently unavailable

8

Toro 134-0226

BOLT-FLAT HEAD

$

$

Currently unavailable

9

Toro 134-0227

WASHER-CURVE

$

$

Currently unavailable

10

Toro 134-0228

CABLE CLAMP

$

$

Currently unavailable

11

Toro 134-0229

HANDLEBAR-UPPER

$

$

Currently unavailable

12

Toro 134-0230

BOLT-HH, FLANGE

$

$

Currently unavailable

13

Toro 134-0231

HOOK-CABLE

$

$

Currently unavailable

14

Toro 09472

WASHER-PLAIN

$

$

Not available

15

Toro 09474

WASHER-SPRING

$

$

Not available

16

Toro 134-0234

NUT-LID

$

$

Currently unavailable

17

Toro 134-0235

PLUG-TUBE

$

$

Currently unavailable

18

Toro 134-0237

CABLE-BLOCK, FIXED

$

$

Currently unavailable

19

Toro 134-0237

CABLE-BLOCK, FIXED

$

$

Currently unavailable

20

Toro 134-0238

GRIP-HANDLE

$

$

Currently unavailable

21

Toro 134-0239

LEVER-ENGINE

$

$

Currently unavailable

22

Toro 134-0240

CABLE-CLUTCH

$

$

Currently unavailable

23

Toro 134-0241

LEVER-CLUTCH, GEARBOX

$

$

Currently unavailable

24

Toro H295159

DECAL-STOP

$

$

Currently unavailable
