20949 - Toro 46cm Walk-Behind Mower (SN: 324000001 - 324999999) (2024) Crankcase Assembly Parts Diagram

46cm Walk-Behind Mower

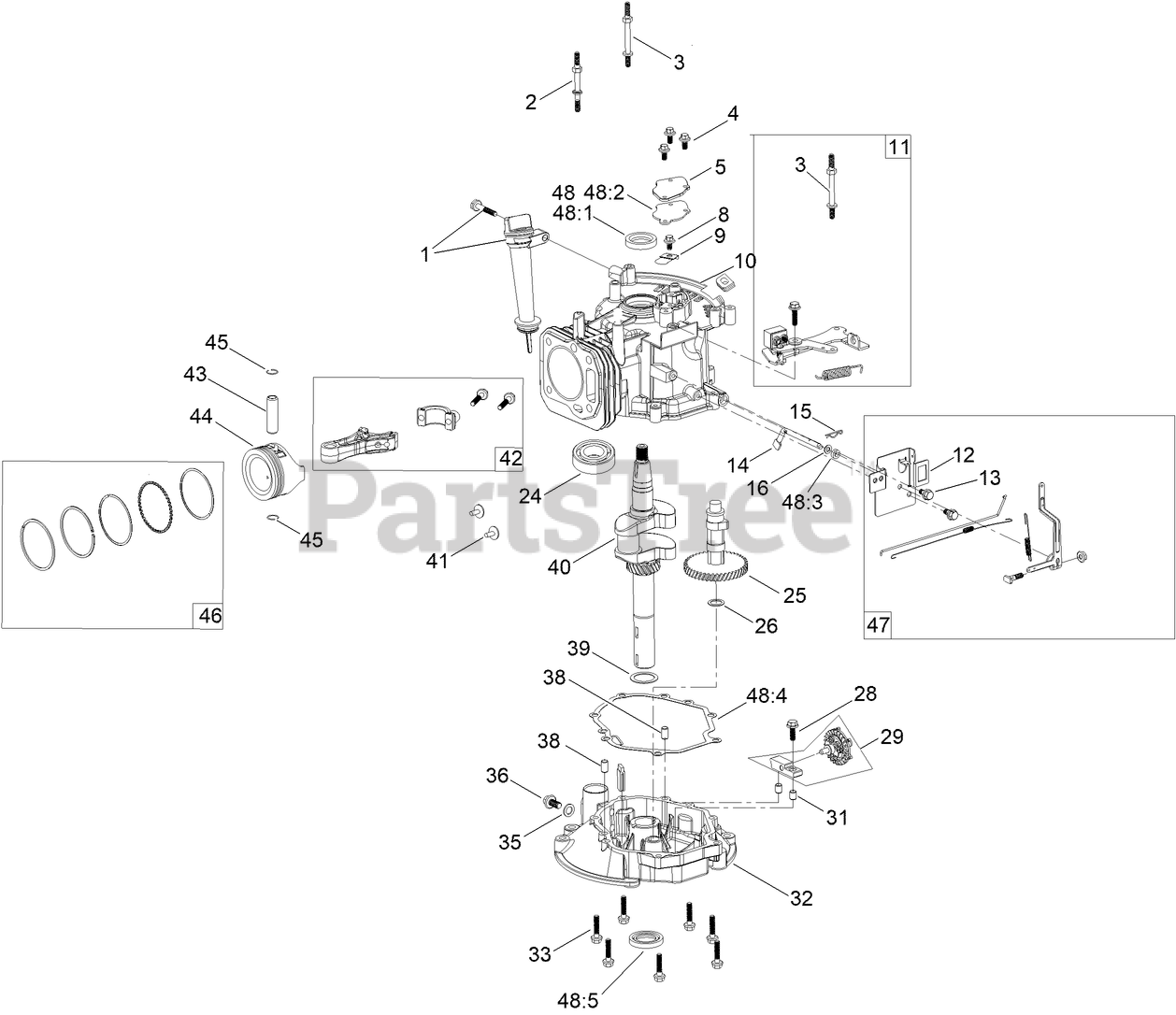

Crankcase Assembly Parts Diagram

  • Title

1

Toro 121-4279

DIPSTICK AND FILL TUBE KIT

$19.99

$

Usually ships in 3-6 days

0

2

Toro 121-0058

BOLT-STUD

$

$

Currently unavailable

3

Toro 121-0059

BOLT-STUD

$

$

Currently unavailable

4

Toro 121-0044

SCREW-HHF

$1.49

$

Usually ships in 3-6 days

0

5

Toro 121-0032

COVER-PUMP, OIL

$

$

Currently unavailable

8

Toro 121-0041

BOLT-FLANGE

$

$

Currently unavailable

9

Toro 120-4263

VALVE-REED

$10.99

$

Usually ships in 3-6 days

0

10

Toro 121-0371

CRANKCASE

$

$

Not available

11

Toro 119-1991

BRAKE ASM RECOIL KIT

$45.99

$

Usually ships in 3-6 days

0

12

Toro 121-0026

CONTROL ASM

$

$

Currently unavailable

13

Toro 120-4216

SCREW-HHF

$1.49

$

Usually ships in 3-6 days

0

14

Toro 136-7865

ARM-GOVERNOR

$3.99

$

Usually ships in 3-6 days

0

15

Toro 120-4256

PIN-HAIR

$1.49

$

Usually ships in 3-6 days

0

16

Toro 136-7866

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

24

Toro 121-0056

BEARING-BALL

$19.99

$

Usually ships in 3-6 days

0

25

Toro 121-4174

CAMSHAFT ASM

$23.99

$

Usually ships in 3-6 days

0

26

Toro 121-0051

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

28

Toro 121-0007

BOLT-FLANGE

$1.49

$

Usually ships in 3-6 days

0

29

Toro 136-7903

GOVERNOR GEAR ASM

$11.99

$

Usually ships in 3-6 days

0

31

Toro 121-0055

PIN-DOWEL

$1.99

$

In Stock, only 1 left!

0

32

Toro 121-0031

COVER-CRANKCASE

$

$

Currently unavailable

33

Toro 121-0040

BOLT-FLANGE

$

$

Currently unavailable

35

Toro 121-0048

WASHER-PLAIN

$1.49

$

Usually ships in 3-6 days

0

36

Toro 121-0030

SCREW-HHF

$3.49

$

Usually ships in 3-6 days

0

38

Toro 121-0054

PIN-DOWEL

$1.99

$

Usually ships in 3-6 days

0

39

Toro 136-7863

WASHER-FLAT

$2.99

$

Usually ships in 3-6 days

0

40

Toro 147-7105

CRANKSHAFT ASM

$

$

Currently unavailable

41

Toro 120-4477

TAPPET-VALVE

$4.99

$

Usually ships in 3-6 days

0

42

Toro 120-4469

CONNECTING ROD ASM

$31.99

$

Usually ships in 3-6 days

0

43

Toro 120-4467

PIN-PISTON

$3.99

$

Usually ships in 3-6 days

0

44

Toro 121-4173

PISTON

$26.99

$

Usually ships in 3-6 days

0

45

Toro 121-0052

CLIP-PIN, WRIST

$0.99

$

Usually ships in 3-6 days

0

46

Toro 121-4171

PISTON RING SET

$25.99

$

Usually ships in 3-6 days

0

47

Toro 119-1968

GOVERNOR ARM KIT

$28.99

$

Usually ships in 3-6 days

0

48

Toro 127-9144

SEAL AND GASKET KIT

$47.99

$

Usually ships in 3-6 days

0

48:1

Toro 121-0019

SEAL-OIL

$1.99

$

In Stock, only 3 left!

0

48:2

Toro 121-0020

GASKET-BREATHER

$1.99

$

Usually ships in 3-6 days

0

48:3

Toro 121-0021

SEAL-OIL

$1.99

$

Usually ships in 3-6 days

0

48:4

Toro 120-4459

GASKET-COVER, CASE

$9.49

$

Usually ships in 3-6 days

0

48:5

Toro 121-0022

SEAL-OIL

$2.49

$

In Stock, only 2 left!

0
