20949 - Toro 46cm Walk-Behind Mower (SN: 324000001 - 324999999) (2024) Shroud, Flywheel and Fuel Assembly Parts Diagram

46cm Walk-Behind Mower

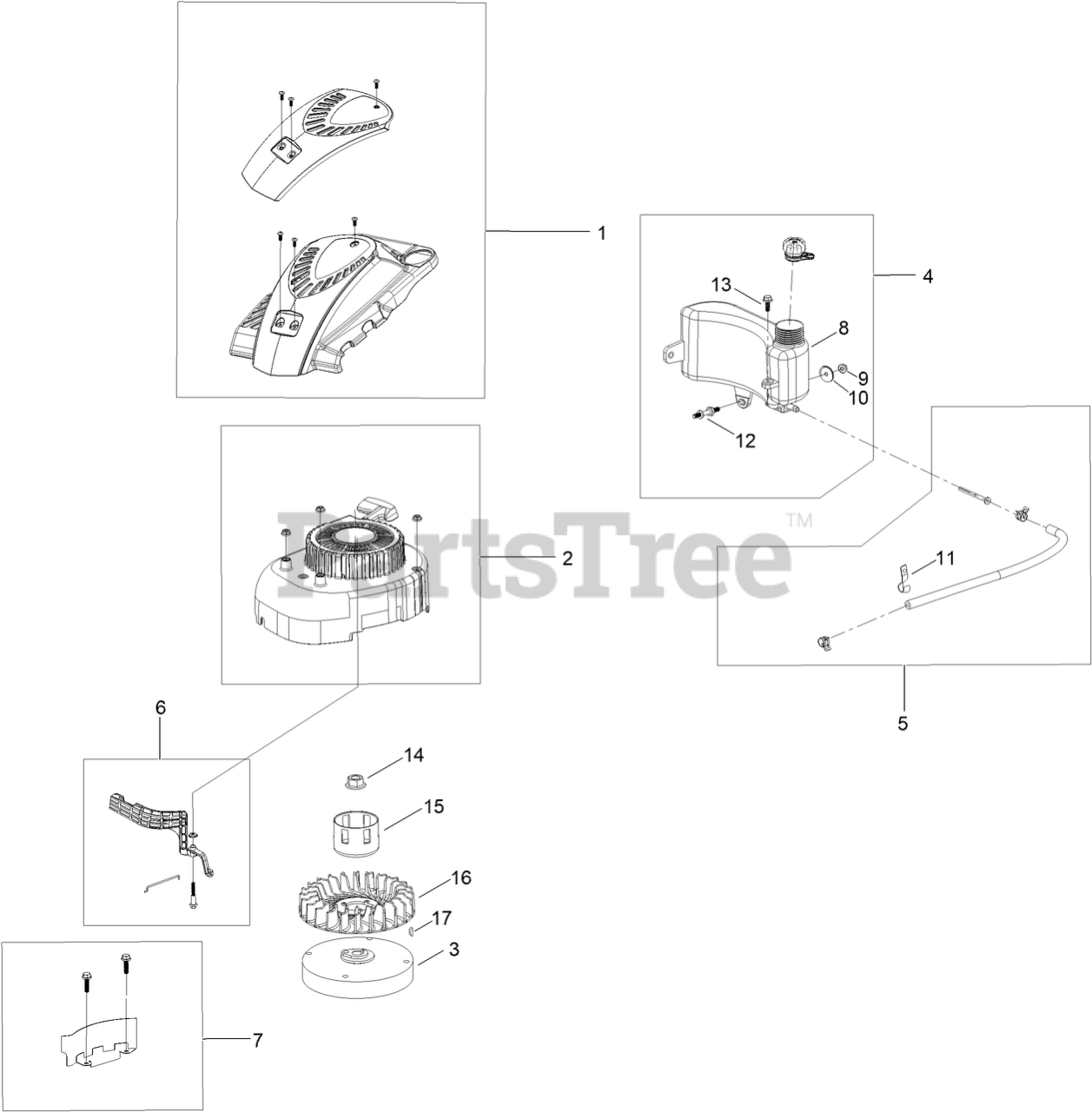

Shroud, Flywheel and Fuel Assembly Parts Diagram

  • Title

1

Toro 119-1990

SHROUD ASM

$80.99

$

Usually ships in 3-6 days

0

2

Toro 121-4160

RECOIL AND BLOWER SHROUD KIT

$64.99

$

In Stock, only 4 left!

0

3

Toro 147-7106

FLYWHEEL

$

$

Currently unavailable

4

Toro 144-1019

CAP-FUEL

$

$

Currently unavailable

5

Toro 121-4167

FUEL LINE KIT

$31.99

$

In Stock, only 2 left!

0

6

Toro 121-4168

AIR VANE KIT

$14.99

$

In Stock, Qty 7

0

7

Toro 119-1994

FLYWHEEL SHIELD KIT

$13.99

$

Usually ships in 3-6 days

0

8

Toro 121-4164

TANK-FUEL

$

$

Currently unavailable

9

Toro 121-0010

NUT-FLANGE

$1.49

$

Usually ships in 3-6 days

0

10

Toro 121-0203

WASHER-FLAT

$

$

Currently unavailable

11

Toro 121-0017

CLIP-HARNESS, WIRE

$2.49

$

Usually ships in 3-6 days

0

12

Toro 121-0016

BOLT-STUD

$2.49

$

Usually ships in 3-6 days

0

13

Toro 121-0007

BOLT-FLANGE

$1.49

$

Usually ships in 3-6 days

0

14

Toro 121-0047

NUT-FLANGE

$4.49

$

Usually ships in 3-6 days

0

15

Toro 121-0035

CUP-STARTER

$

$

Currently unavailable

16

Toro 120-4480

FAN

$

$

Currently unavailable

17

Toro 120-4320

KEY-WOODRUFF

$3.49

$

In Stock, only 2 left!

0
