20952 - Toro 48cm Recycler Walk-Behind Mower (SN: 313000001 - 313999999) (2013) Shroud, Flywheel and Fuel Tank Assembly Parts Diagram

48cm Recycler Walk-Behind Mower

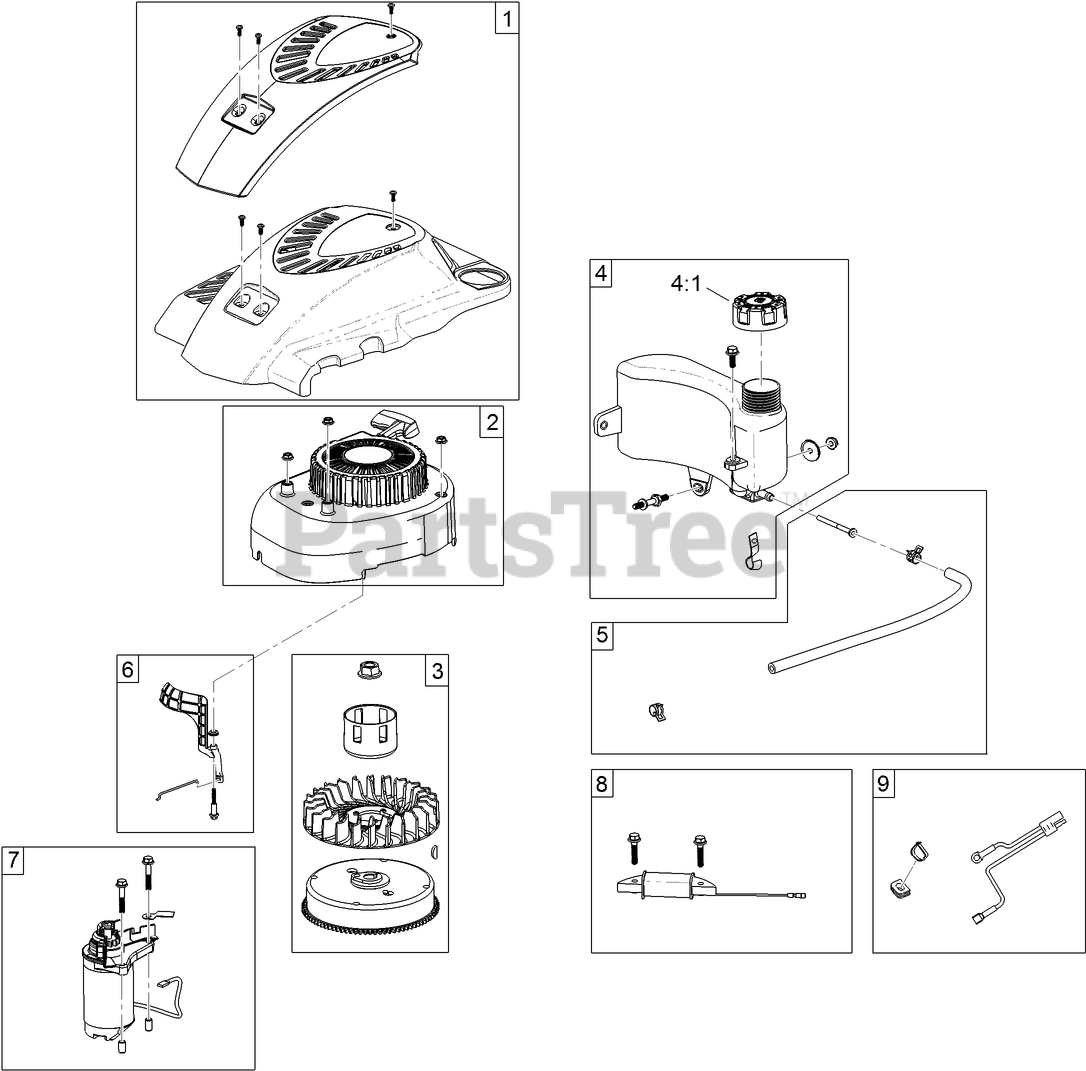

Shroud, Flywheel and Fuel Tank Assembly Parts Diagram

  • Title

1

Toro 119-1990

SHROUD ASM

$80.99

$

Usually ships in 3-6 days

0

2

Toro 121-4213

RECOIL AND BLOWER SHROUD KIT

$64.99

$

Usually ships in 3-6 days

0

3

Toro 121-0391

FLYWHEEL AND FAN KIT

$115.99

$

Usually ships in 3-6 days

0

4

Toro 119-1915

FUEL TANK KIT (CAP AND HARDWARE)

$102.99

$

Usually ships in 3-6 days

0

4:1

Toro 119-1914

CAP-FUEL
(Superseded to 121-4253)

$22.99

$

In Stock, only 2 left!

0

5

Toro 121-4167

FUEL LINE KIT

$31.99

$

In Stock, only 2 left!

0

6

Toro 119-1966

AIR VANE CHOKE KIT

$15.99

$

In Stock, only 2 left!

0

7

Toro 121-0393

See Supercession: 136-7906
(Superseded to 136-7906)

$255.99

$

Usually ships in 3-6 days

0

8

Toro 121-0392

ALTERNATOR KIT
(Superseded to 136-7905)

$51.99

$

Usually ships in 3-6 days

0

9

Toro 121-0395

WIRE HARNESS KIT

$45.99

$

Usually ships in 3-6 days

0
