20952 - Toro 48cm Recycler Walk-Behind Mower (SN: 316000001 - 316999999) (2016) HANDLE ASSEMBLY Parts Diagram

48cm Recycler Walk-Behind Mower

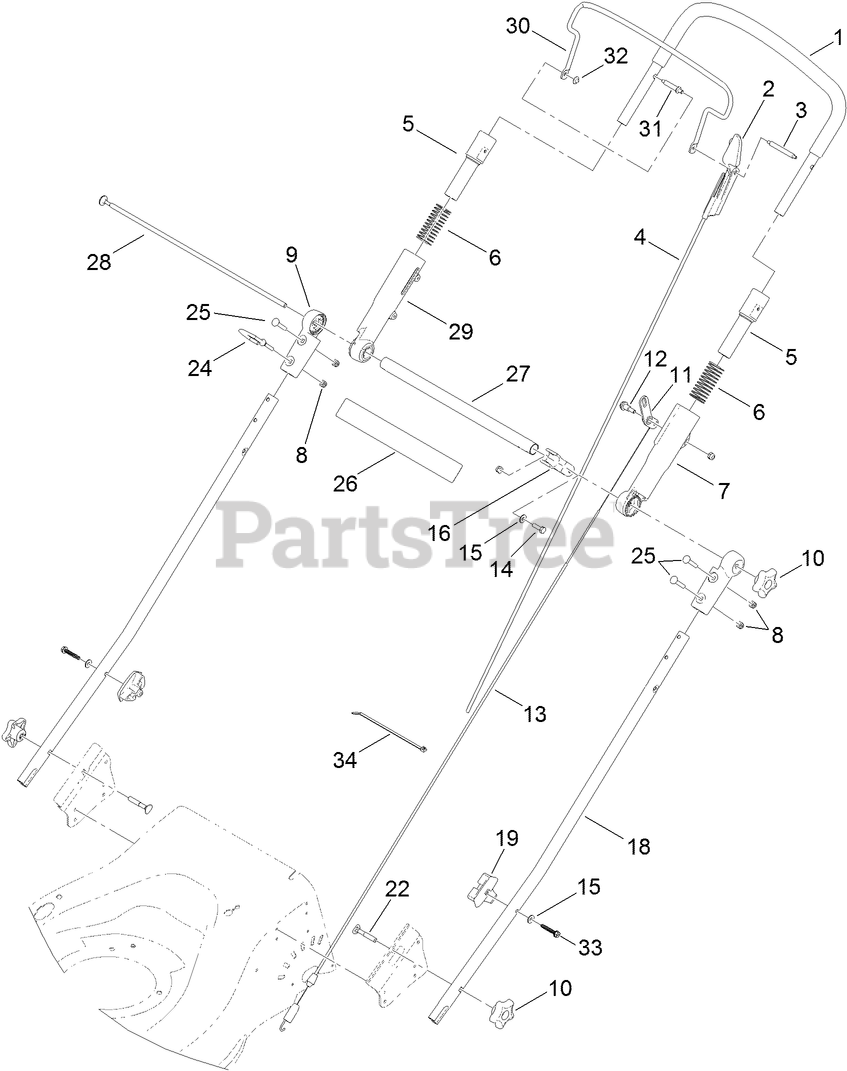

HANDLE ASSEMBLY Parts Diagram

  • Title
1

Toro Part# 108-0974

UPPER HANDLE ASM
Usually ships in 1 day

$

$67.87

0

2

Toro Part# 112-8764

STOP-PIVOT
Usually ships in 1 day

$

$3.78

0

3

Toro Part# 108-1008

PIN-BAIL, LH
Usually ships in 1 day

$

$5.22

0

4

Toro Part# 107-3903

CABLE-BRAKE
Usually ships in 1 day

$

$39.68

0

5

Toro Part# 112-8754

SLEEVE-INNER
Usually ships in 1 day

$

$5.32

0

6

Toro Part# 107-3869

SPRING-COMPRESSION
Usually ships in 1 day

$

$1.10

0

7

Toro Part# 112-1544

SLEEVE-OUTER, LH
Usually ships in 1 day

$

$13.19

0

8

Toro Part# 3296-73

NUT-LOCK, NI
Usually ships in 1 day

$

$3.21

0

9

Toro Part# 107-3865

MOUNT-HANDLE, LOWER
Usually ships in 1 day

$

$9.94

0

10

Toro Part# 117-5976

KNOB-HANDLE
Usually ships in 1 day

$

$2.23

0

11

Toro Part# 107-3893

LEVER-TRACTION
Usually ships in 1 day

$

$2.99

0

12

Toro Part# 104-0858

BOLT-SHOULDER
Usually ships in 1 day

$

$4.10

0

13

Toro Part# 110-9162

CABLE-TRACTION
Usually ships in 5 to 8 days

$

$50.78

0

14

Toro Part# 321-5

SCREW-HH
Usually ships in 1 day

$

$0.39

0

15

Toro Part# 3256-1

WASHER-FLAT
Usually ships in 1 day

$

$0.44

0

16

Toro Part# 112-8801

CLAMP-CABLE
Usually ships in 1 day

$

$9.05

0

18

Toro Part# 120-0187

TUBE-HANDLE
Usually ships same day

Currently unavailable

$

$

19

Toro Part# 112-3928

ANCHOR-BAG
Usually ships same day

Not available

$

$

22

Toro Part# 112-8876

SCREW-HANDLE
(Superseded to 92-2260)
Usually ships in 1 day

$

$3.34

0

24

Toro Part# 107-3908

GUIDE-ROPE, UPPER
Usually ships in 1 day

$

$3.33

0

25

Toro Part# 108-0988

SCREW-CARR
Usually ships in 1 day

$

$0.75

0

26
Usually ships in 5 to 8 days

$

$7.02

0

27
Usually ships in 5 to 8 days

$

$20.15

0

28

Toro Part# 107-3871

ROD-THREADED
Usually ships in 5 to 8 days

$

$15.38

0

29

Toro Part# 112-1545

SLEEVE-OUTER, RH
Usually ships in 1 day

$

$13.19

0

30
Usually ships in 5 to 8 days

$

$20.62

0

31

Toro Part# 108-0959

PIN-HANDLE
Usually ships in 1 day

$

$5.22

0

32

Toro Part# 108-9378

RETAINER-PUSH ON
Usually ships in 1 day

$

$1.10

0

33

Toro Part# 108-4946

SCREW-PLASTITE
Usually ships same day

Not available

$

$

34

Toro Part# 614249

TIE-CABLE
Usually ships in 1 day

$

$0.83

0
