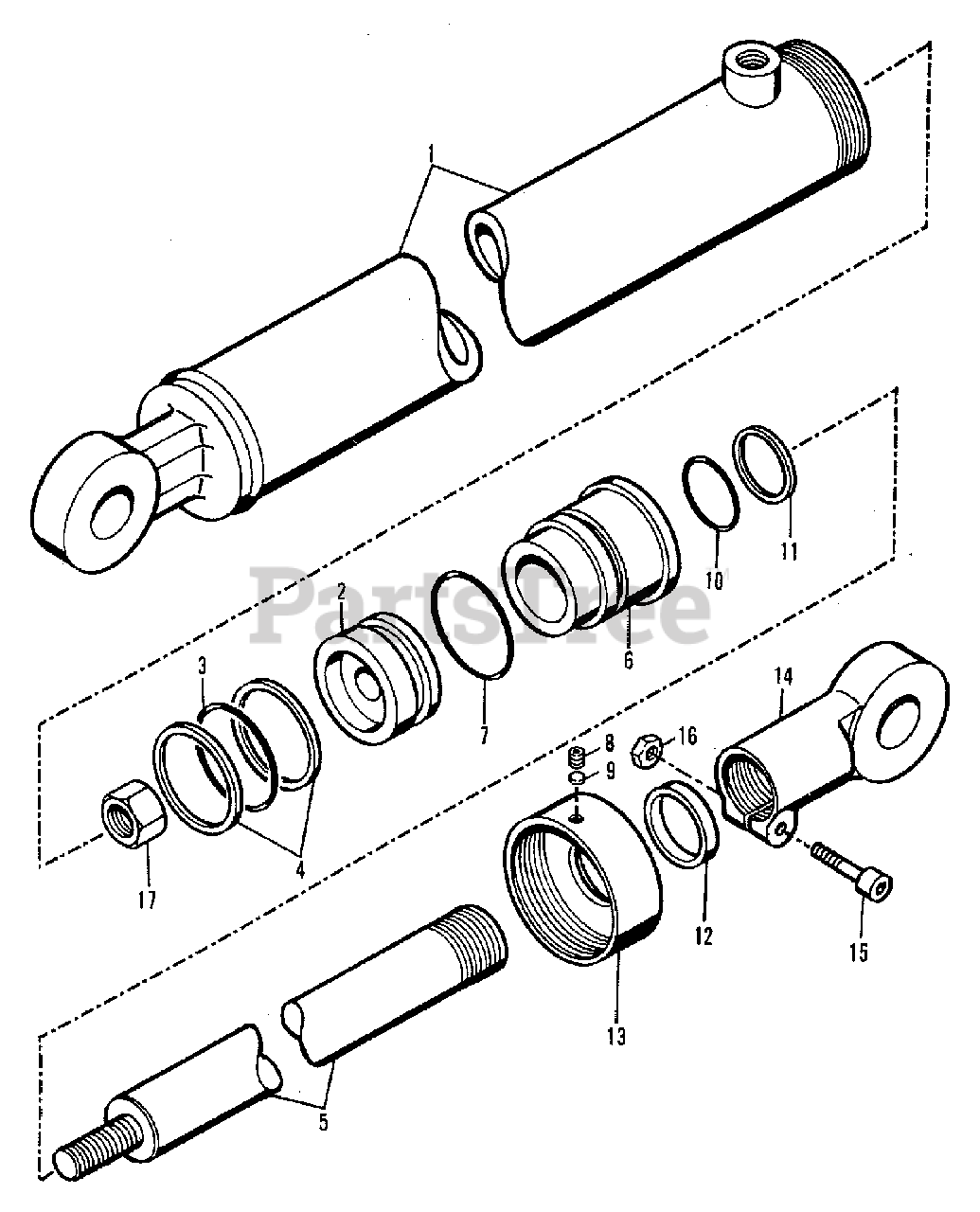

2096100 - Simplicity Model 430 Loader Cylinders - Lift Prior S/N 1692 Group (3482I43) Parts Diagram

Model 430 Loader

Cylinders - Lift Prior S/N 1692 Group (3482I43) Parts Diagram

  • Title

-

Simplicity 2096005-0

CYLINDER ASSEMBLY, Complete

$

$

Not available

-

Simplicity 2096013-4

SEAL KIT, Cylinder

$

$

Not available

1

Simplicity 2096012-6

TUBE ASSEMBLY

$

$

Not available

2

Simplicity 2096010-0

PISTON

$

$

Not available

3

O-RING, Piston

$

$

Not available

4

WASHER, Backup, Large

$

$

Not available

5

Simplicity 2096009-2

ROD, Piston

$

$

Not available

6

Simplicity 2096007-6

GUIDE, Rod

$

$

Not available

7

O-RING, Rod Guide, Large

$

$

Not available

8

Simplicity 2096006-8

SETSCREW, Tube Cap

$

$

Not available

9

Simplicity 2096135-5

PLUG, Nylon

$

$

Not available

10

O-RING, Rod Guide, Small

$

$

Not available

11

WASHER, Backup, Small

$

$

Not available

12

WIPER, Rod

$

$

Not available

13

Simplicity 2096136-3

CAP, Tube & Rod

$

$

Not available

14

Simplicity 2096084-5

EYE, Piston Rod

$

$

Not available

15

Simplicity 2096139-7

CAPSCREW, Rod Eye

$

$

Not available

16

Simplicity 2096138-9

NUT, Capscrew (Rod Eye)

$

$

Not available

17

Simplicity 2096137-1

NUT, Piston Rod

$

$

Not available
