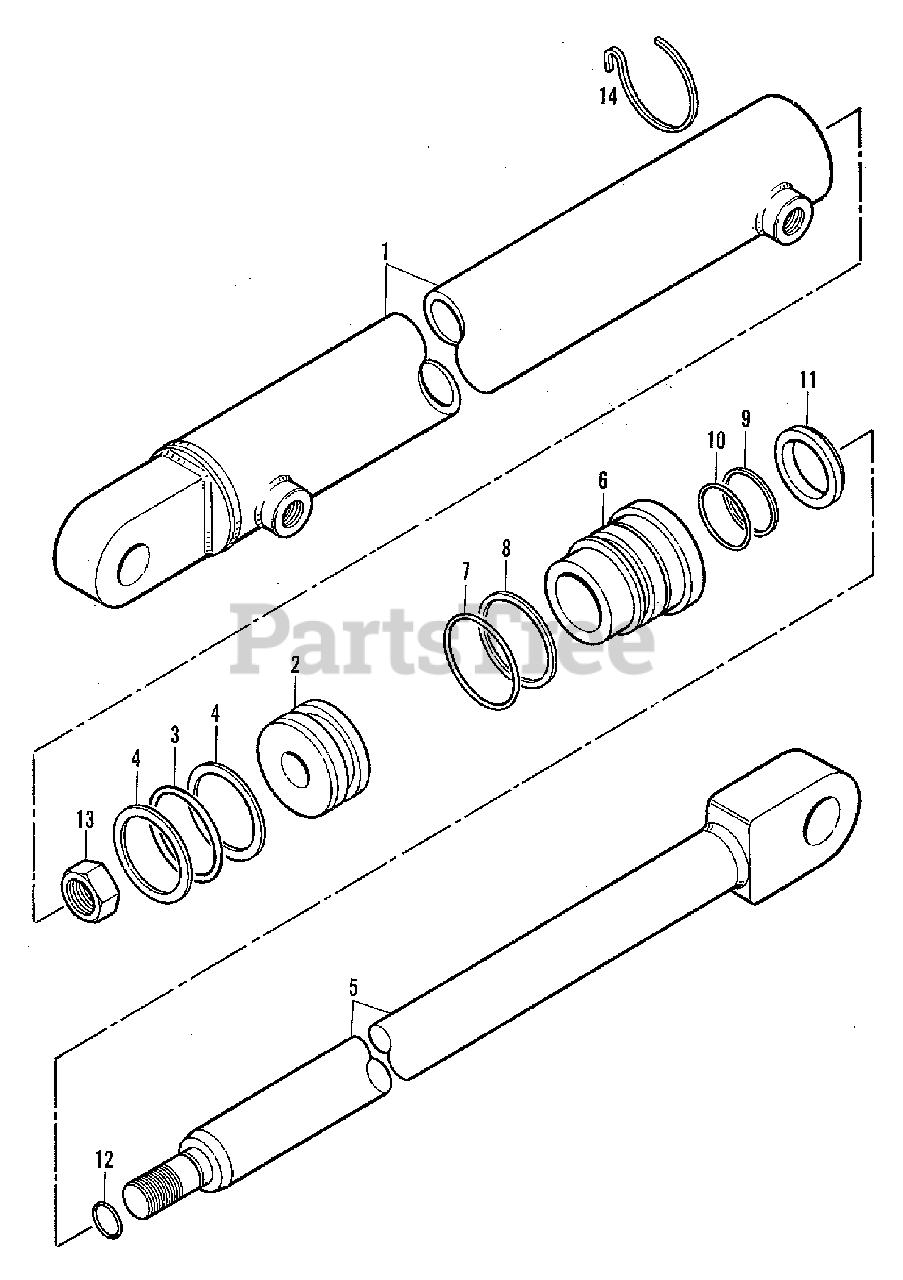

2096100 - Simplicity Model 430 Loader Cylinders - Tilt Eff. S/N 1692 Group (3482I46) Parts Diagram

Model 430 Loader

Cylinders - Tilt Eff. S/N 1692 Group (3482I46) Parts Diagram

  • Title

-

Simplicity 2096113-2

CYLINDER ASSEMBLY, Complete

$

$

Not available

-

Simplicity 2096115-7

SEAL KIT

$

$

Not available

1

Simplicity 2096120-7

TUBE ASSEMBLY

$

$

Not available

2

Simplicity 2096119-9

PISTON

$

$

Not available

3

O-RING, Piston

$

$

Not available

4

WASHER, Backup, Large

$

$

Not available

5

Rod, Piston

$

$

Not available

6

Simplicity 2096117-3

HEAD

$

$

Not available

7

Simplicity 2096116-5

O-RING, Static

$

$

Not available

8

WASHER, Backup, Static

$

$

Not available

9

WASHER, Backup, Rod

$

$

Not available

10

O-RING, Rod

$

$

Not available

11

WIPER, Rod

$

$

Not available

12

O-RING, Piston Rod

$

$

Not available

13

NUT, Lock, Piston Rod

$

$

Not available

14

RING, Retaining, Head

$

$

Not available
