2096100 - Simplicity Model 430 Loader Frames - Boom Group (3482I37) Parts Diagram

Model 430 Loader

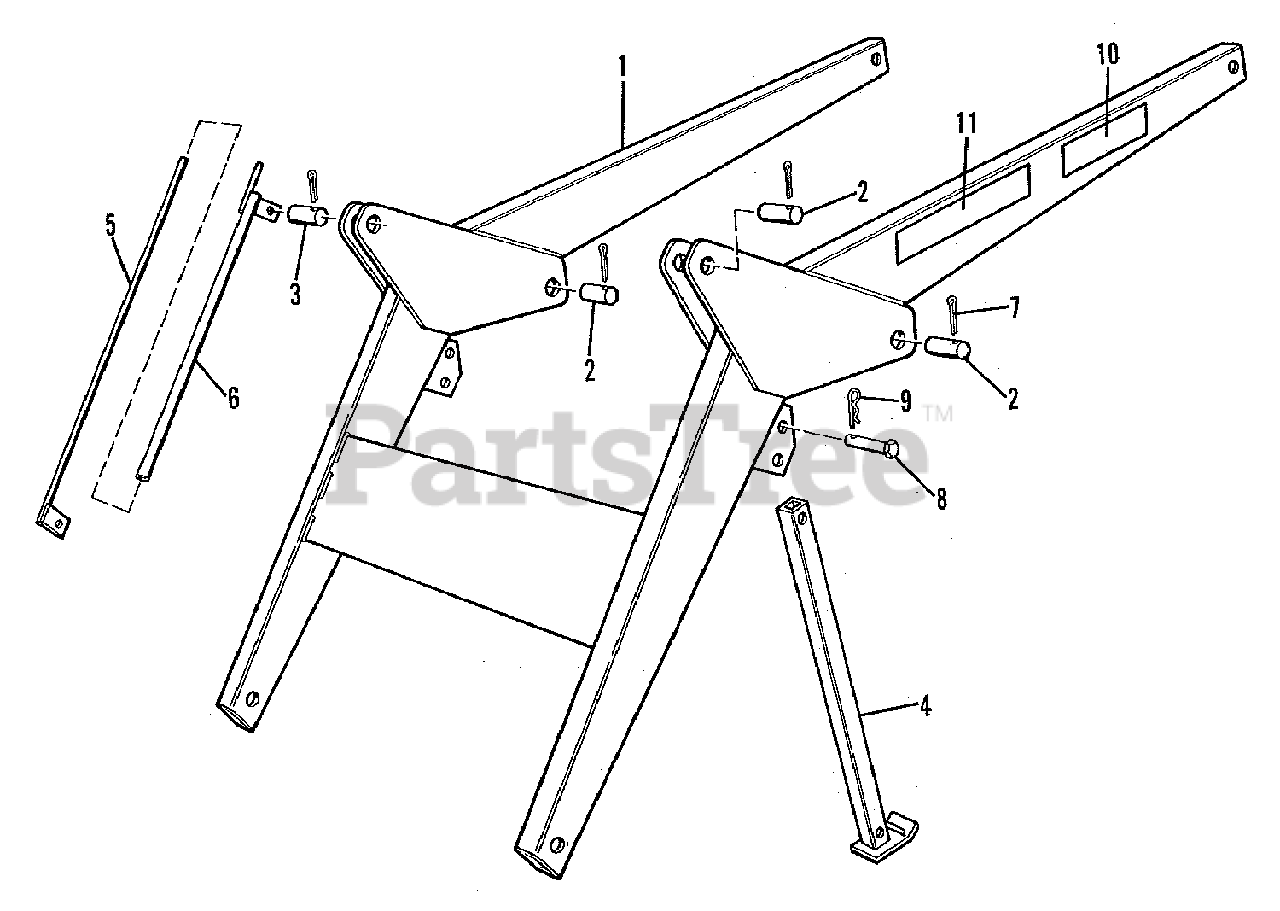

Frames - Boom Group (3482I37) Parts Diagram

  • Title

1

Simplicity 2096061-3

BOOM ASSEMBLY

$

$

Not available

2

Simplicity 2096062-1

PIN, Cylinder & Boom

$

$

Not available

3

Simplicity 2096066-2

PIN ASSEMBLY

$

$

Not available

3

Simplicity 0918188-4

FITTING, Lube, 1/4 x 90 Degrees

$

$

Not available

4

Simplicity 2096074-6

STAND, Parking

$

$

Not available

5

Simplicity 2096069-6

ROD, Bucket Indicator

$

$

Not available

6

Simplicity 2096070-4

TUBE ASSEMBLY, Bucket Indicator

$

$

Not available

7

Simplicity 2096083-7

PIN, Retaining

$

$

Not available

8

Simplicity 2096075-3

PIN, Parking Stand

$

$

Not available

9

Simplicity 9002801-0

CLIP, Hairpin

$

$

Not available

10

Simplicity 0593364-3

DECAL (Model Identification)

$

$

Not available

11

Simplicity 0579111-6

DECAL (Allis-Chalmers)

$

$

Not available
