2096100 - Simplicity Model 430 Loader Frames - Side Frames & Supports Group (3482I36) Parts Diagram

Model 430 Loader

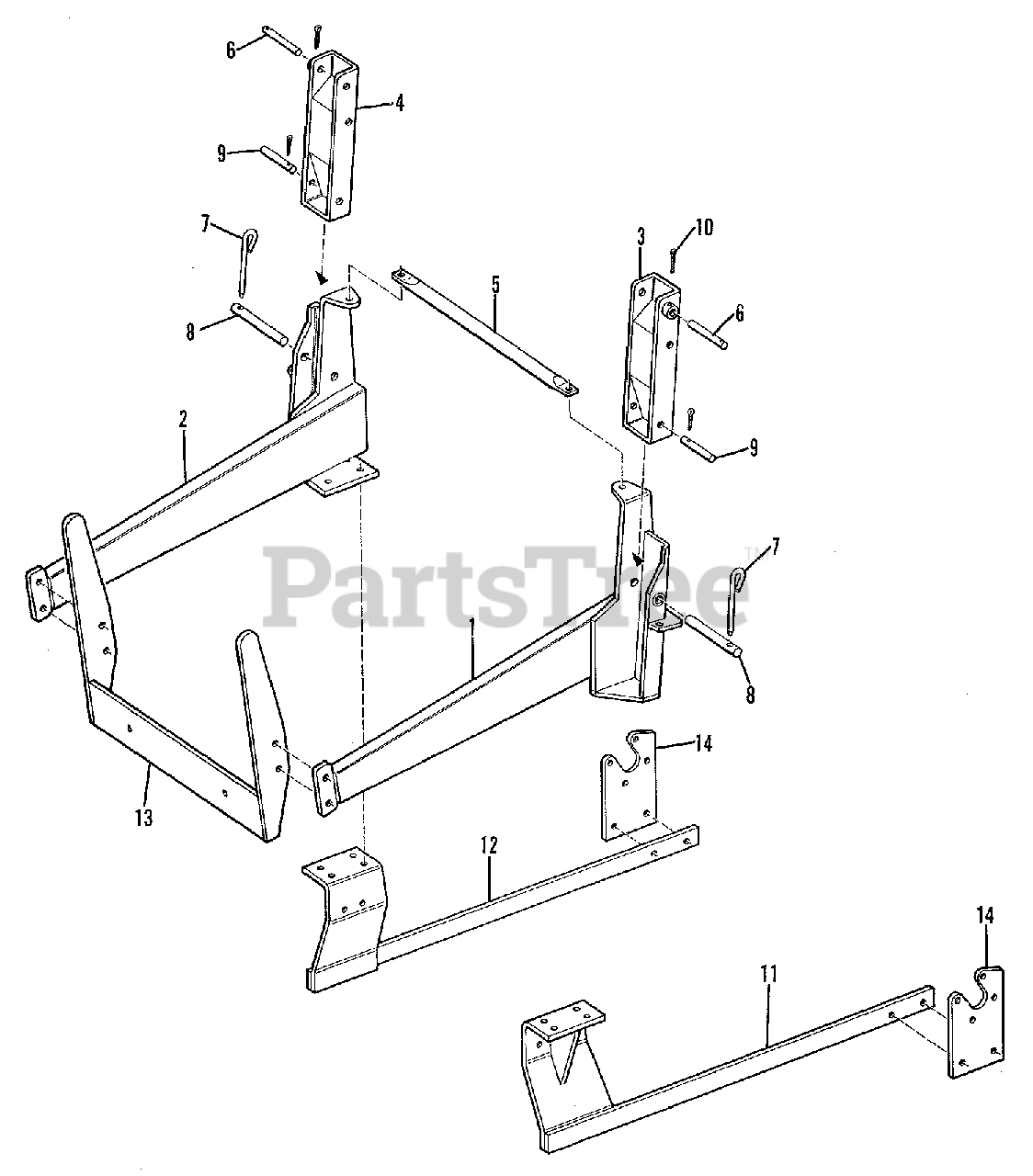

Frames - Side Frames & Supports Group (3482I36) Parts Diagram

  • Title

1

Simplicity 2096078-7

FRAME ASSEMBLY, L.H.

$

$

Not available

1

Simplicity 0920328-2

CAPSCREW, 1/2NC x 1-1/2

$

$

Not available

1

Simplicity 0916966-5

LOCKWASHER, 1/2

$

$

Not available

1

Simplicity 0916951-7

NUT, 1/2NC

$

$

Not available

2

Simplicity 2096079-5

FRAME ASSEMBLY, R.H.

$

$

Not available

2

Simplicity 0920328-2

CAPSCREW, 1/2NC x 1-1/2

$

$

Not available

2

Simplicity 0916966-5

LOCKWSHER, 1/2

$

$

Not available

2

Simplicity 0916951-7

NUT, 1/2NC

$

$

Not available

3

Simplicity 2096076-1

SUPPORT ASSEMBLY, L.H.

$

$

Not available

3

Simplicity 0920328-2

CAPSCREW, 1/2NC x 1-1/2

$

$

Not available

3

Simplicity 0916966-5

LOCKWASHER, 1/2

$

$

Not available

3

Simplicity 0916951-7

NUT, 1/2NC

$

$

Not available

4

Simplicity 2096077-9

SUPPORT ASSEMBLY, R.H.

$

$

Not available

4

Simplicity 0920328-2

CAPSCREW, 1/2NC x 1-1/2

$

$

Not available

4

Simplicity 0916966-5

LOCKWASHER, 1/2

$

$

Not available

4

Simplicity 0916951-7

NUT, 1/2NC

$

$

Not available

5

Simplicity 2096072-0

BRACE, Cross

$

$

Not available

5

Simplicity 0920328-2

CAPSCREW, 1/2NC x 1-1/2

$

$

Not available

5

Simplicity 0916966-5

LOCKWASHER, 1/2

$

$

Not available

5

Simplicity 0916951-7

NUT, 1/2NC

$

$

Not available

6

Simplicity 2096063-9

PIN, Boom Pivot

$

$

Not available

7

Simplicity 2096071-2

PIN, Locking, Support Assembly

$

$

Not available

8

Simplicity 2096065-4

PIN, Attaching, Support Assembly

$

$

Not available

9

Simplicity 2096064-7

PIN, Cylinder, Rear

$

$

Not available

10

Simplicity 2096083-7

PIN, Retaining

$

$

Not available

11

Simplicity 2096080-3

PAD ASSEMBLY, L.H. Mouting

$

$

Not available

11

Simplicity 2096149-6

CAPSCREW, Attaching

$

$

Not available

11

Simplicity 0920326-6

LOCKWASHER, 9/16

$

$

Not available

12

Simplicity 2096081-1

PAD ASSEMBLY, R.H. Mouting

$

$

Not available

12

Simplicity 2096149-6

CAPSCREW, Attaching

$

$

Not available

12

Simplicity 0920326-6

LOCKWASHER, 9/16

$

$

Not available

13

Simplicity 2096082-9

SUPPORT ASSEMBLY, Front

$

$

Not available

14

Simplicity 2096092-8

BRACKET, Axle Mounting

$

$

Not available

14

Simplicity 0932226-4

CAPSCREW, Attaching

$

$

Not available

14

Simplicity 0916966-5

LOCKWASHER, 1/2

$

$

Not available

14

Simplicity 2096101-7

BRACKET, Axle Mounting

$

$

Not available

14

Simplicity 2096102-5

U-BOLT, Axle Mounting

$

$

Not available

14

Simplicity 0916966-5

LOCKWASHER, 1/2

$

$

Not available

14

Simplicity 0916951-7

NUT, 1/2NC

$

$

Not available
