2096100 - Simplicity Model 430 Loader Hydraulic Lines - Cylinders & Control Vavle Group (3482I38) Parts Diagram

Model 430 Loader

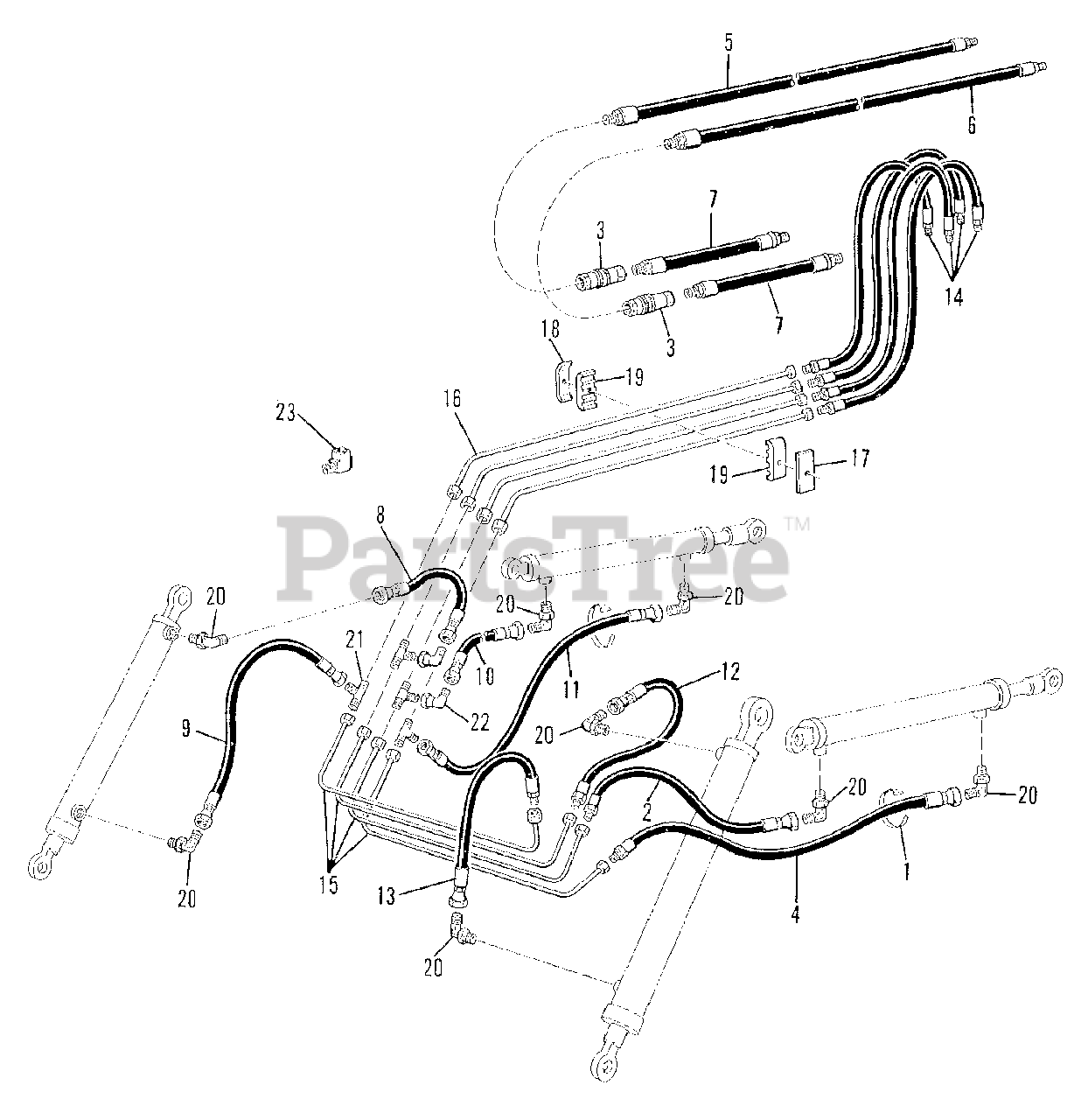

Hydraulic Lines - Cylinders & Control Vavle Group (3482I38) Parts Diagram

  • Title

1

Simplicity 2096042-3

STRAP, Tie

$

$

Not available

2

Simplicity 2096123-1

HOSE ASSEMBLY (Left Lift Cylinder at Base End Position)

$

$

Not available

3

Simplicity 2096043-1

COUPLER, Hose

$

$

Not available

4

Simplicity 2096124-9

HOSE ASSEMBLY (Left Lift Cylinder at Rod End Position)

$

$

Not available

5

Simplicity 2096125-6

HOSE ASSEMBLY, Pressure

$

$

Not available

6

Simplicity 2096126-4

HOSE ASSEMBLY, Return

$

$

Not available

7

Simplicity 2096127-2

HOSE ASSEMBLY, Valve Inlet & Outlet

$

$

Not available

8

Simplicity 2096128-0

HOSE ASSEMBLY (Right Tilt Cylinder at Base End Position)

$

$

Not available

9

Simplicity 2096129-8

HOSE ASSEMBLY (Right Tilt Cylinder at Rod End Position)

$

$

Not available

10

Simplicity 2096129-8

HOSE ASSEMBLY (Right Lift Cylinder at Base End Position)

$

$

Not available

11

Simplicity 2096130-6

HOSE ASSEMBLY (Right Lift Cylinder at Base End Position)

$

$

Not available

12

Simplicity 2096131-4

HOSE ASSEMBLY (Left Tilt cylinder at Base End Position

$

$

Not available

13

Simplicity 2096131-4

HOSE ASSEMBLY (Left Tilt Cylinder at Rod End Position)

$

$

Not available

14

Simplicity 2096112-4

HOSE ASSEMBLY, Valve Operating (Prior to S/N 1576)

$

$

Not available

14

Simplicity 2096134-8

HOSE ASSEMBLY, Valve Operating (Eff. With S/N 1576)

$

$

Not available

15

Simplicity 2096056-3

TUBE ASSEMBLY, Cross

$

$

Not available

16

Simplicity 2096057-1

TUBE ASSEMBLY, Side

$

$

Not available

17

Simplicity 2096058-9

CLAMP, Tube

$

$

Not available

17

Simplicity 0921963-5

CAPSCREW, 1/4NC x 2

$

$

Not available

17

Simplicity 0919310-3

LOCKWASHER, 1/4

$

$

Not available

17

Simplicity 0916622-4

NUT, 1/4NC

$

$

Not available

18

Simplicity 2096059-7

BRACKET, Clamp

$

$

Not available

19

Simplicity 2096060-5

CUSHION, Clamp

$

$

Not available

20

Simplicity 0922523-6

ELBOW, Hose Adapter, 3/8 Tube O.D.

$

$

Not available

20

Simplicity 0921885-0

O-RING, 15/32 I.D.

$

$

Not available

21

Simplicity 0919087-7

TEE, 3/8 Tube O.D.

$

$

Not available

22

Simplicity 0921013-9

ELBOW, Swivel Adapter, 3/8 Tube O.D.

$

$

Not available

23

Simplicity 0925864-1

ELBOW, Street, 90 Degrees

$

$

Not available
