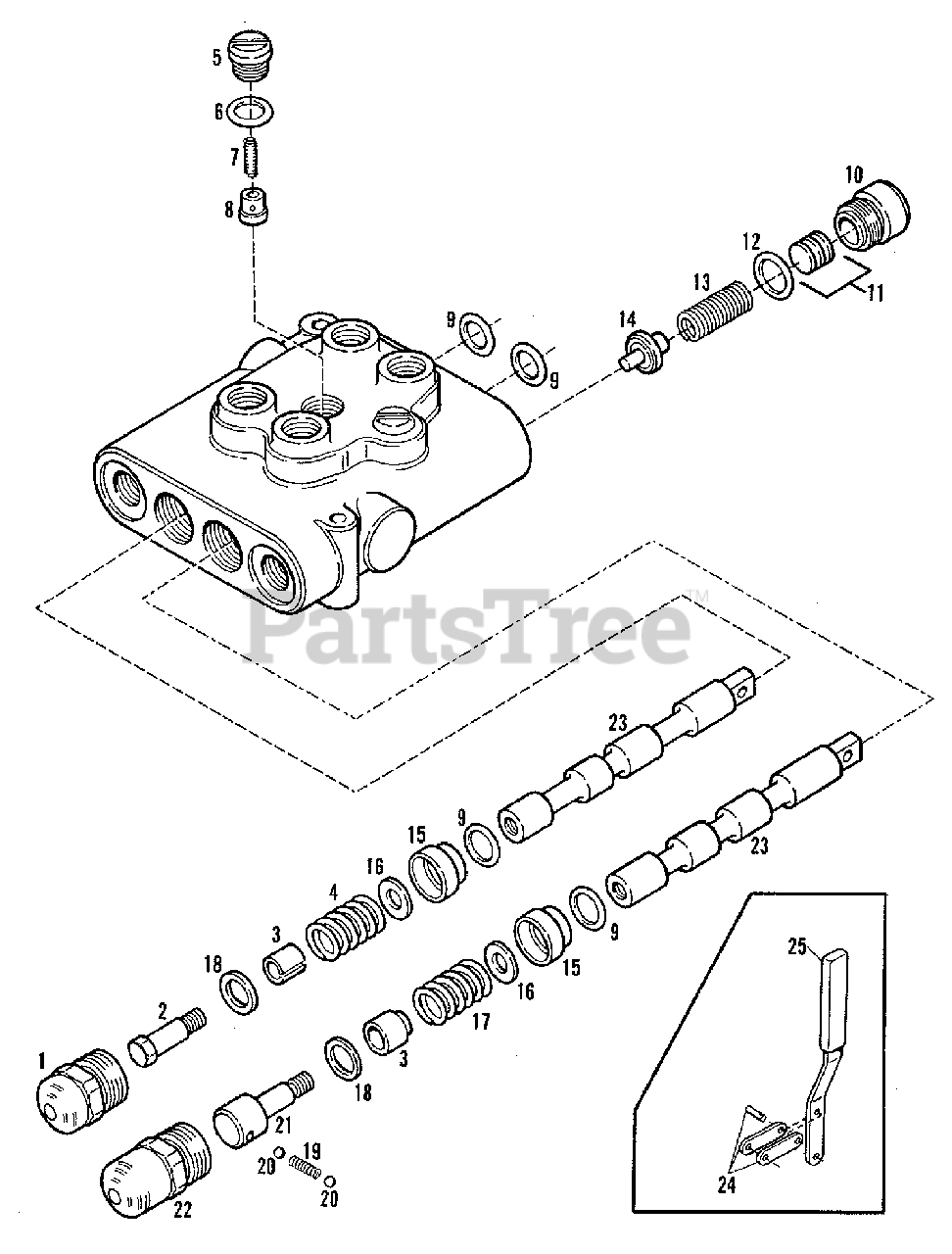

2096100 - Simplicity Model 430 Loader Valves - Control Prior to S/N 1576 Group (3482I40) Parts Diagram

Model 430 Loader

Valves - Control Prior to S/N 1576 Group (3482I40) Parts Diagram

  • Title

-

Simplicity 2096014-2

VALVE ASSEMBLY, Complete

$

$

Not available

1

Simplicity 2096214-8

CAP, Spool

$

$

Not available

2

Simplicity 2096141-3

SCREW, Spool

$

$

Not available

3

Simplicity 2096019-1

SPACER, Spool

$

$

Not available

4

Simplicity 2096022-5

SPRING, Spool Centering

$

$

Not available

5

Simplicity 2096147-0

PLUG ASSEMBLY, Lift Check

$

$

Not available

6

O-RING, Plug Assembly

$

$

Not available

7

Simplicity 2096018-3

SPRING, Lift Check Plug

$

$

Not available

8

Simplicity 2096017-5

PLUNGER, Lift Check Plug

$

$

Not available

9

O-RING, Spool

$

$

Not available

10

Simplicity 2096034-0

PLUG ASSEMBLY, Relief Valve

$

$

Not available

11

Simplicity 2096024-1

SHIM, Relief Valve

$

$

Not available

11

Simplicity 2096025-8

SHIM, Relief Valve

$

$

Not available

11

Simplicity 2096026-6

SHIM, Relief Valve

$

$

Not available

12

O-RING, Relief Valve Plug

$

$

Not available

13

Simplicity 2096033-2

SPRING, Relief Valve

$

$

Not available

14

Simplicity 2096023-3

POPPET, Relief Valve

$

$

Not available

15

Simplicity 2096021-7

BUSHING, Spool

$

$

Not available

16

Simplicity 2096039-9

WASHER, Spool

$

$

Not available

16

Simplicity 2096040-7

WASHER, Spool

$

$

Not available

17

Simplicity 2096029-0

SPRING, Spool Centering

$

$

Not available

18

Simplicity 2096031-6

WASHER, Spool

$

$

Not available

18

Simplicity 2096038-1

WASHER, Spool

$

$

Not available

19

Simplicity 2096035-7

SPRING, Detent

$

$

Not available

20

Simplicity 2096036-5

BALL, Detent Spring, 5/32 Diameter

$

$

Not available

21

Simplicity 2096140-5

SCREW, Detent

$

$

Not available

22

Simplicity 2096030-8

CAP ASSEMBLY, Detent Adapter

$

$

Not available

23

SPOOL

$

$

Not available

24

Simplicity 2096015-9

LINK ASSEMBLY, Valve

$

$

Not available

25

Simplicity 2096016-7

HANDLE ASSEMBLY, Valve

$

$

Not available

25

Simplicity 0922002-1

PIN, Cotter, 3/16 x 2

$

$

Not available

25

Simplicity 2096028-2

SEAL KIT, Valve O-Ring

$

$

Not available
