2096175 - Simplicity Model 415 Loader 48" Material Bucket Group (3482I34) Parts Diagram

Model 415 Loader

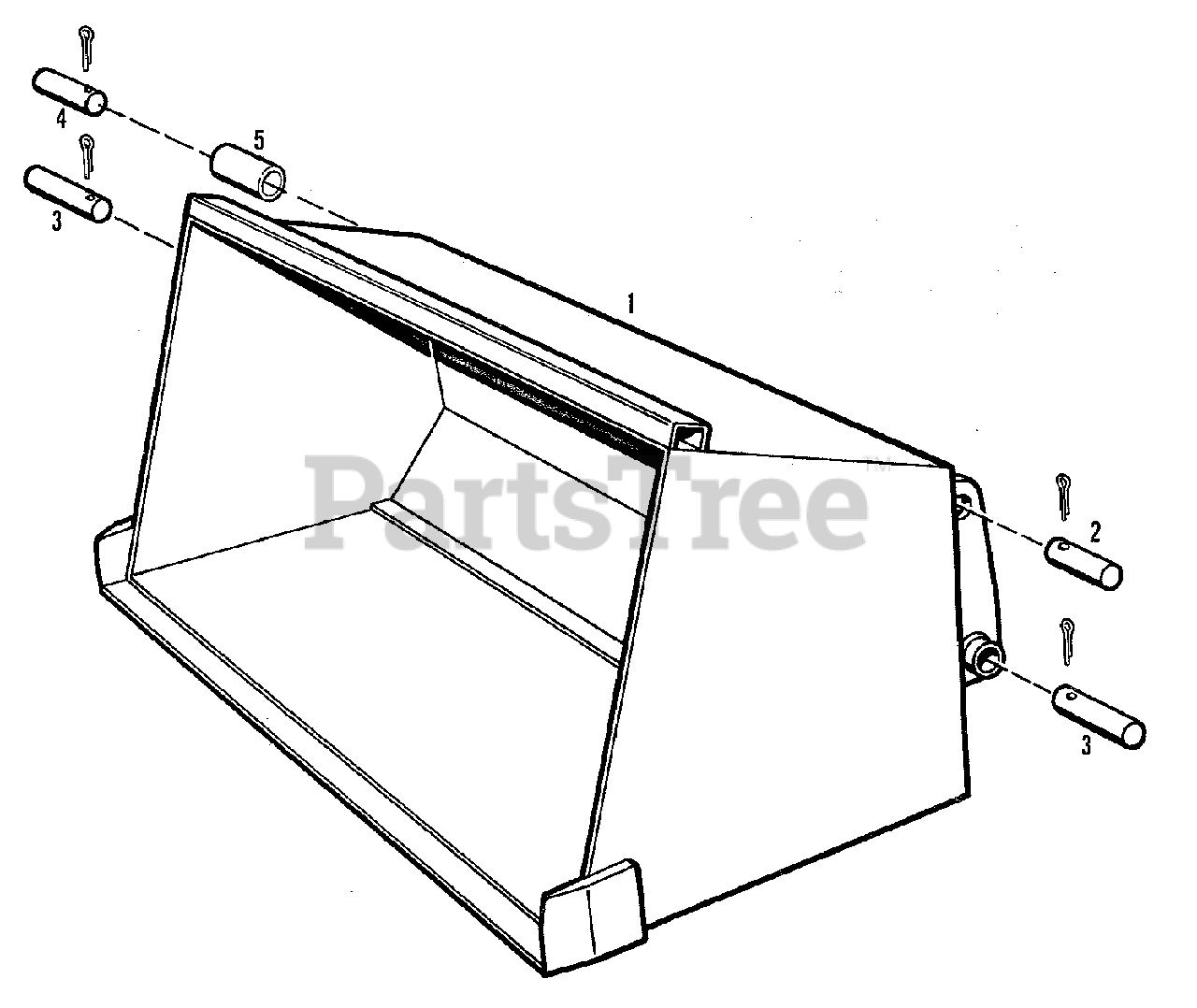

48" Material Bucket Group (3482I34) Parts Diagram

  • Title

1

Simplicity 2096180-1

BUCKET ASSEMBLY, Material

$

$

Not available

2

Simplicity 2096067-0

PIN, Attaching

$

$

Not available

2

Simplicity 0918551-3

PIN, Cotter, 1/4 x 2

$

$

Not available

3

Simplicity 2096068-8

PIN, Attaching

$

$

Not available

3

Simplicity 0918551-3

PIN, Cotter, 1/4 x 2

$

$

Not available

4

Simplicity 2096073-8

PIN, Attaching

$

$

Not available

4

Simplicity 0921965-0

CAPSCREW, 3/8NC x 3/4

$

$

Not available

4

Simplicity 0917642-1

WASHER, Plain, 3/8 x 7/8 x 14 Ga.

$

$

Not available

4

Simplicity 0916965-7

LOCKWASHER, 3/8

$

$

Not available

4

Simplicity 0918551-3

PIN, Cotter, 1/4 x 2

$

$

Not available

5

Simplicity 2096094-4

BUSHING, Pin

$

$

Not available
