2096175 - Simplicity Model 415 Loader Hydraulic Lines - Control Valve, Selector Valve & Block Group (3482I29) Parts Diagram

Model 415 Loader

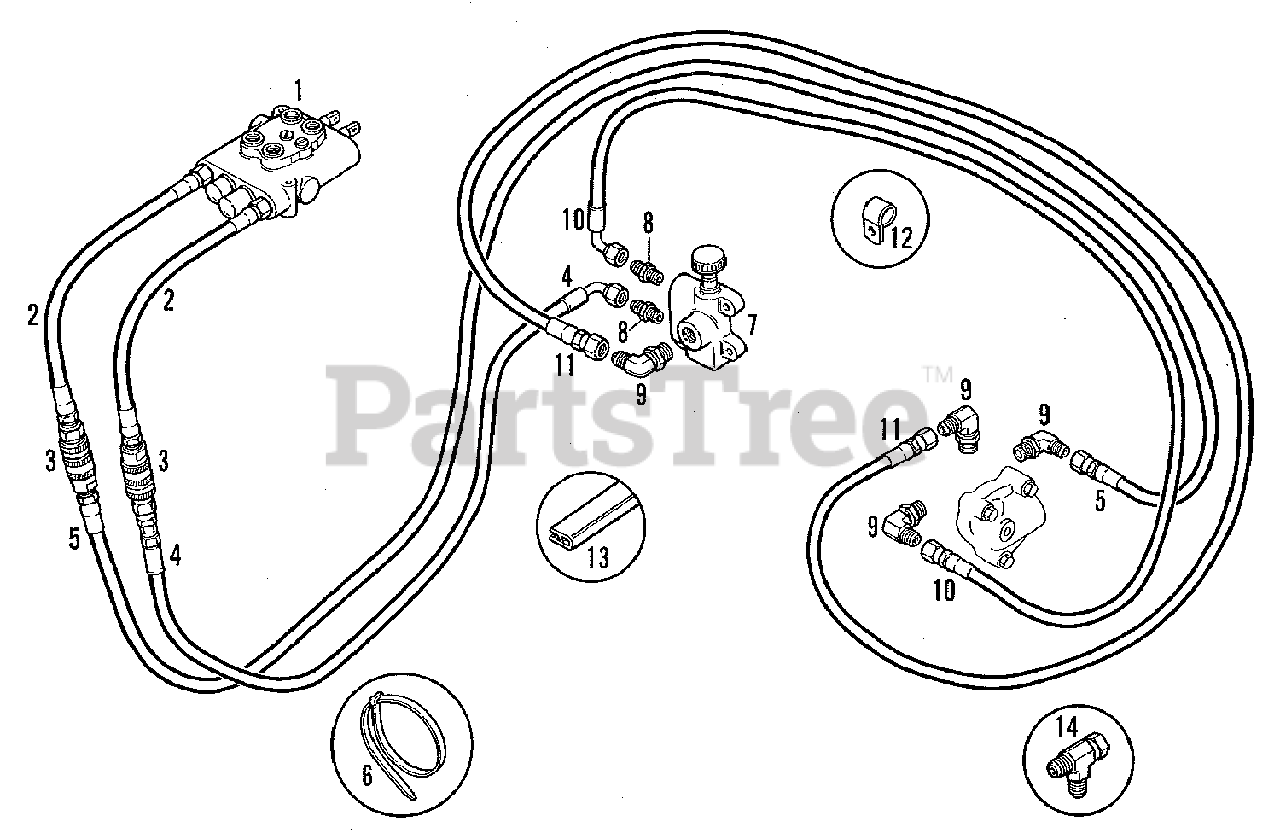

Hydraulic Lines - Control Valve, Selector Valve & Block Group (3482I29) Parts Diagram

  • Title

1

Simplicity 2096109-0

VALVE ASSEMBLY, Complete

$

$

Not available

1

Simplicity 0921923-9

CAPSCREW, 1/4NC x 2

$

$

Not available

1

Simplicity 0916964-0

LOCKWASHER, 1/4

$

$

Not available

1

Simplicity 0916622-4

NUT, 1/4NC

$

$

Not available

2

Simplicity 2096127-2

HOSE ASSEMBLY, Valve (Inlet & Outlet)

$

$

Not available

3

Simplicity 2096043-1

COUPLER, Hose

$

$

Not available

4

Simplicity 2096197-5

HOSE ASSEMBLY, Pressure

$

$

Not available

5

Simplicity 2096184-3

HOSE ASSEMBLY, Return

$

$

Not available

6

Simplicity 0925442-6

TIE, Plastic

$

$

Not available

7

Simplicity 2096222-1

VALVE ASSEMBLY, Selector

$

$

Not available

7

Simplicity 0921978-3

CAPSCREW, 5/16NC x 2

$

$

Not available

7

Simplicity 0917372-5

NUT, 5/16NC

$

$

Not available

8

Simplicity 0922522-8

CONNECTOR, Straight, 3/8 Tube O.D.

$

$

Not available

8

Simplicity 0921885-0

O-RING, 15/32" I.D.

$

$

Not available

9

Simplicity 0923905-4

ELBOW, 90 Degrees x 3/8

$

$

Not available

9

Simplicity 0921349-7

O-RING

$

$

Not available

10

Simplicity 2096195-9

HOSE ASSEMBLY (Top Port of the Selector Valve to the Diverter Block Inlet)

$

$

Not available

11

Simplicity 2096185-0

HOSE ASSEMBLY (From Diverter Block to Selector Valve

$

$

Not available

12

Simplicity 0927310-3

CLAMP, Hose

$

$

Not available

12

Simplicity 0921333-1

CAPSCREW, 5/16NC x 1

$

$

Not available

12

Simplicity 0917356-8

LOCKWASHER, 5/16

$

$

Not available

12

Simplicity 0917372-5

NUT, 5/16NC

$

$

Not available

13

Simplicity 0270254-6

STRIP, (Attached to Rear of R.H. Panel Cutout Under Seat to Protect Hoses)

$

$

Not available

14

Simplicity 0921297-8

TEE, Swivel, 3/8 tube O.D.

$

$

Not available
