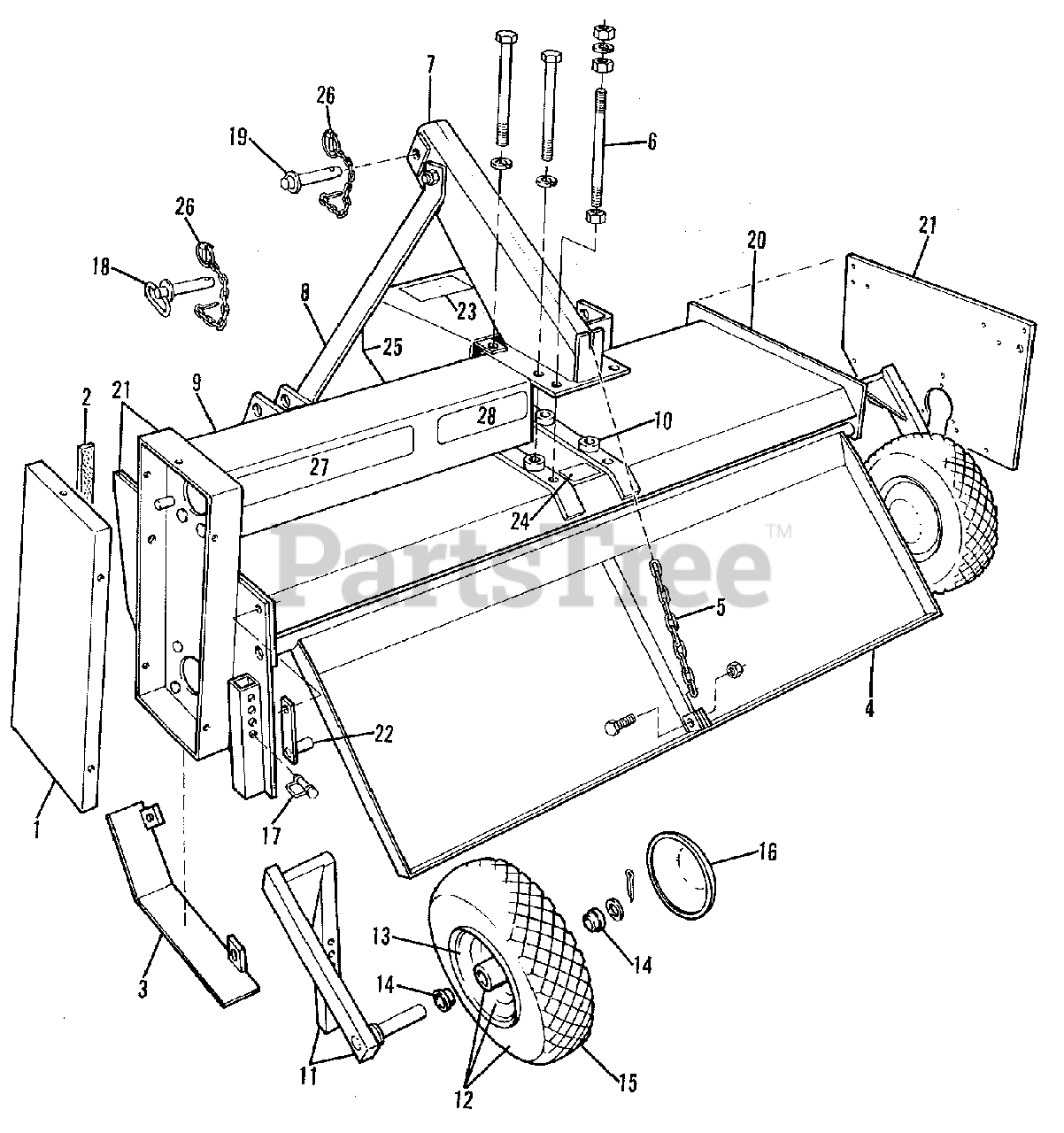

2096501 - Simplicity Model 66 Rotor Tiller Frame Group - Frame (3482I116) Parts Diagram

Model 66 Rotor Tiller

Frame Group - Frame (3482I116) Parts Diagram

  • Title

1

Simplicity 2096502-6

COVER, Chain Case

$

$

Not available

1

Simplicity 0925592-8

SCREW, Self-Tap, 1/4 x 3/4

$

$

Not available

1

Simplicity 0917377-4

WASHER, Plain, 5/16 x 3/4 x 16 Ga.

$

$

Not available

1

Simplicity 0919310-3

LOCKWASHER, 1/4

$

$

Not available

2

Simplicity 2096503-4

STRIP, Cover Sealing

$

$

Not available

3

Simplicity 2096504-2

SKID ASSEMBLY, L.H.

$

$

Not available

3

Simplicity 2096505-9

SKID ASSEMBLY, R.H

$

$

Not available

3

Simplicity 0921210-1

CAPSCREW, 3/8NC x 1

$

$

Not available

3

Simplicity 0928352-4

NUT, Lock, 3/8NC

$

$

Not available

4

Simplicity 2096506-7

SHIELD ASSEMBLY, Trailing

$

$

Not available

5

Simplicity 2096507-5

CHAIN, Shield

$

$

Not available

5

Simplicity 0920415-7

CAPSCREW, 3/8NC x 1-1/4

$

$

Not available

5

Simplicity 0928352-4

NUT, Lock, 3/8NC

$

$

Not available

6

Simplicity 2096508-3

BOLT, Adjusting

$

$

Not available

6

Simplicity 0916951-7

NUT, 1/2NC

$

$

Not available

7

Simplicity 2096509-1

MAST, Tower

$

$

Not available

7

Simplicity 0921176-4

CAPSCREW, 1/2NC x 1-1/4

$

$

Not available

7

Simplicity 0916966-5

LOCKWASHER, 1/2

$

$

Not available

8

Simplicity 2096510-9

SUPPORT, Tower Mast

$

$

Not available

8

Simplicity 0920990-9

CASCREW, 1/2NC x 3-1/2

$

$

Not available

8

Simplicity 0916966-5

LOCKWASHER, 1/2

$

$

Not available

8

Simplicity 0916951-7

NUT, 1/2NC

$

$

Not available

9

Simplicity 2096511-7

COVER, Jackshaft

$

$

Not available

9

Simplicity 0925715-5

SCREW, Slotted, 5/16NC x 1

$

$

Not available

9

Simplicity 0917642-1

WASHER, Plain, 3/8 x 7/8 x 16 Ga.

$

$

Not available

9

Simplicity 0919311-1

LOCKWASHER, 3/8

$

$

Not available

10

Simplicity 2096512-5

SPACER, Gearbox

$

$

Not available

10

Simplicity 0920990-9

CAPSCREW, 1/2NC x 3-1/2

$

$

Not available

10

Simplicity 0921024-6

CAPSCREW, 1/2NC x 2

$

$

Not available

10

Simplicity 0916966-5

LOCKWASHER, 1/2

$

$

Not available

10

Simplicity 0916951-7

NUT, 1/2NC

$

$

Not available

11

Simplicity 2096513-3

AXLE ASSEMBLY, L.H.

$

$

Not available

11

Simplicity 2096514-1

AXLE ASSEMBLY, R.H.

$

$

Not available

12

Simplicity 2096515-8

WHEEL ASSEMBLY, Complete

$

$

Not available

13

Simplicity 2096516-6

WHEEL ASSEMBLY

$

$

Not available

14

Simplicity 2096517-4

BUSHING, Hub

$

$

Not available

15

Simplicity 2096518-2

TIRE

$

$

Not available

16

Simplicity 2096519-0

COVER, Wheel

$

$

Not available

17

Simplicity 2096520-8

PIN, Wheel Attaching

$

$

Not available

18

Simplicity 2096521-6

PIN, Side Moutning (7/8" Diameter)

$

$

Not available

19

Simplicity 2096522-4

PIN, Top Link (3/4" Diameter)

$

$

Not available

20

Simplicity 2096523-2

FRAME ASSEMBLY, Main Center

$

$

Not available

20

Simplicity 0921210-1

CAPSCREW, 3/8NC x 1

$

$

Not available

20

Simplicity 0928352-4

NUT, Lock, 3/8NC

$

$

Not available

21

Simplicity 2096524-0

PLATE, L.H. End

$

$

Not available

21

Simplicity 2096525-7

PLATE, R.H. End

$

$

Not available

22

Simplicity 2096526-5

PIN ASSEMBLY, Hinge

$

$

Not available

22

Simplicity 0920415-7

CAPSCREW, 3/8NC x 1-1/4

$

$

Not available

22

Simplicity 0928352-4

NUT, Lock, 3/8NC

$

$

Not available

23

Simplicity 2096527-3

DECAL, Warning (Tractor Linkage)

$

$

Not available

24

Simplicity 2096528-1

DECAL, Warning (Gearbox Oil Fill)

$

$

Not available

25

Simplicity 2093529-9

GUARD, Clutch

$

$

Not available

26

Simplicity 2096596-8

PIN ASSEMBLY, Retaining

$

$

Not available

27

Simplicity 0579149-6

DECAL (Allis-Chalmers)

$

$

Not available

28

Simplicity 0593747-9

DECAL (66 Model Identification)

$

$

Not available
