2096593 - Simplicity Friction Clutch Type PTO Shafts & Joints - Friction Clutch Type Group (3482I118) Parts Diagram

Friction Clutch Type

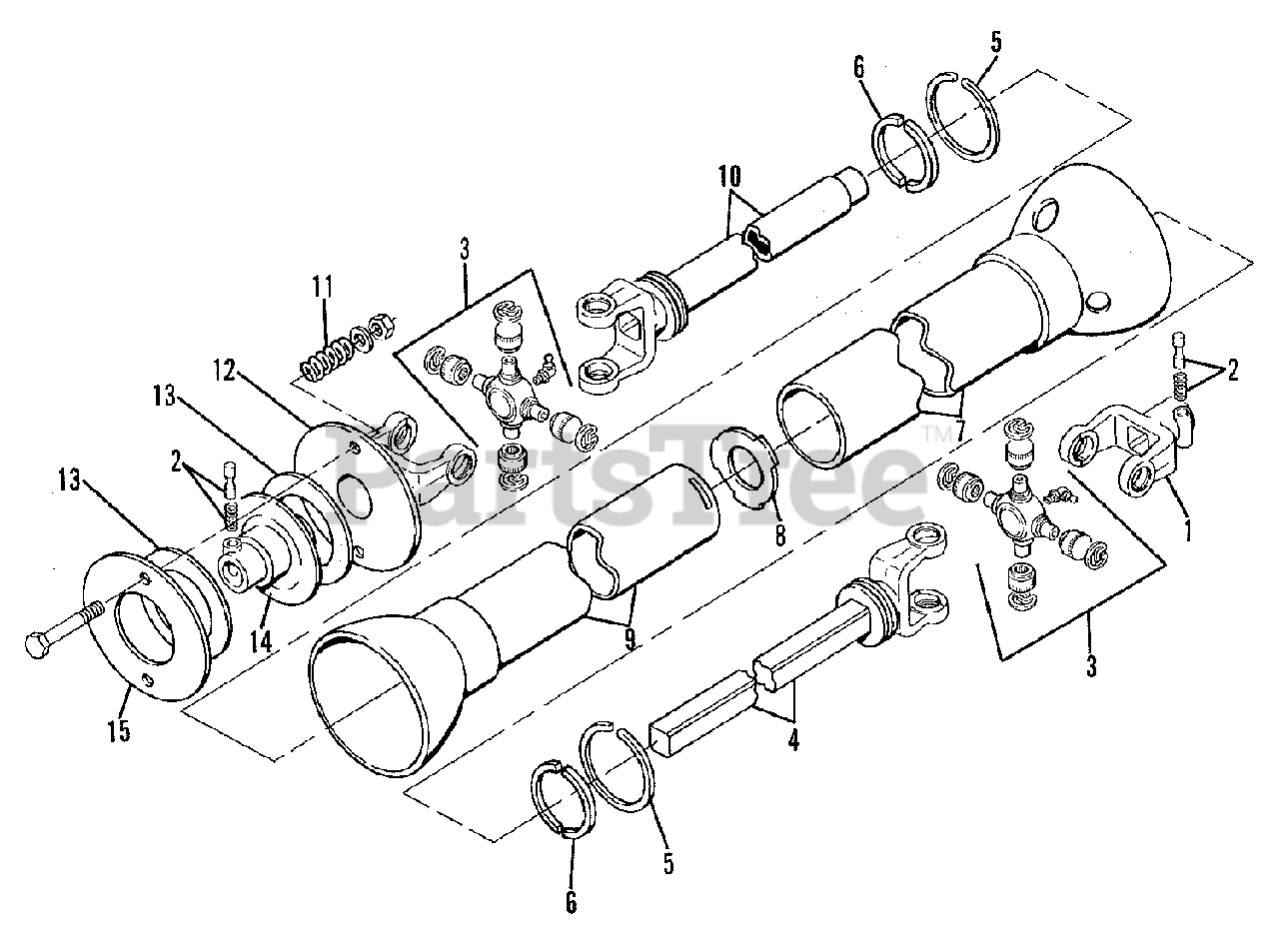

PTO Shafts & Joints - Friction Clutch Type Group (3482I118) Parts Diagram

  • Title

-

Simplicity 2096582-8

CLUTCH ASSEMBLY, Complete

$

$

Not available

1

Simplicity 2096572-9

YOKE ASSEMBLY, Tractor End

$

$

Not available

2

Simplicity 2096573-7

SPRING ASSEMBLY

$

$

Not available

3

Simplicity 2096574-5

U-JOINT KIT

$

$

Not available

4

Simplicity 2096575-2

SHAFT ASSEMBLY (Tractor End)

$

$

Not available

5

Simplicity 2096576-0

RETAINER, Bearing

$

$

Not available

6

Simplicity 2096577-8

BEARING, Shaft

$

$

Not available

7

Simplicity 2096578-6

TUBE, Outer Shield

$

$

Not available

8

Simplicity 2096579-4

CENTRALIZER, Tube

$

$

Not available

9

Simplicity 2096580-2

TUBE, Inner Shield

$

$

Not available

10

Simplicity 2096581-0

TUBE ASSEMBLY (Implement End)

$

$

Not available

11

Simplicity 2096583-6

SPRING, Clutch

$

$

Not available

11

Simplicity 0923938-5

CAPSCREW, 3/8NC x 3-1/2

$

$

Not available

11

Simplicity 0917378-2

WASHER, Plain, 7/16 x 1 x 14 Ga.

$

$

Not available

11

Simplicity 0926933-3

NUT, Lock, 3/8NC

$

$

Not available

12

Simplicity 2096584-4

YOKE ASSEMBLY, Clutch Plate

$

$

Not available

13

Simplicity 2096585-1

PLATE, Friction

$

$

Not available

14

Simplicity 2096586-9

HUB ASSEMBLY

$

$

Not available

15

Simplicity 2096587-7

PLATE, Large

$

$

Not available
