20975 - Toro 76cm TimeMaster Walk-Behind Mower (SN: 315000001 - 315999999) (2015) DECK AND FRAME ASSEMBLY Parts Diagram

76cm TimeMaster Walk-Behind Mower

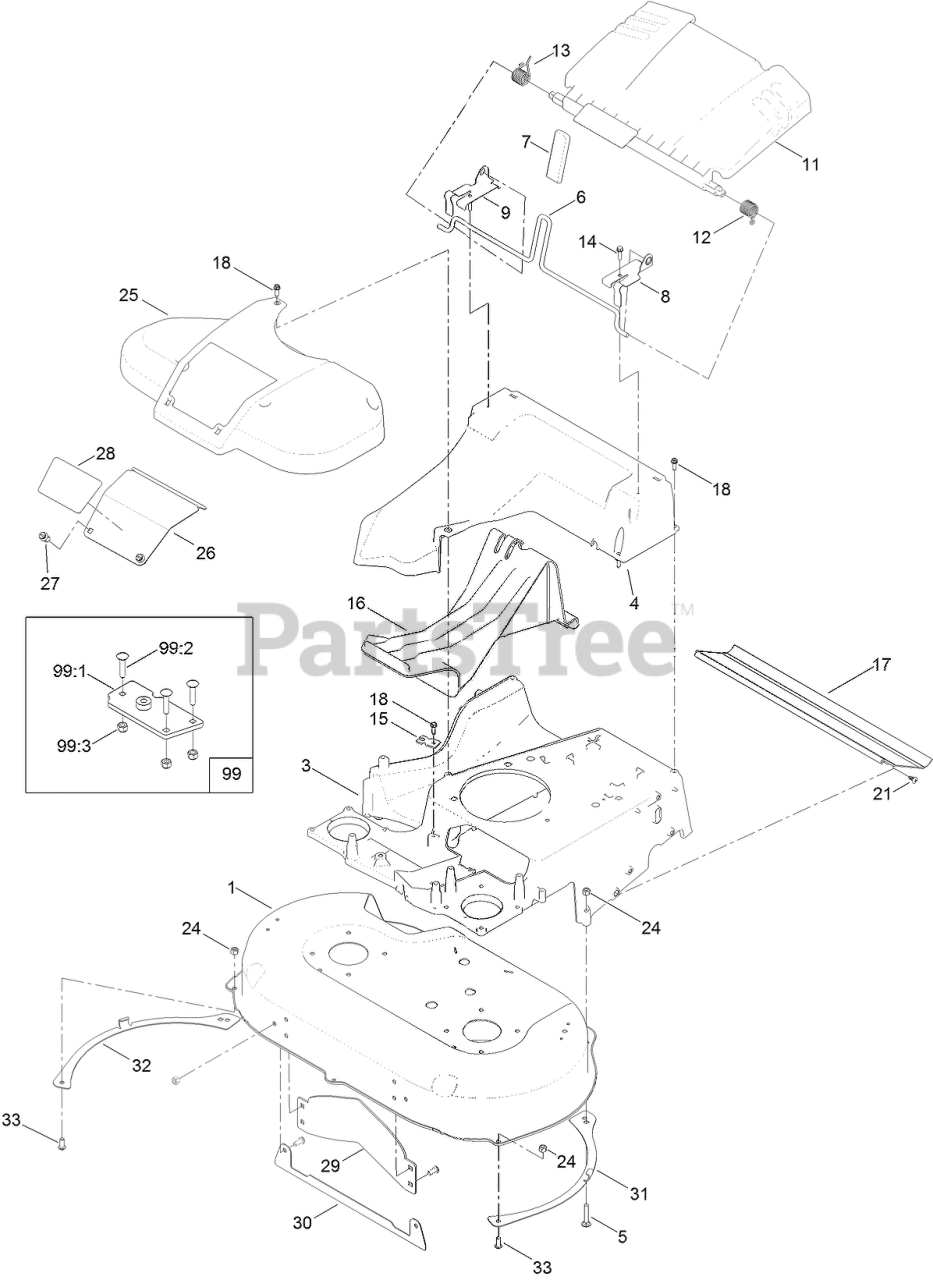

DECK AND FRAME ASSEMBLY Parts Diagram

  • Title

1

Toro 125-2534

HOUSING ASM

$590.99

$

Usually ships in 3-6 days

0

3

Toro 121-9198-01

FRAME

$221.99

$

In Stock, only 1 left!

0

4

Toro 120-3336

CHUTE
(Superseded to 133-8177)

$61.99

$

Usually ships in 3-6 days

0

5

Toro 3230-5

SCREW-CARR

$0.99

$

In Stock, Qty 12

0

6

Toro 120-3344

ROD-RELEASE, HANDLE

$35.99

$

Usually ships in 3-6 days

0

7

Toro 120-7018

GRIP-LEVER

$4.49

$

In Stock, only 2 left!

0

8

Toro 121-9114

BRACKET-DOOR, LH

$20.99

$

Usually ships in 3-6 days

0

9

Toro 121-9115

BRACKET-DOOR, RH

$20.99

$

Usually ships in 3-6 days

0

11

Toro 120-7048

REAR DEFLECTOR ASM

$41.99

$

In Stock, only 3 left!

0

12

Toro 115-2859

SPRING-TORSION

$5.49

$

In Stock, Qty 20+

0

13

Toro 114-7924

SPRING-TORSION

$3.99

$

In Stock, Qty 9

0

14

Toro 46-8091

SCREW-HWH

$4.49

$

In Stock, Qty 20+

0

15

Toro 107-7497

BRACKET-CABLE, TRACTION
(Superseded to 138-3224)

$2.99

$

In Stock, Qty 11

0

16

Toro 120-5225

PLUG-MULCH

$31.99

$

In Stock, Qty 20+

0

17

Toro 120-6241

SHIELD-TRAILING

$17.99

$

In Stock, Qty 20+

0

18

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

21

Toro 117-1092

SCREW-PTH
(Superseded to 139-1692)

$0.99

$

In Stock, Qty 20+

0

24

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

25

Toro 121-5810

COVER-BELT
(Superseded to 139-5406)

$38.99

$

In Stock, only 3 left!

0

26

Toro 121-5793-03

DOOR-ACCESS

$18.99

$

In Stock, Qty 19

0

27

Toro 121-5840

FASTENER

$6.99

$

In Stock, Qty 20+

0

28

Toro 125-2507

DECAL-ACCESS PANEL

$5.49

$

Usually ships in 3-6 days

0

29

Toro 130-2352-01

BAFFLE-CONTROL

$28.99

$

Usually ships in 3-6 days

0

30

Toro 125-5081-01

PLATE-DECK

$14.99

$

Usually ships in 3-6 days

0

31

Toro 120-7085-03

SKID-LH

$37.99

$

Usually ships in 3-6 days

0

32

Toro 120-9488-03

SKID-RH

$

$

Not available

33

Toro 3274-55

SCREW-HSBH

$5.49

$

In Stock, Qty 12

0

99

Toro 125-5072

FRAME PLATE KIT

$51.99

$

Usually ships in 3-6 days

0

99:1

Toro 125-2542

PLATE-FRAME

$46.99

$

Usually ships in 3-6 days

0

99:2

Toro 3229-3

SCREW-CARR

$5.49

$

Usually ships in 3-6 days

0

99:3

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0
