20996 - Toro 53cm Recycler Walk-Behind Mower (SN: 315000001 - 315999999) (2015) Engine and Blade Assembly Parts Diagram

53cm Recycler Walk-Behind Mower

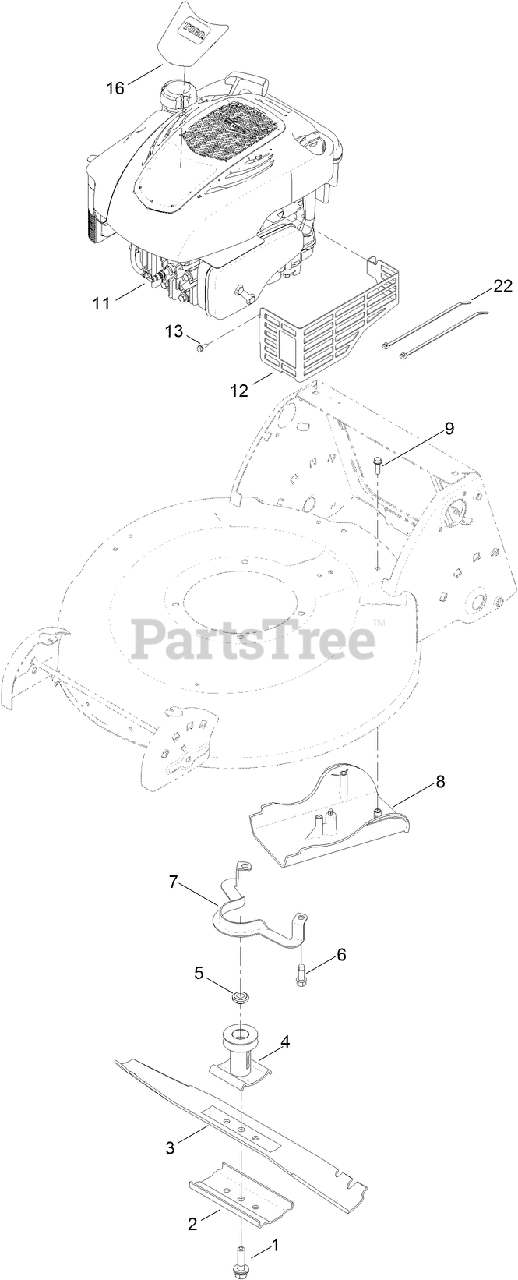

Engine and Blade Assembly Parts Diagram

  • Title

1

Toro 125-2466

BOLT-BLADE

$3.99

$

In Stock, Qty 20+

0

2

Toro 108-3766-03

SUPPORT-BLADE

$11.99

$

Usually ships in 3-6 days

0

3

Toro 108-0954-03

See Supercession: 133-8182-03
(Superseded to 133-8182-S)

$21.99

$

In Stock, only 2 left!

0

4

Toro 106-3987

DRIVER-BLADE

$35.99

$

In Stock, only 3 left!

0

5

Toro 106-3999

SPACER-DRIVER

$3.99

$

In Stock, Qty 20+

0

6

Toro 95-1726

SCREW-TAPTITE

$2.99

$

In Stock, Qty 20+

0

7

Toro 105-3030-03

GUIDE-BELT

$15.99

$

In Stock, only 1 left!

0

8

Toro 110-1832

COVER-BELT

$17.99

$

In Stock, only 2 left!

0

9

Toro 46-8091

SCREW-HWH

$4.49

$

In Stock, Qty 20+

0

11

ENGINE-BRIGGS 126M020119F1

Note: Not serviced separately

$

$

Not available

11

ENGINE-BRIGGS 126M020119F1

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

12

Toro 104-7577-03

SHIELD-MUFFLER

$28.99

$

In Stock, only 2 left!

0

13

Toro 32144-1

SCREW-TAPTITE

$3.99

$

In Stock, Qty 19

0

16

Toro 120-1935

DECAL-SHROUD

$

$

Not available

22

Toro 614249

TIE-CABLE

$1.49

$

In Stock, Qty 18

0
