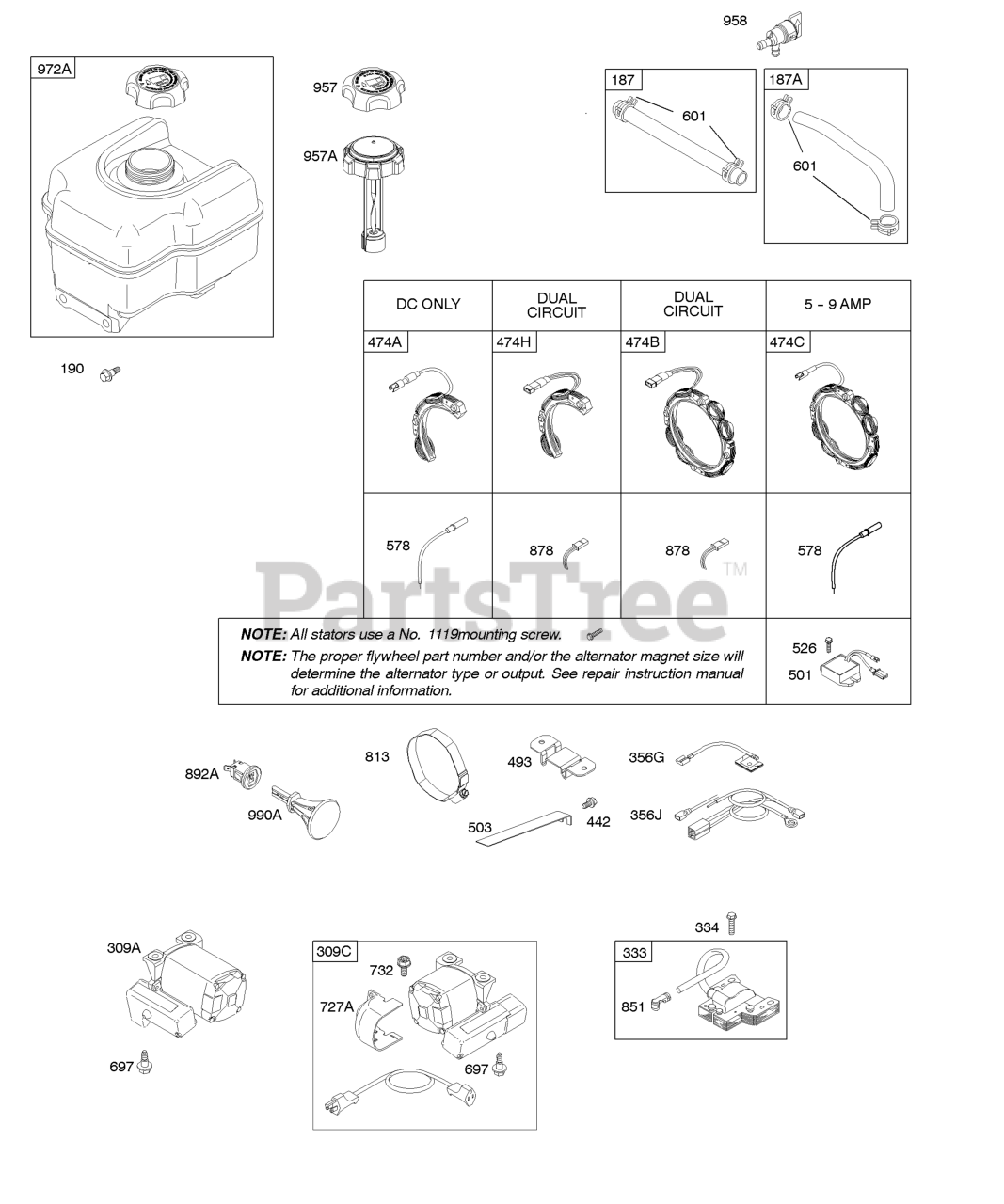

20A413-0123-E1 - Briggs & Stratton Horizontal Engine Alternator, Electric Starter, Fuel Supply, Ignition Parts Diagram

Horizontal Engine

Alternator, Electric Starter, Fuel Supply, Ignition Parts Diagram

  • Title

5

Briggs & Stratton 793305

Head-Cylinder
(Superseded to 799860)

$325.99

$

Usually ships in 2-12 days

0

187

Briggs & Stratton 791766

LINE, Fuel

Note: (15" Long)(Cut to Required Length)

$8.49

$

In Stock, Qty 20+

0

187A

Briggs & Stratton 791869

Line-Fuel

Note: Used After Code Date 05063000

$

$

Not available

187A

Briggs & Stratton 695429

Line-Fuel
(Superseded to 791869)

Note: Used Before Code Date 05070100

$

$

Not available

190

Briggs & Stratton 692127

Screw

Note: (Fuel Tank)

$6.99

$

In Stock, only 2 left!

0

309A

Briggs & Stratton 793524

Motor-Starter
(Superseded to 795909)

$276.99

$

Usually ships in 2-12 days

0

333

Briggs & Stratton 492341

Armature-Magneto
(Superseded to 591459)

$56.99

$

In Stock, Qty 20+

0

334

Briggs & Stratton 691061

SCREW

Note: (Magneto Armature)

$3.49

$

In Stock, Qty 20+

0

356G

Briggs & Stratton 696748

Wire-Stop

$10.99

$

Usually ships in 2-12 days

0

356J

Briggs & Stratton 793206

Wire-Stop

$

$

Not available

442

Briggs & Stratton 790282

Screw

Note: (Starter Strap)

$3.99

$

Usually ships in 2-12 days

0

493

Briggs & Stratton 691177

BRACKET, Mounting

$25.99

$

Usually ships in 2-12 days

0

503

Briggs & Stratton 691532

STRAP, Starter

$6.49

$

In Stock, only 1 left!

0

578

Briggs & Stratton 692306

WIRE ASSEMBLY

$18.99

$

Usually ships in 2-12 days

0

601

Briggs & Stratton 791850

CLAMP, Hose

$3.49

$

In Stock, Qty 12

0

697

Briggs & Stratton 698113

Screw

Note: (Drive Cap)

$

$

Not available

727A

Briggs & Stratton 697465

COVER, Starter Drive

$8.49

$

Usually ships in 2-12 days

0

732

Briggs & Stratton 691097

Screw

Note: (Starter Drive Cover)

$4.49

$

In Stock, only 2 left!

0

813

Briggs & Stratton 690635

CLAMP

$25.99

$

Usually ships in 2-12 days

0

851

Briggs & Stratton 692424

Terminal-Spark Plug

$6.49

$

In Stock, Qty 11

0

878

Briggs & Stratton 398661

Harness-Alternator

$37.99

$

In Stock, only 2 left!

0

892A

Briggs & Stratton 791944

Switch-Key

$16.99

$

In Stock, Qty 7

0

957

Briggs & Stratton 792647

Cap-Fuel Tank
(Superseded to 795027)

Note: (Plastic)

$10.99

$

In Stock, Qty 16

0

957A

Briggs & Stratton 698109

Cap-Fuel Tank

Note: (Plastic)

$

$

Not available

958

Briggs & Stratton 698180

Valve-Fuel Shut Off

Note: (Plastic)

$12.99

$

In Stock, Qty 20+

0

972A

Briggs & Stratton 694260

Tank-Fuel
(Superseded to 799863)

Note: (Plastic)

$98.99

$

In Stock, Qty 5

0

990A

Briggs & Stratton 695756

Key Set
(Superseded to 794696)

$8.49

$

In Stock, only 2 left!

0

1119

Briggs & Stratton 691183

SCREW

Note: (Alternator)

$3.99

$

Usually ships in 2-12 days

0
