20E337-0110-E1 - Briggs & Stratton Horizontal Engine Alternator, Electric Starter, Fuel Supply, Ignition Parts Diagram

Horizontal Engine

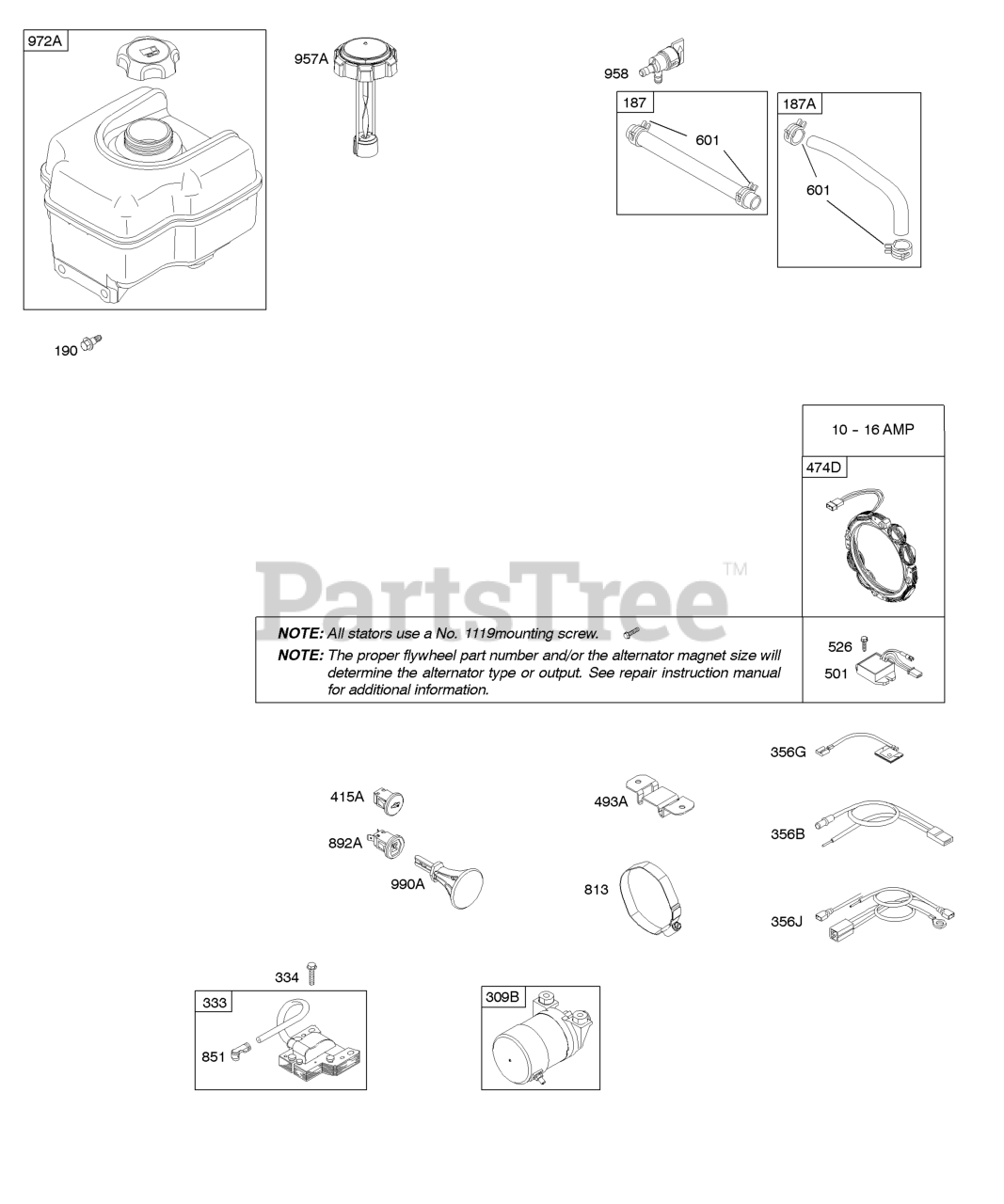

Alternator, Electric Starter, Fuel Supply, Ignition Parts Diagram

  • Title

187

Briggs & Stratton 791766

LINE, Fuel

Note: (15" Long)(Cut to Required Length)

$7.99

$

In Stock, Qty 20+

0

187A

Briggs & Stratton 791869

Line-Fuel

$

$

Not available

190

Briggs & Stratton 692127

Screw

Note: (Fuel Tank)

$6.49

$

In Stock, only 2 left!

0

309B

Briggs & Stratton 698162

Motor-Starter

$248.99

$

Usually ships in 2-12 days

0

333

Briggs & Stratton 492341

Armature-Magneto
(Superseded to 591459)

$53.99

$

In Stock, Qty 20+

0

334

Briggs & Stratton 691061

SCREW

Note: (Magneto Armature)

$3.49

$

In Stock, Qty 17

0

356B

Briggs & Stratton 699340

Wire-Stop

$10.99

$

Usually ships in 2-12 days

0

356G

Briggs & Stratton 696748

Wire-Stop

$9.49

$

Usually ships in 2-12 days

0

356J

Briggs & Stratton 793206

Wire-Stop

$8.49

$

Usually ships in 2-12 days

0

415A

Briggs & Stratton 699337

Plug

$6.99

$

Usually ships in 2-12 days

0

474D

Briggs & Stratton 695466

Alternator

Note: (10-16 Amp Regulated)

$119.99

$

Usually ships in 2-12 days

0

493A

Briggs & Stratton 691177

BRACKET, Mounting

$24.99

$

Usually ships in 2-12 days

0

501

Briggs & Stratton 698315

REGULATOR

$95.99

$

Usually ships in 2-12 days

0

526

Briggs & Stratton 690297

Screw

Note: (Regulator)

$3.49

$

In Stock, Qty 9

0

601

Briggs & Stratton 791850

CLAMP, Hose

$3.49

$

In Stock, Qty 20+

0

813

Briggs & Stratton 690635

CLAMP

$24.99

$

Usually ships in 2-12 days

0

851

Briggs & Stratton 692424

Terminal-Spark Plug

$5.99

$

In Stock, only 2 left!

0

892A

Briggs & Stratton 791944

Switch-Key

$14.99

$

In Stock, only 2 left!

0

957A

Briggs & Stratton 698109

Cap-Fuel Tank

Note: (Plastic)

$39.99

$

Usually ships in 2-12 days

0

958

Briggs & Stratton 698180

Valve-Fuel Shut Off

Note: (Plastic)

$11.99

$

In Stock, Qty 6

0

972A

Briggs & Stratton 694260

Tank-Fuel
(Superseded to 799863)

Note: (Plastic)

$89.99

$

In Stock, Qty 18

0

990A

Briggs & Stratton 695756

Key Set
(Superseded to 794696)

$7.49

$

In Stock, Qty 7

0

1119

Briggs & Stratton 691183

SCREW

Note: (Alternator)

$3.49

$

Usually ships in 2-12 days

0
