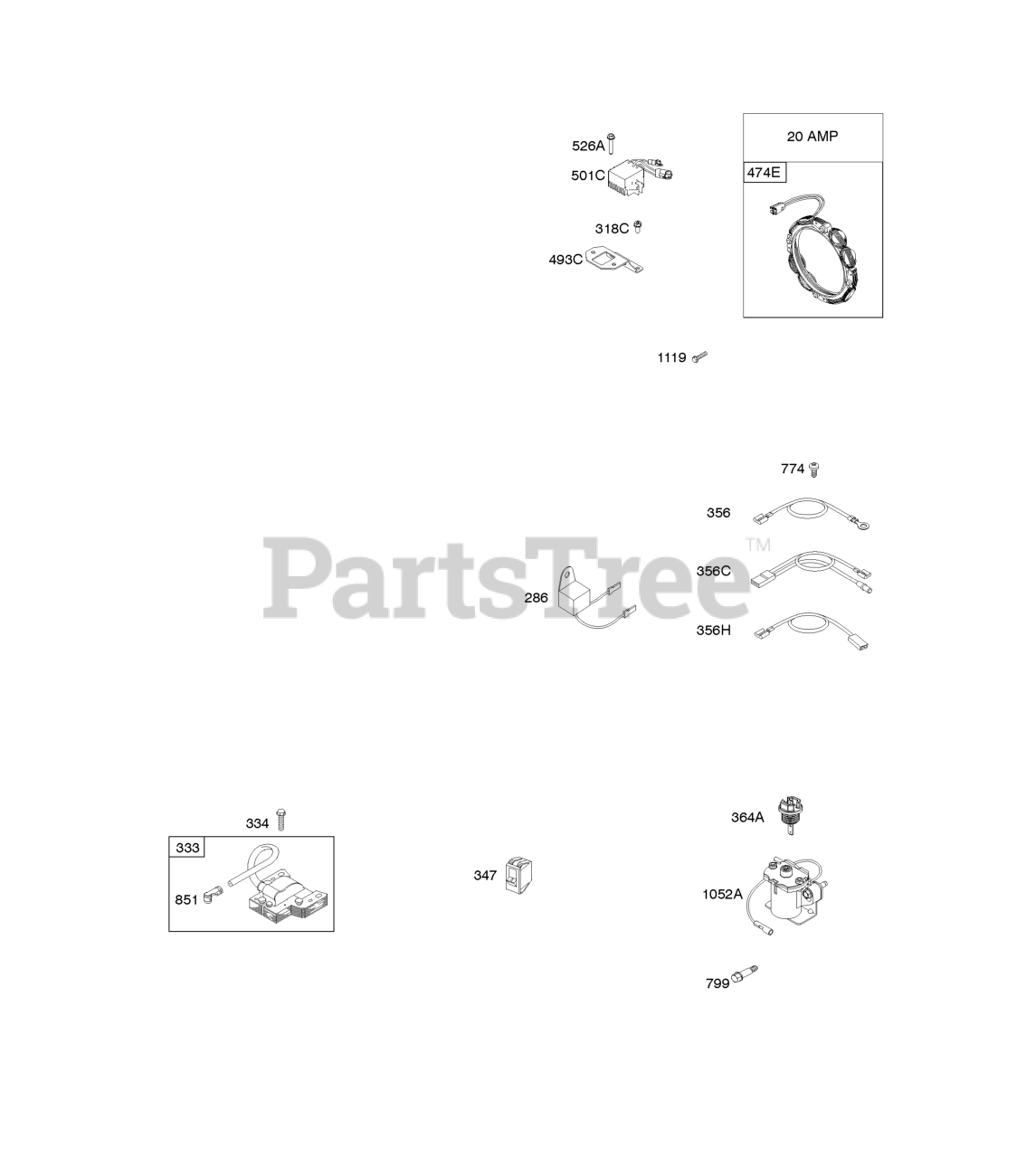

20L132-0115-F1 - Briggs & Stratton Horizontal Engine Ignition Parts Diagram

Horizontal Engine

Ignition Parts Diagram

  • Title

286

Briggs & Stratton 793696

Module-Oil Sensor

$62.99

$

In Stock, Qty 10

0

318C

Briggs & Stratton 795026

Screw

Note: (Mounting Bracket)

$4.49

$

In Stock, only 1 left!

0

333

Briggs & Stratton 492341

Armature-Magneto
(Superseded to 591459)

$56.99

$

In Stock, Qty 20+

0

334

Briggs & Stratton 699477

SCREW

Note: (Magneto Armature)

$4.49

$

In Stock, only 1 left!

0

347

Briggs & Stratton 697854

SWITCH, Rocker

$15.99

$

In Stock, Qty 6

0

356

Briggs & Stratton 695630

WIRE, Stop

$8.49

$

Usually ships in 2-12 days

0

356C

Briggs & Stratton 695295

Wire-Stop

$4.99

$

Usually ships in 2-12 days

0

356H

Briggs & Stratton 696482

Wire-Stop

$5.99

$

In Stock, only 1 left!

0

364A

Briggs & Stratton 699947

TERMINAL, Oil Plug

$9.49

$

Usually ships in 2-12 days

0

493C

Briggs & Stratton 699048

BRACKET, Mounting

$13.99

$

Usually ships in 2-12 days

0

526A

Briggs & Stratton 690326

SCREW

Note: (Regulator)

$6.99

$

Usually ships in 2-12 days

0

774

Briggs & Stratton 695447

Screw

Note: (Stop Wire)

$3.99

$

Usually ships in 2-12 days

0

799

Briggs & Stratton 699691

SCREW

Note: (Oil Sensor)

$4.49

$

Usually ships in 2-12 days

0

799

Briggs & Stratton 794937

Screw
(Superseded to 695446)

Note: (Oil Sensor) (Shoulder Screw)

$4.49

$

Usually ships in 2-12 days

0

851

Briggs & Stratton 692424

Terminal-Spark Plug

$6.49

$

In Stock, Qty 11

0

1052A

Briggs & Stratton 794805

Sensor-Oil

$70.99

$

In Stock, only 1 left!

0

1119

Briggs & Stratton 699772

SCREW

Note: (Alternator)

$3.99

$

Usually ships in 2-12 days

0
