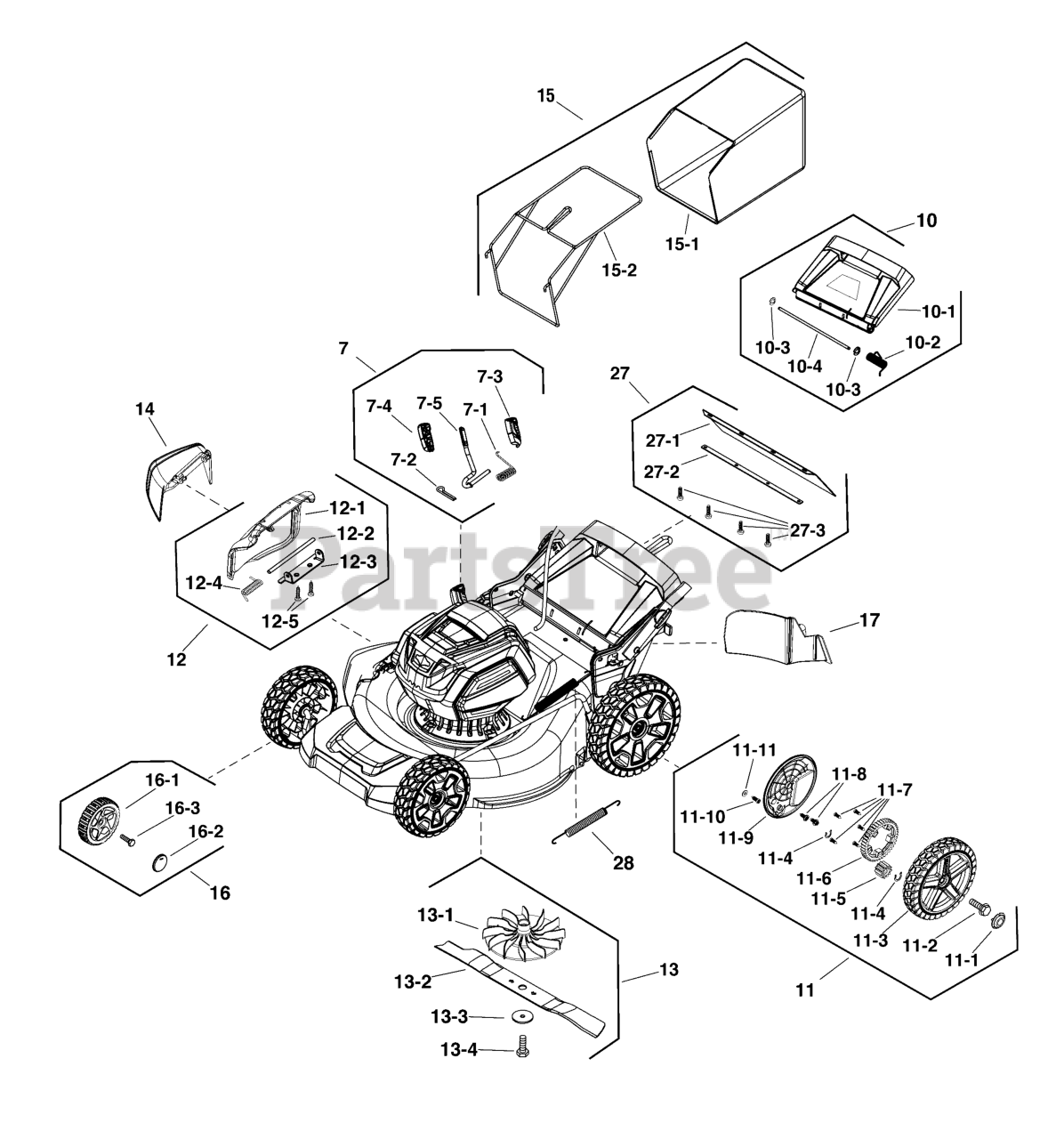

20SSWM48K (1688068-00) - Snapper 48V 20" Step Sense Walk-Behind Mower Wheels & Catcher Group Parts Diagram

48V 20" Step Sense Walk-Behind Mower

Wheels & Catcher Group Parts Diagram

  • Title

7

Snapper 84001956

KIT, Height Adjust

Note: (Includes Ref. Nos. 7-1 through 7-5)

$27.99

$

Usually ships in 2-12 days

0

7-1

SPRING

$

$

Not available

7-2

PIN, Cotter

$

$

Not available

7-3

HOUSING, Left

$

$

Not available

7-4

HOUSING, Right

$

$

Not available

7-5

ROD, Adjusting

$

$

Not available

10

Snapper 84002061

KIT. Rear Cover

Note: (Includes Ref. Nos. 10-1 through 10-4)

$85.99

$

Usually ships in 2-12 days

0

10-1

COVER, Rear

$

$

Not available

10-2

SPRING

$

$

Not available

10-3

WASHER, Split

$

$

Not available

10-4

SHAFT

$

$

Not available

11

Snapper 84004271

KIT, Rear Wheel, 10"

Note: (Includes Ref. Nos. 11-1 through 11-11)

$61.99

$

Usually ships in 2-12 days

0

11-1

COVER, Wheel

$

$

Not available

11-2

BOLT

$

$

Not available

11-3

WHEEL, 10"

$

$

Not available

11-4

RING, Snap

$

$

Not available

11-5

GEAR, Drive

$

$

Not available

11-6

Snapper 84003415

GEAR, Drive

$15.99

$

In Stock, only 1 left!

0

11-7

SCREW, HexHead Self Tap, ST4.2 x 20-C

$

$

Not available

11-8

SCREW, HexHead Self Tap

$

$

Not available

11-9

COVER, Dust

$

$

Not available

11-10

SCREW, Socket Head, ST4.2 x 20

$

$

Not available

11-11

GASKET, 5.3

$

$

Not available

12

Snapper 84001938

KIT, Cover, Side Discharge

Note: (Includes Ref. Nos. 12-1 through 12-5)

$29.99

$

Usually ships in 2-12 days

0

12-1

COVER

$

$

Not available

12-2

SHAFT

$

$

Not available

12-3

BRACKET

$

$

Not available

12-4

SPRING, Torsion

$

$

Not available

12-5

SCREW

$

$

Not available

13

Snapper 84002068

KIT, Mower Blade

Note: (Includes Ref. Nos. 13-1 through 13-4)

$74.99

$

Usually ships in 2-12 days

0

13-1

FAN

$

$

Not available

13-2

BLADE, Mower

$

$

Not available

13-3

WASHER

$

$

Not available

13-4

BOLT, M10 X 35

$

$

Not available

14

Snapper 770194

KIT, Deflector, Side Discharge

$42.99

$

Usually ships in 2-12 days

0

15

Snapper 84001942

GRASS CATCHER ASSEMBLY

Note: (Includes Ref. Nos. 15-1 & 15-2)

$278.99

$

Usually ships in 2-12 days

0

15-1

BAG, Grass Catcher

$

$

Not available

15-2

FRAME

$

$

Not available

16

Snapper 84001943

KIT, Front Wheel, 8"

Note: (Includes Ref. Nos. 16-1 through 16-3)

$49.99

$

In Stock, only 1 left!

0

16-1

WHEEL, 8"

$

$

Not available

16-2

COVER, Wheel

$

$

Not available

16-3

BOLT

$

$

Not available

17

Snapper 84002065

PLUG, Mulching

$56.99

$

Usually ships in 2-12 days

0

27

Snapper 84002066

KIT, Rear Deflector

Note: (Includes Ref. Nos. 27-1 through 27-3)

$62.99

$

Usually ships in 2-12 days

0

27-1

FLAP, Rear

$

$

Not available

27-2

BRACE

$

$

Not available

27-3

SCREW ST4.2-16

$

$

Not available

28

Snapper 84002267

SPRING, Tension, Lift
(Superseded to 84001935)

$7.99

$

Usually ships in 2-12 days

0
