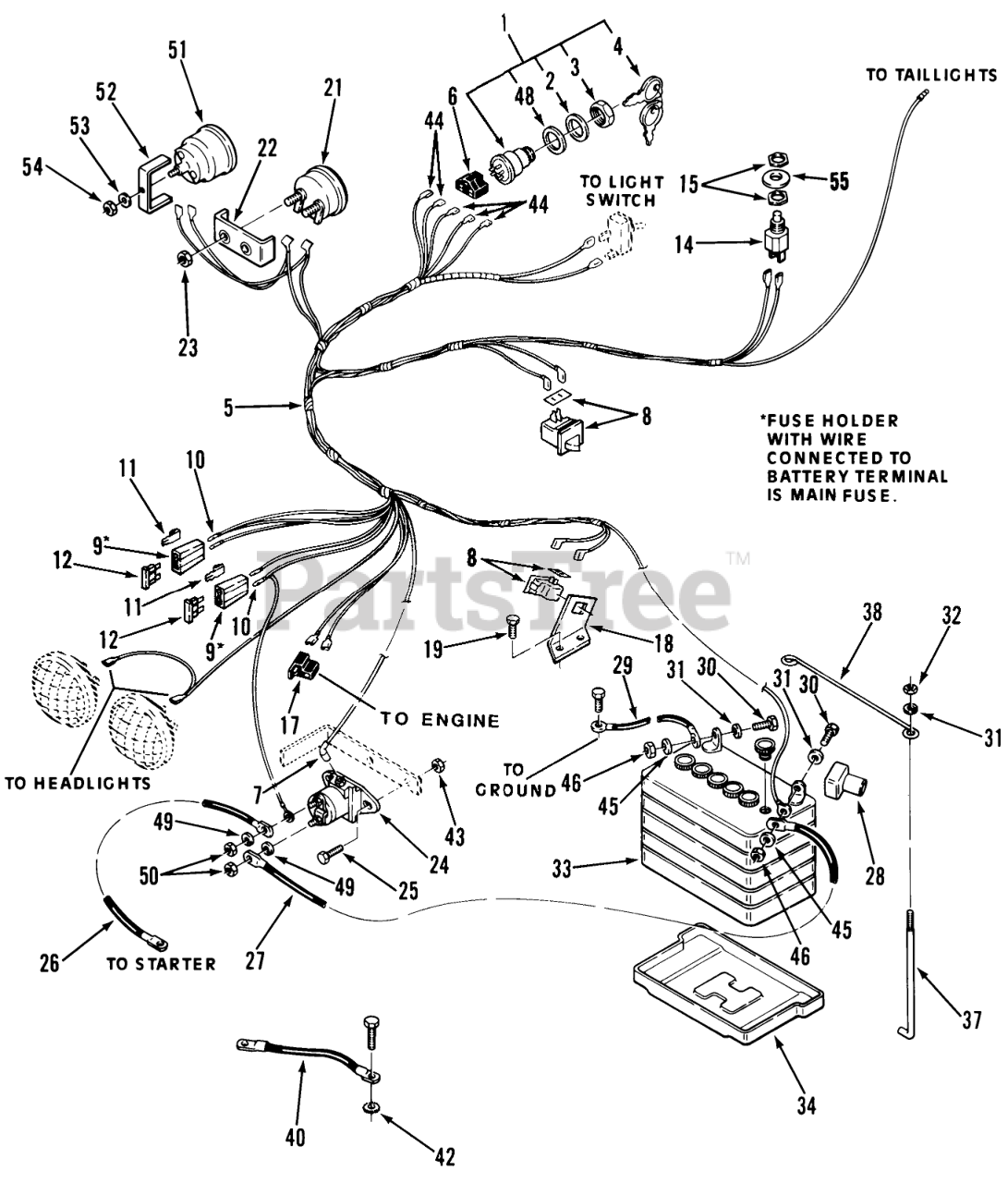

21-10K801 (310-8) - Toro Garden Tractor (1985) Electrical System Parts Diagram

Garden Tractor

Electrical System Parts Diagram

  • Title

1

Toro 103990

SWITCH-IGNITION

$29.99

$

In Stock, only 2 left!

0

2

Toro 920160

See Supercession: 9201604
(Superseded to 9201604)

$0.99

$

In Stock, only 2 left!

0

3

Toro 101884

NUT

$7.99

$

In Stock, only 1 left!

0

4

Toro 7262

See Supercession: 62-7770
(Superseded to 62-7770)

$4.99

$

In Stock, Qty 15

0

5

Toro 110799

DISCONTINUED

$

$

Not available

5

Toro 111035

DISCONTINUED

$

$

Not available

5

Toro 110800

DISCONTINUED

$

$

Not available

6

Toro 105302

See Supercession: 32160-014
(Superseded to 32160-014)

$6.49

$

In Stock, Qty 20+

0

7

Toro 518246

DISCONTINUED

$

$

Not available

8

Toro 110970

DISCONTINUED

$

$

Not available

9

Toro 109117

DISCONTINUED

$

$

Not available

10

Toro 108995

DISCONTINUED

$

$

Not available

11

Toro 109445

CLIP

$8.99

$

Usually ships in 3-6 days

0

12

Toro 110928

FUSE-BLADE, 5 AMP

$8.99

$

Usually ships in 3-6 days

0

12

Toro 109355

FUSE-BLADE, 15 AMP

$3.99

$

In Stock, Qty 8

0

12

Toro 109102

FUSE-BLADE, 25 AMP

$6.49

$

In Stock, Qty 10

0

14

Toro 106268

SWITCH

$36.99

$

Usually ships in 3-6 days

0

15

Toro 8786

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

17

Toro 109357

CONNECTOR BODY

$

$

Not available

18

Toro 109508

BRACKET-SWITCH (NS)

$

$

Not available

19

Toro 926671

Bolt
(Superseded to 9266714)

$1.49

$

In Stock, Qty 20+

0

21

Toro 110741

DISCONTINUED
(Superseded to 117176)

$

$

Not available

22

Toro 109650

CLAMP MOUNTING

$18.99

$

Usually ships in 3-6 days

0

23

Toro 5924

HEX NUT 10-32 E.S. + + USE 3296-21 + +

$

$

Not available

24

Toro 109605

See Supercession: 110979
(Superseded to 110979)

$109.99

$

Usually ships in 3-6 days

0

25

Toro 960152

See Supercession: 3234-33
(Superseded to 3234-33)

$0.99

$

In Stock, Qty 5

0

26

Toro 111069

DISCONTINUED

$

$

Not available

26

Toro 110790

ASSY STARTER WIRE

$29.99

$

Usually ships in 3-6 days

0

27

Toro 111074

CABLE-BLACK

$28.99

$

Usually ships in 3-6 days

0

28

Toro 109553

See Supercession: 28-8080
(Superseded to 28-8080)

$25.99

$

Usually ships in 3-6 days

0

29

Toro 111069

DISCONTINUED

$

$

Not available

30

Toro 908003

See Supercession: 321-4
(Superseded to 321-4)

$1.49

$

In Stock, Qty 20+

0

31

Toro 920007

See Supercession: 3256-22
(Superseded to 3256-22)

$0.99

$

In Stock, Qty 20+

0

32

Toro 915111

See Supercession: 3217-5
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 13

0

33

Toro 110791

OBTAIN LOCALLY

$

$

Not available

33

Toro 105842

See Supercession: 104-8162
(Superseded to 104-8162)

$

$

Not available

34

Toro 110298

TRAY BATTERY

$33.99

$

In Stock, only 1 left!

0

37

Toro 109547

HOOK

$10.99

$

In Stock, only 2 left!

0

38

Toro 105504

ROD-HOLD DOWN

$24.99

$

In Stock, only 4 left!

0

40

Toro 100335

WIRE-GROUND

$26.99

$

Usually ships in 3-6 days

0

42

Toro 920122

DISCONTINUED

$

$

Not available

43

Toro 915111

See Supercession: 3217-5
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 13

0

44

Toro 102651

DUP PART SEE $BOOK

$

$

Not available

45

Toro 920081

See Supercession: 3253-3
(Superseded to 325-33)

$14.99

$

In Stock, only 4 left!

0

46

Toro 915111

See Supercession: 3217-5
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 13

0

48

Toro 920262

See Supercession: 9202624
(Superseded to 9202624)

$9.49

$

Usually ships in 3-6 days

0

49

Toro 920081

See Supercession: 3253-3
(Superseded to 325-33)

$14.99

$

In Stock, only 4 left!

0

50

Toro 915234

See Supercession: 3218-1
(Superseded to 3218-1)

$1.49

$

In Stock, only 4 left!

0

51

Toro 110853

See Supercession: 113469
(Superseded to 113469)

$473.99

$

Usually ships in 3-6 days

0

52

Toro 108768

DISCONTINUED

$

$

Not available

53

Toro 920120

See Supercession: 3255-17
(Superseded to 3255-17)

$0.99

$

Usually ships in 3-6 days

0

54

Toro 915538

See Supercession: 3217-26
(Superseded to 3217-26)

$1.99

$

In Stock, only 2 left!

0

55

Toro 920242

WASHER-FLAT

$6.99

$

Usually ships in 3-6 days

0
