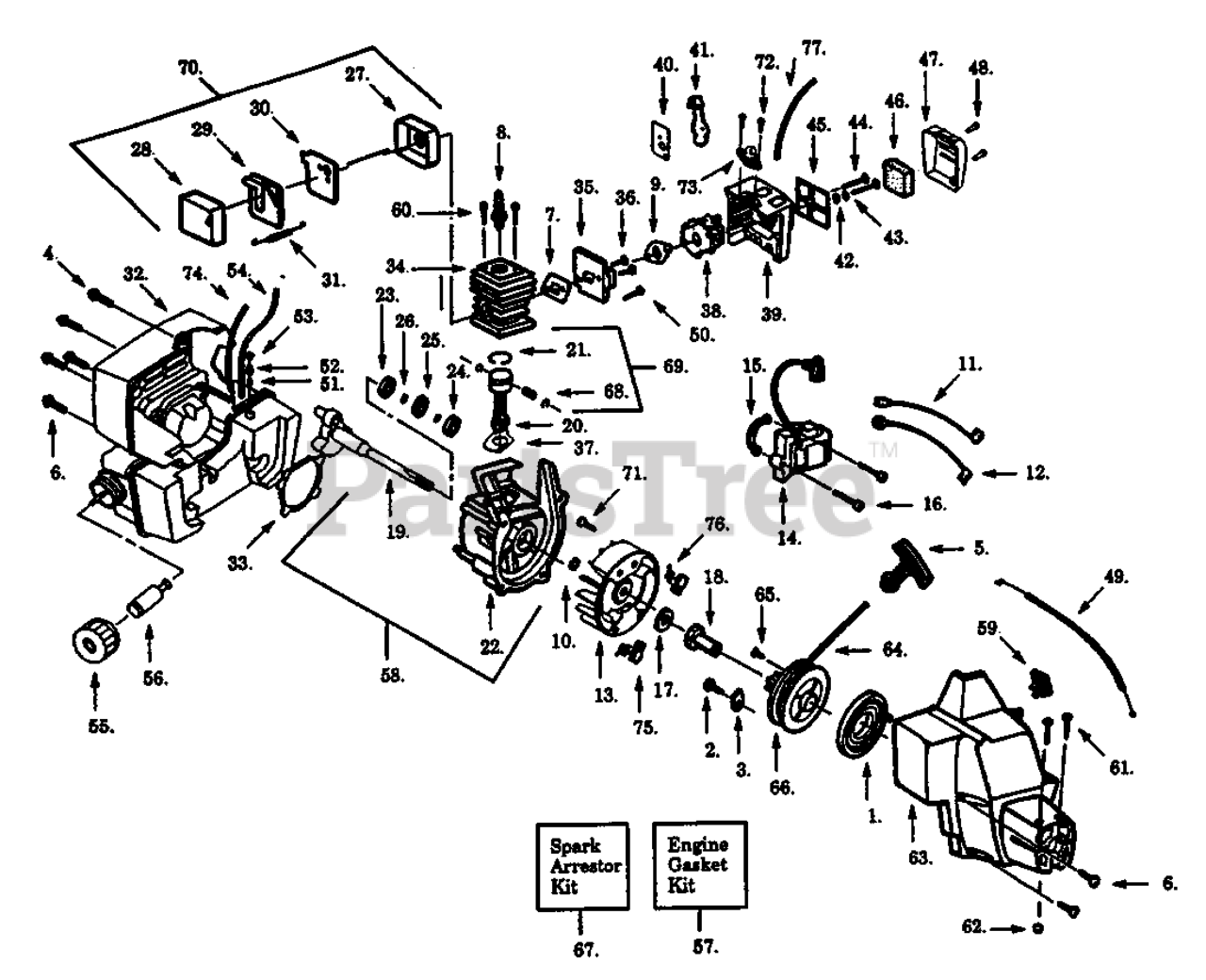

21 LCN - Husqvarna String Trimmer (1994-12) ENGINE Parts Diagram

String Trimmer

ENGINE Parts Diagram

  • Title

71

Husqvarna 530015882

SCREW

$

$

Not available

72

Husqvarna 530016090

SCREW - PRIMER ASSEMBLY
(Superseded to 530015780)

$6.49

$

In Stock, only 3 left!

0

53

Husqvarna 530029696

Retainer

$

$

Not available

61

Husqvarna 530016072

SCREW - PINCH CLAMP

$3.99

$

Usually ships in 3-10 days

0

34

Husqvarna 530069619

CYLINDER
(Superseded to 530012353)

$

$

Not available

19

Husqvarna 530014532

Cranshaft Ass'y.

$

$

Not available

58

Husqvarna 530014729

C'case & C'shaft Ass'y.

$

$

Not available

17

Husqvarna 530015828

WASHER FLAT

$4.99

$

In Stock, only 1 left!

0

30

Husqvarna 530036579

MUFFLER BAFFLE - FIRST

$2.99

$

Usually ships in 3-10 days

0

55

Husqvarna 530014347

CAP ASSY W/ RETAINER

$8.99

$

In Stock, Qty 5

0

51

Husqvarna 530026119

VALVE-CHECK (DUCKBILL)

$4.49

$

In Stock, Qty 12

0

43

Husqvarna 530015852

CHOKE SPACER

$2.49

$

In Stock, only 1 left!

0

68

Husqvarna 530015162

WRIST PIN RET.

$6.49

$

In Stock, only 2 left!

0

41

Husqvarna 530038102

CHOKE SHUTTER

$3.99

$

Usually ships in 3-10 days

0

10

Husqvarna 530015945

CLIP

$3.99

$

Usually ships in 3-10 days

0

33

Husqvarna 530019181

GASKET, CRANKCASE

$6.49

$

In Stock, only 4 left!

0

77

Husqvarna 530069216

KIT.LINE TANK/PURGE

$6.49

$

In Stock, Qty 20+

0

50

Husqvarna 530015814

SCREW

$6.49

$

In Stock, Qty 20+

0

46

Husqvarna 530037331

AIR FILTER FOAM

$

$

Not available

70

Husqvarna 530069660

MUFFLER KIT

$15.99

$

Usually ships in 3-10 days

0

49

Husqvarna 530036744

THROTTLE CABLE
(Superseded to 530071548)

$

$

Not available

4

Husqvarna 530015934

SCREW

$4.99

$

In Stock, only 1 left!

0

52

Husqvarna 530029717

FILTER

$

$

Not available

64

Husqvarna 530069232

KIT-ROPE

$7.49

$

In Stock, Qty 20+

0

16

Husqvarna 530015954

SCREW

$4.99

$

Usually ships in 3-10 days

0

29

Husqvarna 530038602

MUFFLER BAFFLE - EXIT

$1.99

$

Usually ships in 3-10 days

0

18

Husqvarna 530027953

COUPLING-DRIVE

$

$

Not available

37

Husqvarna 530019223

GASKET - CYLINDER

$4.99

$

In Stock, Qty 6

0

2

Husqvarna 530015775

SCREW 8-16 X 9/16 (PLAS

$6.49

$

In Stock, only 2 left!

0

76

Husqvarna 530037730

STARTER DOG SPRING
(Superseded to 530047570)

$3.99

$

Usually ships in 3-10 days

0

36

Husqvarna 530016014

SCREW - CARB. ADAPTOR

$6.49

$

In Stock, only 3 left!

0

31

Husqvarna 530029930

MUFFLER SPRING
(Superseded to 530016197)

$4.99

$

In Stock, Qty 6

0

23

Husqvarna 530032125

BEARING

$18.99

$

Usually ships in 3-10 days

0

66

Husqvarna 530066400

Starter Pulley

$

$

Currently unavailable

62

Husqvarna 530015768

LOCKNUT-HEX 10-24

$6.49

$

In Stock, only 2 left!

0

26

Husqvarna 530015941

RETAINING RING

$4.99

$

Usually ships in 3-10 days

0

24

Husqvarna 530032124

BEARING

$7.49

$

Usually ships in 3-10 days

0

73

Husqvarna 530037972

PRIMER BULB ASSEMBLY
(Superseded to 530038874)

$8.99

$

Usually ships in 3-10 days

0

12

Husqvarna 530014662

GROUND WIRE
(Superseded to 581425901)

$3.99

$

Usually ships in 3-10 days

0

74

Husqvarna 530069247

HOSE. FUEL

$6.49

$

In Stock, Qty 20+

0

48

Husqvarna 530015966

SCREW - THROTTLE HOUSING
(Superseded to 530015957)

$4.99

$

In Stock, Qty 7

0

56

Husqvarna 530014362

FUEL PICK UP ASSY
(Superseded to 530095646)

$4.99

$

In Stock, Qty 20+

0

67

Husqvarna 530069380

KIT-SPARK ARRESTOR (OLD STYLE)

$6.49

$

Usually ships in 3-10 days

0

21

Husqvarna 530036404

PISTON RING

$

$

Not available

44

Husqvarna 530015887

SCREW

$4.99

$

In Stock, only 2 left!

0

9

Husqvarna 530019194

GASKET - CARBURETOR

$6.49

$

In Stock, Qty 5

0

22

Husqvarna 530014861

CRANKCASE ASSY

$

$

Not available

57

Husqvarna 530069625

ENGINE GASKET KIT
(Superseded to 530069616)

$9.99

$

In Stock, only 1 left!

0

54

Husqvarna 530069571

FUEL LINE - PRIM/TNK

$6.49

$

In Stock, Qty 11

0

65

Husqvarna 530016080

SCREW

$6.49

$

In Stock, Qty 11

0

1

Husqvarna 530029395

SPRING-STARTER
(Superseded to 545008010)

$7.49

$

In Stock, Qty 20+

0

27

Husqvarna 530036578

MUFFLER BODY

$4.99

$

Usually ships in 3-10 days

0

20

Husqvarna 530069615

CONNECTING ROD ASSEMBLY

$24.99

$

Usually ships in 3-10 days

0

8

Husqvarna 530030075

Spark Plug (Model GF26 (RCJ-SY))

$

$

Not available

35

Husqvarna 530069564

CARB. ADAPTER
(Superseded to 530069769)

$

$

Not available

60

Husqvarna 530015953

SCREW

$6.49

$

In Stock, Qty 8

0

15

Husqvarna 530036145

SPACER - IGNITION MODULE

$3.99

$

In Stock, only 3 left!

0

40

Husqvarna 530037326

CHOKE PLATE

$

$

Not available

75

Husqvarna 530029939

Starter Dog

$

$

Not available

3

Husqvarna 530027523

RETAINER

$7.49

$

In Stock, only 2 left!

0

39

Husqvarna 530038944

AIR BOX

$3.49

$

Usually ships in 3-10 days

0

42

Husqvarna 530015254

WASHER

$3.99

$

In Stock, only 2 left!

0

63

Husqvarna 530069675

FAN HOUSING/SHROUD ASSEMBLY

$12.99

$

Usually ships in 3-10 days

0

32

Husqvarna 530047325

Shroud & Tank Amy.

$

$

Not available

13

Husqvarna 530039148

FLYWHEEL
(Superseded to 545221701)

$13.99

$

In Stock, only 1 left!

0

11

Husqvarna 530014663

LEAD WIRE

$9.99

$

Usually ships in 3-10 days

0

45

Husqvarna 530037413

FILTER PLATE

$

$

Not available

7

Husqvarna 530019185

GASKET
(Superseded to 530019233)

$3.99

$

In Stock, only 2 left!

0

59

Husqvarna 530038114

SWITCH
(Superseded to 530071356)

$8.99

$

Usually ships in 3-10 days

0

5

Husqvarna 530027569

HANDLE-STARTER

$6.49

$

In Stock, only 2 left!

0

6

Husqvarna 530015810

SCREW - SHROUD
(Superseded to 530016386)

$10.99

$

In Stock, Qty 9

0

47

Husqvarna 530037292

AIR FILTER COVER

$4.99

$

Usually ships in 3-10 days

0

38

Husqvarna 530069647

CARBURETOR
(Superseded to 530071639)

$63.46

$

In Stock, only 1 left!

0

28

Husqvarna 530036577

MUFFLER COVER

$2.99

$

Usually ships in 3-10 days

0

69

Husqvarna 530069621

PISTON KIT

$36.99

$

Usually ships in 3-10 days

0

25

Husqvarna 530019179

SEALING RING

$7.49

$

Usually ships in 3-10 days

0

14

Husqvarna 530039163

IGNITION MODULE

$53.99

$

In Stock, only 1 left!
