21 LCN - Husqvarna String Trimmer (1995-12) Engine Assembly Parts Diagram

String Trimmer

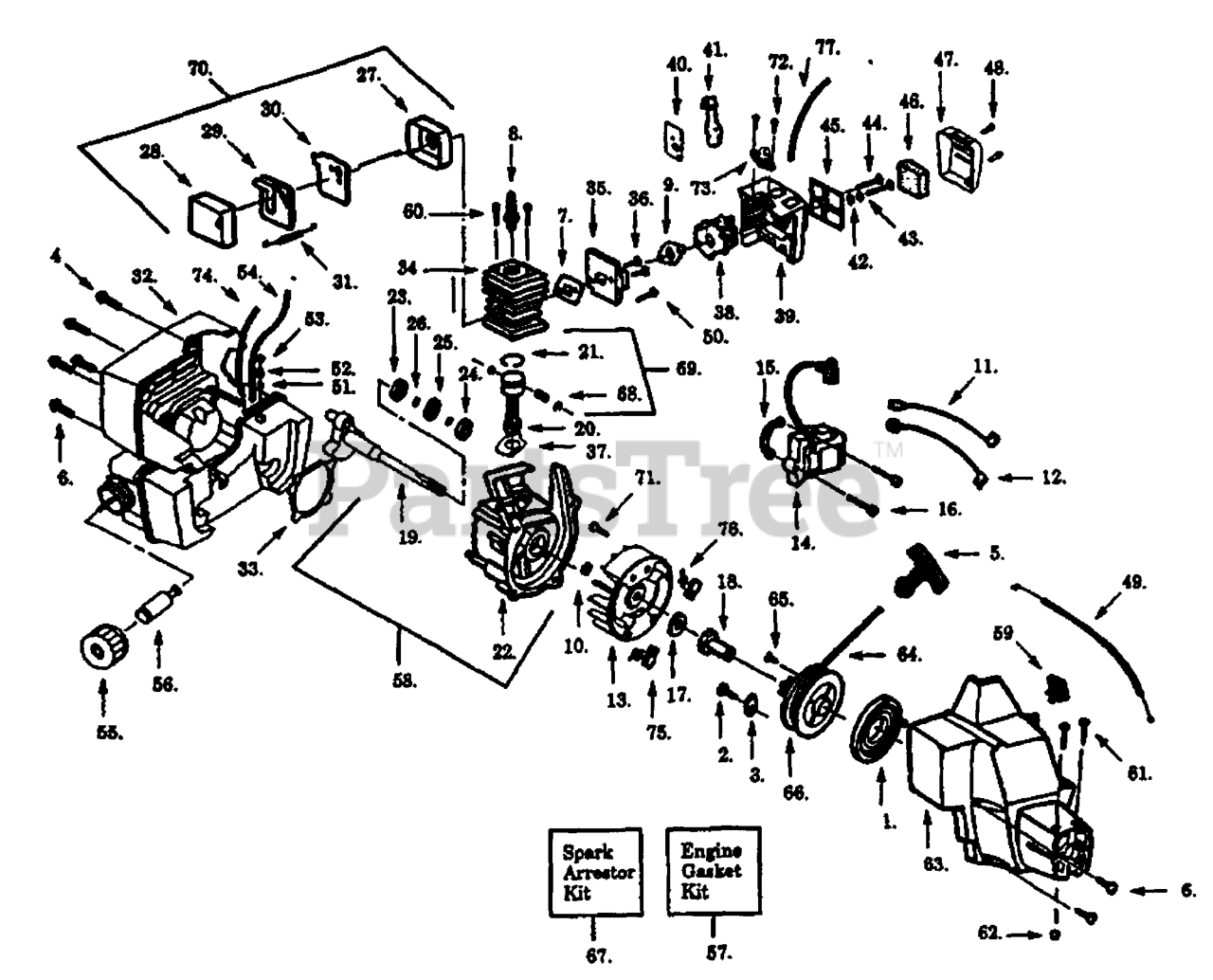

Engine Assembly Parts Diagram

  • Title

1

Husqvarna 530029395

starter spring
(Superseded to 545008010)

$7.49

$

In Stock, Qty 20+

0

2

Husqvarna 530015775

screw-pulley

$6.49

$

In Stock, only 2 left!

0

3

Husqvarna 530027523

Retainer-pulley

$7.49

$

In Stock, only 2 left!

0

4

Husqvarna 530015934

Screw-Shred/Fan Hsg.

$4.99

$

In Stock, only 1 left!

0

5

Husqvarna 530027569

Starter Handle

$6.49

$

In Stock, only 2 left!

0

6

Husqvarna 530015810

Screw-Fan Housing
(Superseded to 530016386)

$10.99

$

In Stock, Qty 9

0

7

Husqvarna 530019185

Gasket-Cylin./Carb
(Superseded to 530019233)

Note: Included in Engine Gasket Kit P/N 530069625

$3.99

$

In Stock, only 2 left!

0

8

Husqvarna 530030075

Spark Plug-RCJ-8Y

$

$

Not available

9

Husqvarna 530019194

Gasket-Carb.

Note: Included in Engine Gasket Kit P/N 530069625

$6.49

$

In Stock, Qty 5

0

10

Husqvarna 530015945

Retainer-Crankcase

$3.99

$

Usually ships in 3-10 days

0

11

Husqvarna 530014663

Lead Wire

$9.99

$

Usually ships in 3-10 days

0

12

Husqvarna 530014662

Ground Wire
(Superseded to 581425901)

$3.99

$

Usually ships in 3-10 days

0

13

Husqvarna 530039148

Flywheel
(Superseded to 545221701)

$13.99

$

In Stock, only 1 left!

0

14

Husqvarna 530039163

Ignition Module

$53.99

$

Usually ships in 3-10 days

0

15

Husqvarna 530036145

Spacer-Ignition Mod.

$3.99

$

In Stock, only 3 left!

0

16

Husqvarna 530015954

Straw-Ignition Mod.

$4.99

$

Usually ships in 3-10 days

0

17

Husqvarna 530015828

Washer-Flywheel

$4.99

$

In Stock, only 1 left!

0

18

Husqvarna 530027953

Drive coupling

$

$

Not available

19

Husqvarna 530014532

Cranshaft Ass'y.

$

$

Not available

20

Husqvarna 530069615

connecting Rod Ass'y

$24.99

$

Usually ships in 3-10 days

0

21

Husqvarna 530036404

Piston Ring

$

$

Not available

22

Husqvarna 530014861

Crankcase Ass'y. and 10 & 23-25

$

$

Not available

23

Husqvarna 530032125

Inner Bearing

$18.99

$

Usually ships in 3-10 days

0

24

Husqvarna 530032124

Outer Bearing

$7.49

$

Usually ships in 3-10 days

0

25

Husqvarna 530019179

C'case seal

$7.49

$

Usually ships in 3-10 days

0

26

Husqvarna 530015941

Retain. Ring-C'shaft

$4.99

$

Usually ships in 3-10 days

0

27

Husqvarna 530036578

Muffler Body

$4.99

$

Usually ships in 3-10 days

0

28

Husqvarna 530036577

Muffler Cover

$2.99

$

Usually ships in 3-10 days

0

29

Husqvarna 530038602

Muffler Baffle-Exit

$1.99

$

Usually ships in 3-10 days

0

30

Husqvarna 530036579

Muffler Baffle-First

$2.99

$

Usually ships in 3-10 days

0

31

Husqvarna 530029930

Muffler Spring
(Superseded to 530016197)

$4.99

$

In Stock, Qty 6

0

32

Husqvarna 530047325

Shroud & Tank Amy.

$

$

Not available

33

Husqvarna 530019181

Gasket-C'case

Note: Included in Engine Gasket Kit P/N 530069625

$6.49

$

In Stock, only 4 left!

0

34

Husqvarna 530069619

Cylinder
(Superseded to 530012353)

$

$

Not available

35

Husqvarna 530069564

Carb. Adaptor
(Superseded to 530069769)

$

$

Not available

36

Husqvarna 530016014

Straw-Carb. Adaptor

$6.49

$

In Stock, only 3 left!

0

37

Husqvarna 530019223

Gasket-Cylinder

Note: Included in Engine Gasket Kit P/N 530069625

$4.99

$

In Stock, Qty 6

0

38

Husqvarna 530069647

Carburetor w/Limiter Cap
(Superseded to 530071639)

$63.46

$

In Stock, only 1 left!

0

39

Husqvarna 530038944

Air Box

$3.49

$

Usually ships in 3-10 days

0

40

Husqvarna 530037326

Choke Plate

$

$

Not available

41

Husqvarna 530038102

Choke Shutter

$3.99

$

Usually ships in 3-10 days

0

42

Husqvarna 530015254

Wave Washer

$3.99

$

In Stock, only 2 left!

0

43

Husqvarna 530015852

Choke Spacer

$2.49

$

In Stock, only 1 left!

0

44

Husqvarna 530015887

Screw-Carb.

$4.99

$

In Stock, only 2 left!

0

45

Husqvarna 530037413

Filter Plate

$

$

Not available

46

Husqvarna 530037331

Air Filter Foam

$

$

Not available

47

Husqvarna 530037292

Air Filter Cover

$4.99

$

Usually ships in 3-10 days

0

48

Husqvarna 530015966

straw-Fdter cover
(Superseded to 530015957)

$4.99

$

In Stock, Qty 7

0

49

Husqvarna 530036744

Throttle Cable Ass'y
(Superseded to 530071548)

$

$

Not available

50

Husqvarna 530015814

Screw-Carb. Adaptor

$6.49

$

In Stock, Qty 20+

0

51

Husqvarna 530026119

Check Valve

$4.49

$

In Stock, Qty 14

0

52

Husqvarna 530029717

Element-Filter

$

$

Not available

53

Husqvarna 530029696

Retainer

$

$

Not available

54

Husqvarna 530069571

Fuel Line-Prim./Tnk

$6.49

$

In Stock, Qty 11

0

55

Husqvarna 530014347

Fuel Cap Ass'y.

$8.99

$

In Stock, Qty 5

0

56

Husqvarna 530014362

Fuel Pickup Ass'y.
(Superseded to 530095646)

$4.99

$

In Stock, Qty 20+

0

57

Husqvarna 530069625

Engine Gasket Kit
(Superseded to 530069616)

Note: (Includes Ref. no. 7, 9, 33, 37)

$9.99

$

Usually ships in 3-10 days

0

58

Husqvarna 530014729

C'case & C'shaft Ass'y.

Note: (Incl 10,19,22-26)

$

$

Not available

59

Husqvarna 530038114

Switch
(Superseded to 530071356)

$8.99

$

Usually ships in 3-10 days

0

60

Husqvarna 530015953

Screw-Cylinder

$6.49

$

In Stock, Qty 8

0

61

Husqvarna 530016072

Screw-Pinch Clamp

$3.99

$

Usually ships in 3-10 days

0

62

Husqvarna 530015768

Locknut-Pinch Clamp

$6.49

$

In Stock, only 2 left!

0

63

Husqvarna 530069675

Fan Housing/Shroud Ass'y.

$12.99

$

Usually ships in 3-10 days

0

64

Husqvarna 530069232

Rope Kit

$7.49

$

In Stock, Qty 20+

0

65

Husqvarna 530016080

Screw-Rope Retain.

$6.49

$

In Stock, Qty 11

0

66

Husqvarna 530066400

Starter Pulley

Note: (Incl. 65)

$

$

Currently unavailable

67

Husqvarna 530069380

Spark Arrestor Kit

$6.49

$

Usually ships in 3-10 days

0

68

Husqvarna 530015162

Piston Pin Retainer

$6.49

$

Usually ships in 3-10 days

0

69

Husqvarna 530069621

Piston Kit

Note: (Incl. 21,68 & Pin)

$36.99

$

Usually ships in 3-10 days

0

70

Husqvarna 530069660

Muffler Kit

$15.99

$

Usually ships in 3-10 days

0

71

Husqvarna 530015882

Screw-Flywheel

$

$

Not available

72

Husqvarna 530016090

Screw-Primer Ass'y
(Superseded to 530015780)

$6.49

$

In Stock, only 3 left!

0

73

Husqvarna 530037972

Primer Bulb Ass'y.
(Superseded to 530038874)

$8.99

$

Usually ships in 3-10 days

0

74

Husqvarna 530069247

Fuel Line-Carb./Tank

$6.49

$

In Stock, Qty 20+

0

75

Husqvarna 530029939

Starter Dog

$

$

Not available

76

Husqvarna 530037730

Starter Dog Spring
(Superseded to 530047570)

$3.99

$

Usually ships in 3-10 days

0

77

Husqvarna 530069216

Fuel Line-Carb./Prim

$6.49

$

In Stock, Qty 20+

0
