21 XP (31A-2M1E897) - Columbia 21" Snow Thrower (2011) 161-JWA-11 Carburetor Parts Diagram

21" Snow Thrower

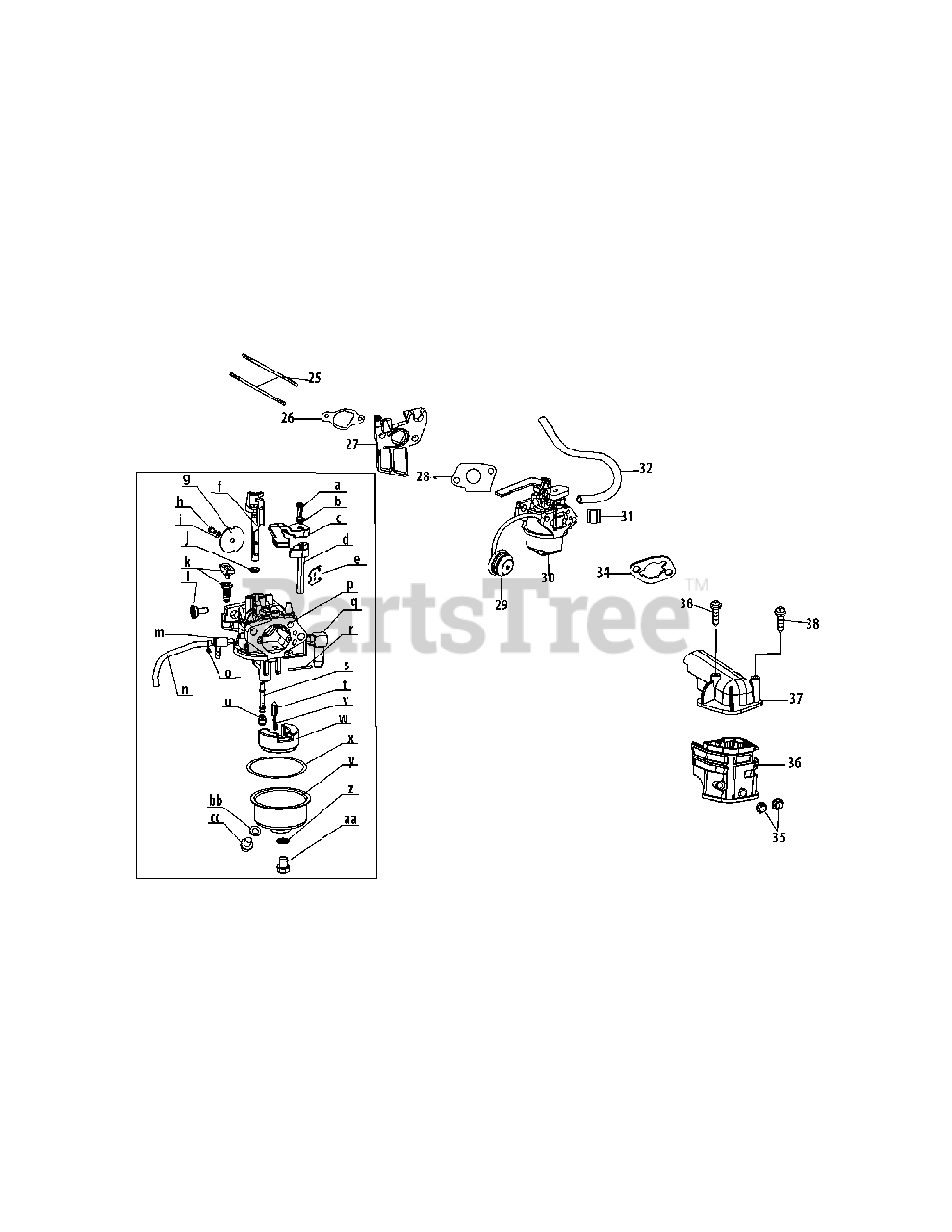

161-JWA-11 Carburetor Parts Diagram

  • Title

25

White Outdoor 710-04909

Stud, M6×113, Intake

$4.49

$

Usually ships in 3-6 days

0

26

White Outdoor 951-12610

Carburetor Insulator Gskt
(Superseded to 951-12610B)

$5.49

$

In Stock, Qty 5

0

27

White Outdoor 951-12611

Carburetor Insulator

$5.99

$

In Stock, only 1 left!

0

28

White Outdoor 951-11569A

Packing
(Superseded to 751P12005A)

$5.99

$

Usually ships in 3-6 days

0

29

White Outdoor 951-10639A

Primer Bulb

$

$

Not available

30

White Outdoor 951-12612

Carburetor Assy
(Superseded to 951-12612A)

$116.99

$

In Stock, Qty 5

0

31

White Outdoor 951-11700

Fuel Hose Clamp
(Superseded to 951-11700A)

$4.49

$

In Stock, Qty 7

0

32

White Outdoor 951-12613

Fuel Line

$13.99

$

In Stock, only 1 left!

0

34

White Outdoor 951-11571

Gasket, Intake

$5.99

$

In Stock, only 3 left!

0

35

White Outdoor 712-04212

Nut, Flange, M6
(Superseded to 712-05015)

$6.99

$

In Stock, Qty 18

0

36

White Outdoor 951-10962

Base, Heater Box

$25.99

$

In Stock, only 2 left!

0

37

White Outdoor 951-10961

Heater Box

$17.99

$

In Stock, only 1 left!

0

38

White Outdoor 710-05275

Self-Tapping Screw

$4.49

$

In Stock, Qty 8

0

a

n/a

Screw M3×10

$

$

Not available

b

n/a

Washer

$

$

Not available

c

n/a

Choke Knob

$

$

Not available

d

n/a

Choke Shaft

$

$

Not available

e

n/a

Choke Plate

$

$

Not available

f

n/a

Throttle Shaft

$

$

Not available

g

n/a

Throttle Plate

$

$

Not available

h

n/a

Screw M3×5

$

$

Not available

i

n/a

Lock Washer

$

$

Not available

j

n/a

Gasket, Throttle Plate

$

$

Not available

k

n/a

Idle Jet Assembly

$

$

Not available

l

n/a

Idle Speed Adjusting Screw

$

$

Not available

m

n/a

Primer Barb

$

$

Not available

n

White Outdoor 951-12019

Primer Hose
(Superseded to 951-12019A)

$7.49

$

In Stock, only 1 left!

0

o

White Outdoor 951-11906

Hose Clamp

$4.49

$

In Stock, only 2 left!

0

p

n/a

Carburetor Body

$

$

Not available

q

n/a

Barb

$

$

Not available

r

n/a

Float Pin

$

$

Not available

s

n/a

Emulsion Tube

$

$

Not available

t

n/a

Needle Valve

$

$

Not available

u

n/a

Main Jet

$

$

Not available

v

n/a

Needle Valve Spring

$

$

Not available

w

n/a

Float

$

$

Not available

x

White Outdoor 951-11589

Fuel Bowl Gasket
(Superseded to 951-11589A)

$7.49

$

In Stock, Qty 20+

0

y

n/a

Fuel Bowl

$

$

Not available

z

White Outdoor 951-11348

Fuel Bowl Gasket
(Superseded to 951-11348A)

$6.49

$

In Stock, Qty 20+

0

aa

White Outdoor 710-04945

Fuel Bowl Mounting Bolt

$4.49

$

In Stock, only 4 left!

0

bb

White Outdoor 951-11349

Fuel Drain Plug Gasket
(Superseded to 951-11349A)

$4.49

$

In Stock, Qty 20+

0

cc

White Outdoor 710-04938

Fuel Drain Plug

$4.49

$

In Stock, Qty 5

0

White Outdoor 951-12623

Carburetor Repair Kit - Major

Note: (Incl.j,k,l,r,s,t,u,v,w,x,z,), not shown

$68.99

$

Usually ships in 3-6 days

0
