21 XP (31A-2M1E897) - Columbia 21" Snow Thrower (2011) 161-JWA-11 Flywheel & Recoil Starter Parts Diagram

21" Snow Thrower

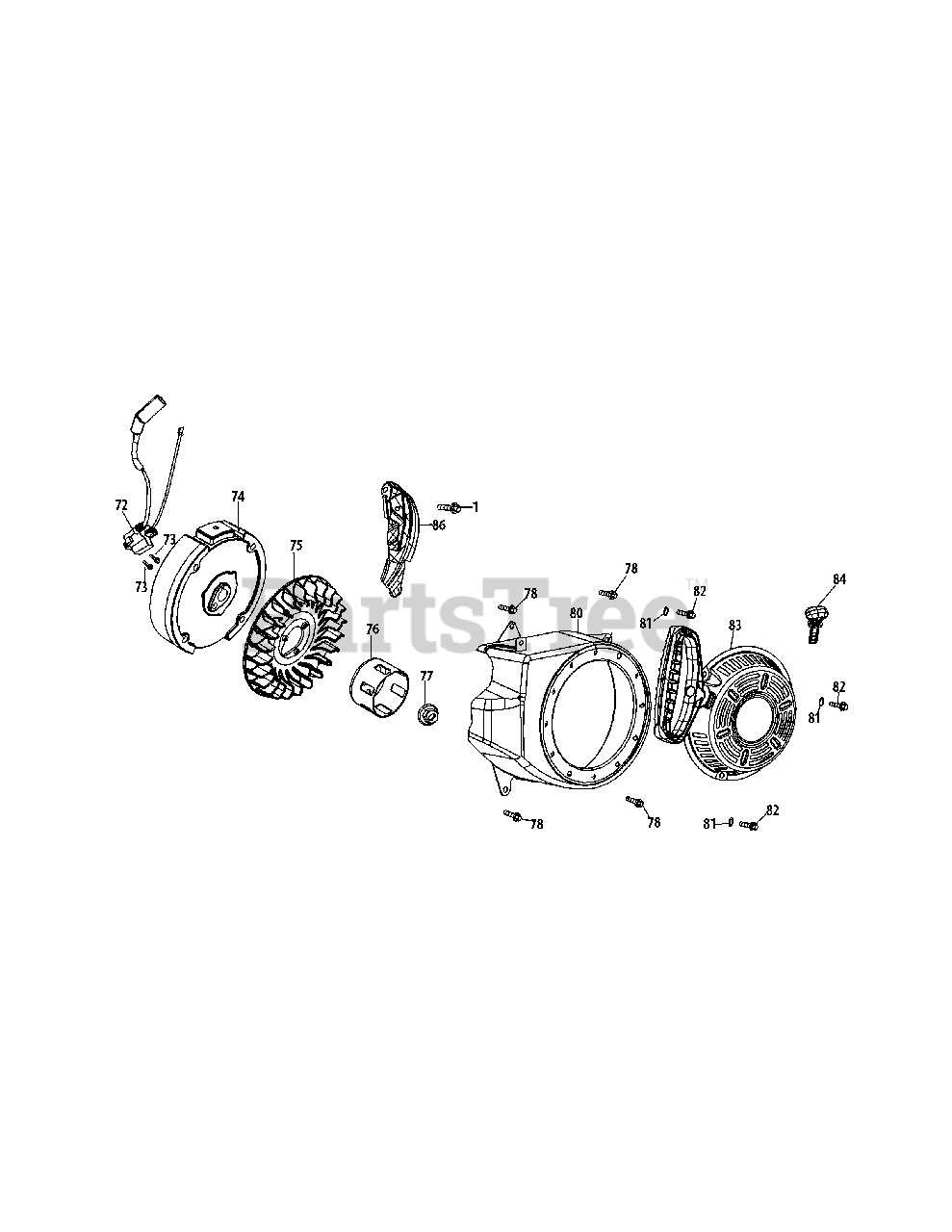

161-JWA-11 Flywheel & Recoil Starter Parts Diagram

  • Title

1

White Outdoor 710-04968

Boltm6×16

$6.49

$

In Stock, only 3 left!

0

72

White Outdoor 951-10958

Ignition Module

$

$

Not available

73

White Outdoor 710-04919

Bolt, Flange, M6×25

$4.49

$

Usually ships in 3-6 days

0

74

White Outdoor 951-10908

Flywheel

$104.99

$

Usually ships in 3-6 days

0

75

White Outdoor 951-10910

Fan, Flywheel

$47.99

$

Usually ships in 3-6 days

0

76

White Outdoor 951-10911

Cup, Starter

$16.99

$

Usually ships in 3-6 days

0

77

White Outdoor 712-04209

Nut M14×1.5
(Superseded to 712-04287)

$6.49

$

In Stock, only 1 left!

0

78

White Outdoor 710-04916

Bolt M6×14

$4.49

$

In Stock, only 2 left!

0

80

White Outdoor 951-11107

Blower Housing

$29.99

$

Usually ships in 3-6 days

0

81

White Outdoor 736-04455

Gasket 6
(Superseded to 736-04455B)

$6.49

$

Usually ships in 3-6 days

0

82

White Outdoor 710-04974

Bolt M6×10

$6.49

$

In Stock, only 2 left!

0

83

White Outdoor 951-10955

Starter, Recoil

$71.99

$

In Stock, Qty 7

0

84

White Outdoor 731-05632

Key
(Superseded to 951-10630)

$6.49

$

In Stock, Qty 18

0

86

White Outdoor 951-11102

Flywheel Baffle

$3.49

$

Usually ships in 3-6 days

0
