21 XP (31A-2M1E897) - Columbia 21" Snow Thrower (2011) Handle & Chute Parts Diagram

21" Snow Thrower

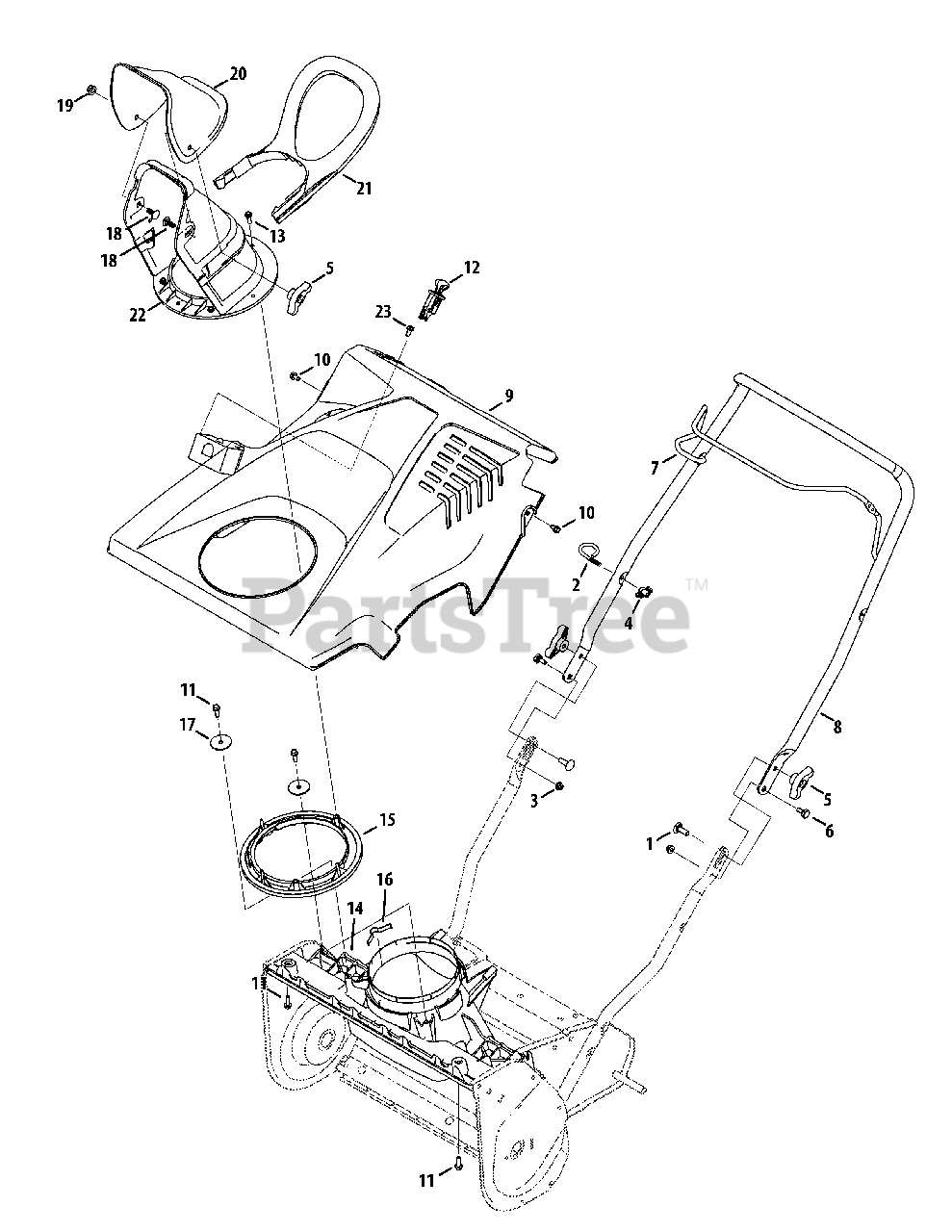

Handle & Chute Parts Diagram

  • Title

1

White Outdoor 710-04998

Carriage Bolt 5/16-18 x 1.0

$5.99

$

In Stock, Qty 20+

0

2

White Outdoor 710-05348

Eyebolt

$3.99

$

In Stock, Qty 6

0

3

White Outdoor 712-04064

Hex L-Flanged Nut 1/4-20 Gr. F Nylon

$4.49

$

In Stock, Qty 20+

0

4

White Outdoor 720-0279

Handle Knob, 1/4-20

$4.99

$

In Stock, Qty 15

0

5

White Outdoor 720-04122

Wing Knob

$7.49

$

In Stock, Qty 20+

0

6

White Outdoor 738-04419A

Shoulder Screw 1/4-20 x .375 x .148

$4.49

$

In Stock, Qty 20+

0

7

White Outdoor 747-05327B-0637

Auger Control
(Superseded to 747-05327C-0637)

Note: Model 31AS2T5 Only

$17.99

$

Usually ships in 3-6 days

0

7

White Outdoor 747-05490-0637

Auger Control
(Superseded to 747-05490A-0637)

$15.99

$

In Stock, only 2 left!

0

8

White Outdoor 749-04703B-0637

Upper Handle
(Superseded to 749-04703D-0637)

Note: Model 31AS2T5 Only

$49.99

$

Usually ships in 3-6 days

0

8

White Outdoor 749-04808-0637

Upper Handle

$28.99

$

In Stock, only 1 left!

0

9

White Outdoor 931-04583

Cover Assembly (Black, w/o electric start)
(Superseded to 753-06902D)

$114.99

$

In Stock, only 3 left!

0

9

White Outdoor 631-04582

Cover Assembly (Black, w/elect. start)
(Superseded to 753-06901C)

Note: Model with electric start

$68.99

$

Usually ships in 3-6 days

0

9

White Outdoor 631-04588

Cover Assembly (Grey w/elect. Start)
(Superseded to 753-06901C)

Note: Model with electric start

$68.99

$

Usually ships in 3-6 days

0

10

White Outdoor 710-0599

Hex Wash S-Tapp Scr 1/4-20 x .50

$4.49

$

In Stock, Qty 20+

0

11

White Outdoor 710-0895

Hex Tapp Scr 1/4 x .75" Lg.

$6.99

$

In Stock, Qty 20+

0

12

White Outdoor 925-04031A

Ignition Switch
(Superseded to 951-10637)

$15.99

$

In Stock, only 2 left!

0

12

White Outdoor 951-10630

Key

$6.99

$

In Stock, Qty 6

0

13

White Outdoor 710-05108

Hex Washer Screw, 1/4-20

$3.99

$

In Stock, Qty 13

0

14

White Outdoor 931-07626A

Chute Adapter
(Superseded to 931-07626B)

$44.99

$

Usually ships in 3-6 days

0

15

White Outdoor 731-08274

Chute Ring

$13.99

$

Usually ships in 3-6 days

0

16

White Outdoor 932-04111

Chute Adjustment Spring

$4.99

$

In Stock, Qty 16

0

17

White Outdoor 736-04576

Flat Washer .28 x 1.51 x .06

$4.49

$

Usually ships in 3-6 days

0

18

White Outdoor 710-0451

Carriage Bolt 5/16-18 x .7

$4.49

$

In Stock, Qty 20+

0

19

White Outdoor 712-04063

Flange Locknut 5/16-18 Gr. F, Nylon

$4.49

$

In Stock, Qty 20+

0

20

White Outdoor 731-04354B

Upper Chute

$16.99

$

Usually ships in 3-6 days

0

21

White Outdoor 731-07644

Chute Handle

$27.99

$

In Stock, only 2 left!

0

22

White Outdoor 931-07753A

Lower Chute 5" Dia

$37.99

$

In Stock, only 2 left!

0

23

White Outdoor 710-04187

Hex Washer Screw, 1/4-15 x .50
(Superseded to 710-04187A)

$7.49

$

In Stock, Qty 20+

0
