21 XPL (31AM2T6D897) - Columbia 21" Snow Thrower (2015) Shroud, Chute & Handle Parts Diagram

21" Snow Thrower

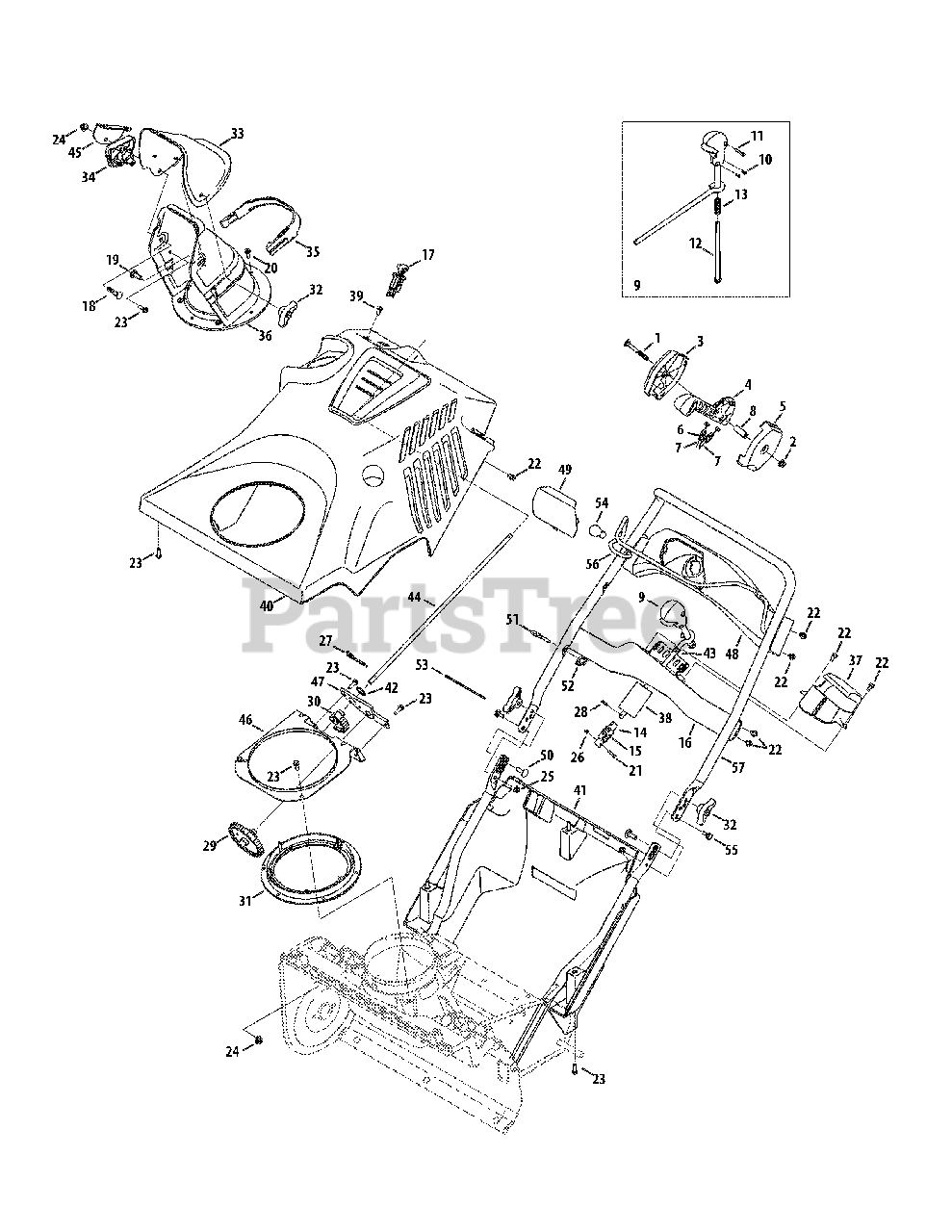

Shroud, Chute & Handle Parts Diagram

  • Title

1

MTD 710-05163

Carriage Bolt, 5/16-18 x 2.5

$3.99

$

Usually ships in 3-6 days

0

2

MTD 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

3

MTD 731-07651

Chute Control Panel

$8.99

$

In Stock, Qty 9

0

4

MTD 731-07654B

Cable Handle Guide

$15.99

$

Usually ships in 3-6 days

0

5

MTD 731-07656A

Chute Control Panel, Inner

$8.49

$

In Stock, Qty 6

0

6

MTD 731-07868

Cable Clip

$3.49

$

In Stock, only 1 left!

0

7

MTD 946-04722

Cable

$26.99

$

In Stock, Qty 9

0

8

MTD 750-05414A

Spacer, .325 ID x .496 OD x 1.34

$2.99

$

Usually ships in 3-6 days

0

9

MTD 631-04526P

Chute Control Assembly

$86.99

$

In Stock, only 1 left!

0

10

MTD 710-04352

Screw, #6 x .375

$3.99

$

Usually ships in 3-6 days

0

11

MTD 710-04353

Screw, #8 x 1.00

$6.49

$

Usually ships in 3-6 days

0

12

MTD 731-08018

Chute Rod

$8.49

$

In Stock, only 1 left!

0

13

MTD 732-04789

Spring, .460 OD x 1.469

$2.99

$

Usually ships in 3-6 days

0

14

MTD 684-04350

Joint Block Assembly

$26.99

$

In Stock, only 4 left!

0

15

MTD 715-0150

Roll Pin, 3/16 Dia. x 1.1 LG.

$3.99

$

In Stock, Qty 20+

0

16

MTD 684-04383-0637

Indicator Bracket Assembly

$96.99

$

Usually ships in 3-6 days

0

17

MTD 925-04031B

Ignition Switch Assembly

$38.99

$

Usually ships in 3-6 days

0

18

MTD 710-0262

Carriage Bolt, 5/16-18 x 1.00

$3.99

$

In Stock, Qty 14

0

19

MTD 710-0451

Carriage Bolt, 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

20

MTD 710-05108

Hex Washer Screw, 1/4 x .750

$3.49

$

In Stock, Qty 20+

0

21

MTD 710-05179A

Screw, #8-32 x .875

$4.49

$

Usually ships in 3-6 days

0

22

MTD 710-1652

Hex Washer Screw, 1/4-20 x .625

$3.99

$

In Stock, Qty 20+

0

23

MTD 710-0895

Screw, Hi-Lo:1/4-15, 0.75

$5.99

$

In Stock, Qty 20+

0

24

MTD 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

25

MTD 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

26

MTD 712-04035

Hex Lock Nut, #8-32

$3.99

$

Usually ships in 3-6 days

0

27

MTD 714-04003

Cotter Pin

$7.99

$

Usually ships in 3-6 days

0

28

MTD 715-04095

Pin, .156 x .875

$4.99

$

In Stock, only 2 left!

0

29

MTD 717-04941

Bevel Gear, 40T/11T

$17.99

$

Usually ships in 3-6 days

0

30

MTD 717-04940

Spur Gear, 35T

$12.99

$

Usually ships in 3-6 days

0

31

MTD 917-04844B

Bevel Gear, 95T

$32.99

$

Usually ships in 3-6 days

0

32

MTD 720-04122

Wing Knob, 5/16-18

$6.49

$

In Stock, Qty 20+

0

33

MTD 931-04425B

Upper Chute

$21.99

$

Usually ships in 3-6 days

0

34

MTD 731-06451

Cable Guide

$4.99

$

In Stock, only 1 left!

0

35

MTD 731-07708

Chute Plug

$12.99

$

Usually ships in 3-6 days

0

36

MTD 931-07753A

Lower Chute

$32.99

$

Usually ships in 3-6 days

0

37

MTD 731-07957

Chute Cover

$11.99

$

Usually ships in 3-6 days

0

38

MTD 720-04174

Grip, 1.18 x 3.33

$8.49

$

Usually ships in 3-6 days

0

39

MTD 710-04187A

Hex Washer Screw, 1/4-15 x .50

$6.49

$

In Stock, Qty 10

0

40

MTD 753-06908

Top Cover
(Superseded to 753-06908A)

$65.99

$

Usually ships in 3-6 days

0

41

MTD 731-07725B

Bottom Cover

$52.99

$

In Stock, only 2 left!

0

42

MTD 736-04161

Flat Washer, .75 x 1.00 x .06

$6.49

$

In Stock, only 2 left!

0

43

MTD 941-0475

Plastic Bushing, .380 ID

$3.99

$

In Stock, Qty 20+

0

44

MTD 747-05299A

Chute Rod

$14.99

$

Usually ships in 3-6 days

0

45

MTD 784-5594-0637

Cable Bracket

$10.99

$

In Stock, only 1 left!

0

46

MTD 790-00471

Gear Retainer Bracket

$19.99

$

Usually ships in 3-6 days

0

47

MTD 790-00416

Gear Mounting Plate

$5.49

$

Usually ships in 3-6 days

0

48

MTD 931-04504

Handle Panel Assembly

$50.99

$

Usually ships in 3-6 days

0

49

MTD 731-07784

Handle Panel Lens

$9.99

$

Usually ships in 3-6 days

0

50

MTD 710-04998

Carriage Screw, 5/16-18 x 1.00

$5.49

$

In Stock, Qty 20+

0

51

MTD 710-05348

Eye Bolt, 1/4-20

$3.49

$

In Stock, only 1 left!

0

52

MTD 720-0279

Handle Knob, 1/4-20

$4.49

$

In Stock, Qty 20+

0

53

MTD 725-0157

Cable Tie

$3.49

$

In Stock, only 4 left!

0

54

MTD 925-1629

Lamp

$10.99

$

In Stock, Qty 14

0

55

MTD 738-04419A

Shoulder Screw, .375 x .148 x 1/4-20

$3.99

$

In Stock, Qty 20+

0

56

MTD 747-05327C-0637

Auger Bail

$15.99

$

In Stock, only 1 left!

0

57

MTD 749-04693B-0637

Upper Handle

$41.99

$

Usually ships in 3-6 days

0

MTD 925-04139

Harness Assembly

Note: (Not Shown)

$21.99

$

Usually ships in 3-6 days

0
