21 XPL (31AM2T6D897) - Columbia 21" Snow Thrower (2017) Chute Parts Diagram

21" Snow Thrower

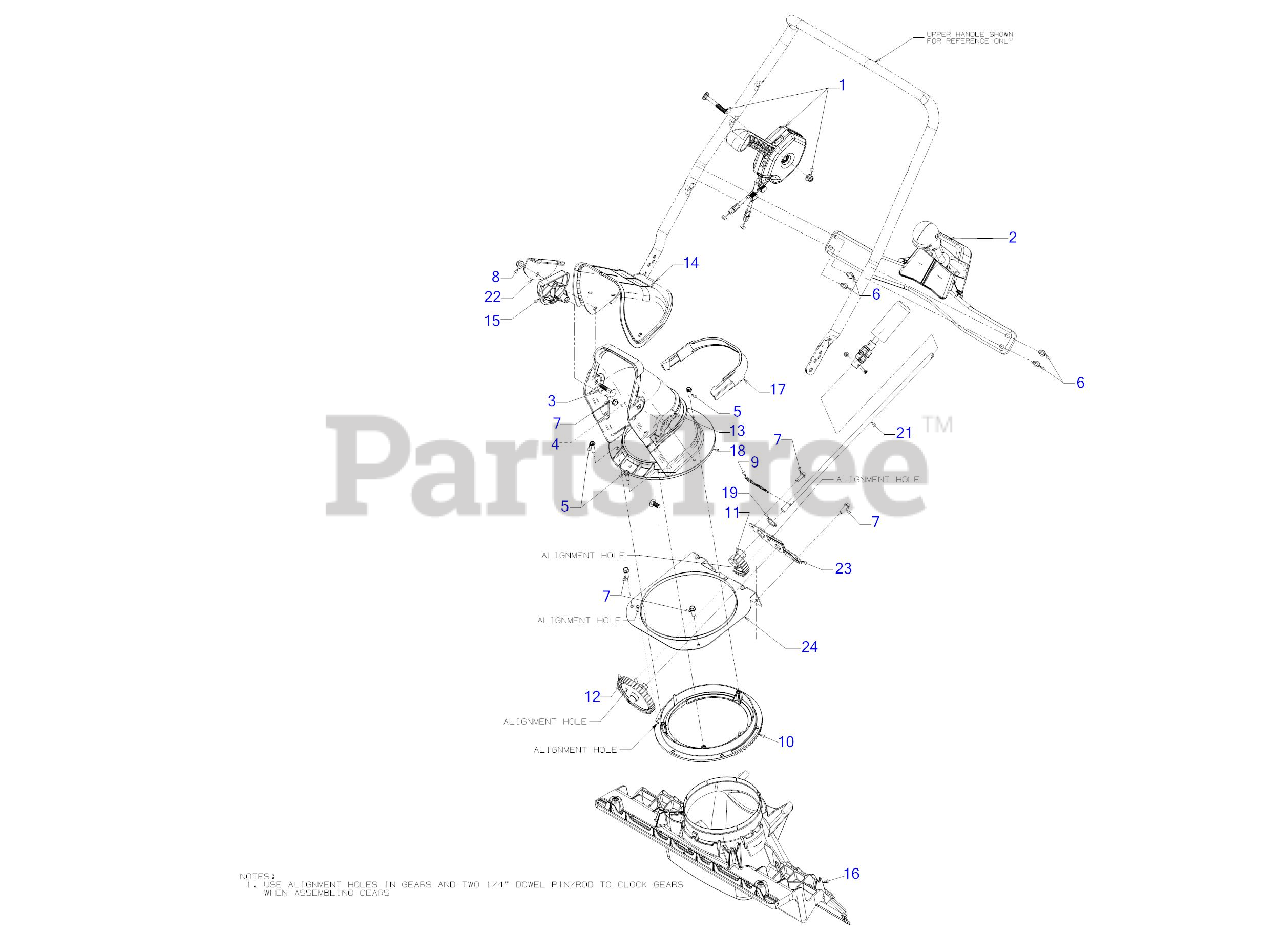

Chute Parts Diagram

  • Title

1

See Chute Tilt Control Breakdown

$

$

Not available

2

MTD 684-04401

CHUTE ROTATION HANDLE ASSEMBLY
(Superseded to 984-04401)

Note: (See Separate Breakdown)

$147.99

$

Usually ships in 3-6 days

0

3

MTD 710-0262

CARRIAGE BOLT 5/16-18 x 1.50

$3.99

$

In Stock, Qty 14

0

4

MTD 710-0451

CARRIAGE BOLT 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

5

MTD 710-05108

SCREW 1/4 x .750

$3.49

$

In Stock, Qty 20+

0

6

MTD 710-0599

SCREW 1/4-20 X.500

$3.99

$

In Stock, Qty 20+

0

7

MTD 710-0895

SCREW 1/4-15 x .750

$5.99

$

In Stock, Qty 20+

0

8

MTD 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

9

MTD 714-04003

COTTER PIN .125X2.

$7.99

$

Usually ships in 3-6 days

0

10

MTD 917-04844B

BEVEL GEAR 95T

$32.99

$

Usually ships in 3-6 days

0

11

MTD 717-04940

SPUR GEAR

$12.99

$

Usually ships in 3-6 days

0

12

MTD 717-04941

SPUR-GEAR 40T

$17.99

$

Usually ships in 3-6 days

0

13

MTD 720-04122

WING KNOB 5/16-18

$6.49

$

In Stock, Qty 20+

0

14

MTD 931-04425B

UPPER CHUTE

$21.99

$

Usually ships in 3-6 days

0

15

MTD 731-06451

CABLE CHUTE GUIDE

$4.99

$

In Stock, only 1 left!

0

16

MTD 931-07626B

CHUTE ADAPTER

$39.99

$

Usually ships in 3-6 days

0

17

MTD 731-07708

CHUTE PLUG

$12.99

$

Usually ships in 3-6 days

0

18

MTD 931-07753A

LOWER CHUTE 6.5

$32.99

$

Usually ships in 3-6 days

0

19

MTD 736-04161

FLAT WASHER .750X1.000X.060:HD

$6.49

$

In Stock, only 2 left!

0

21

MTD 747-05299A

LOWER CHUTE CRANK ROD

$14.99

$

Usually ships in 3-6 days

0

22

MTD 784-5594-0637

CABLE BRACKET

$10.99

$

In Stock, only 1 left!

0

23

MTD 790-00416

GEAR PLATE

$5.49

$

Usually ships in 3-6 days

0

24

MTD 790-00471

RETAIN GEAR BRACKET

$19.99

$

Usually ships in 3-6 days

0
